Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Chime System
>>
9C Chime Inoperative With Right Turn Signal on
9C Chime Inoperative With Right Turn Signal on

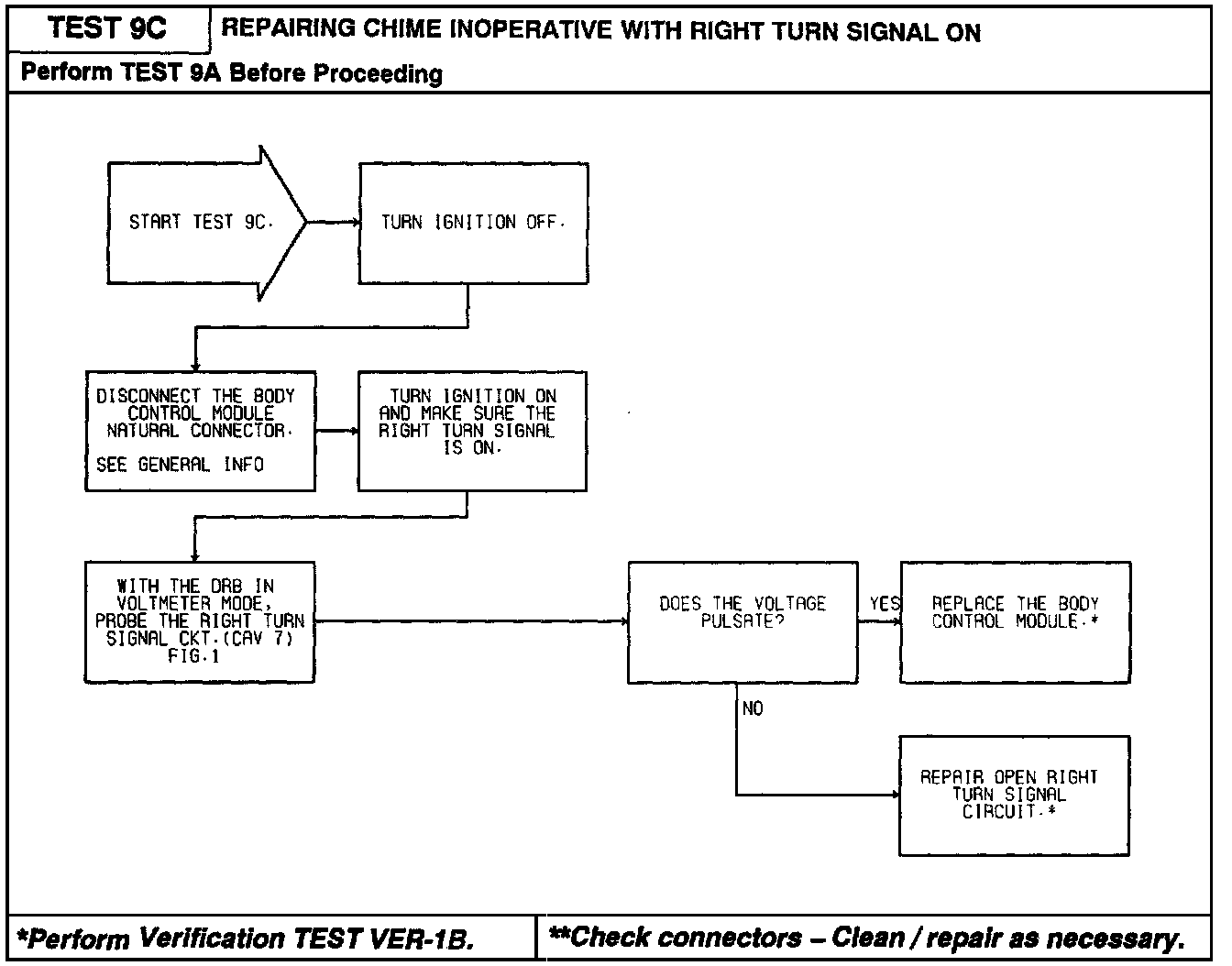

Diagnostic Chart:
Related Images:
