Home
>>
Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Chime System
>>
9A Chime Inoperative With Turn Signals on
9A Chime Inoperative With Turn Signals on

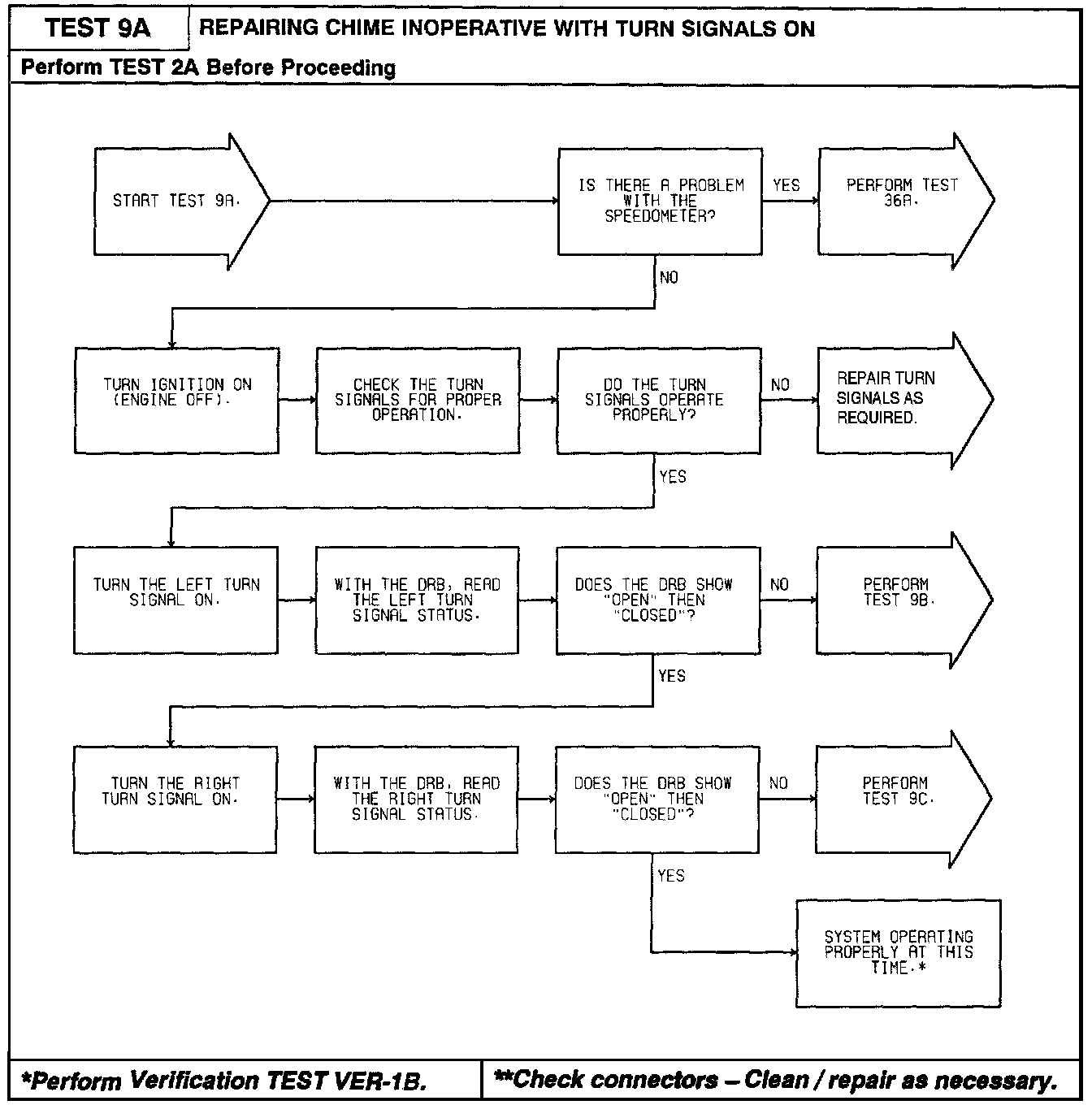

Diagnostic Chart:

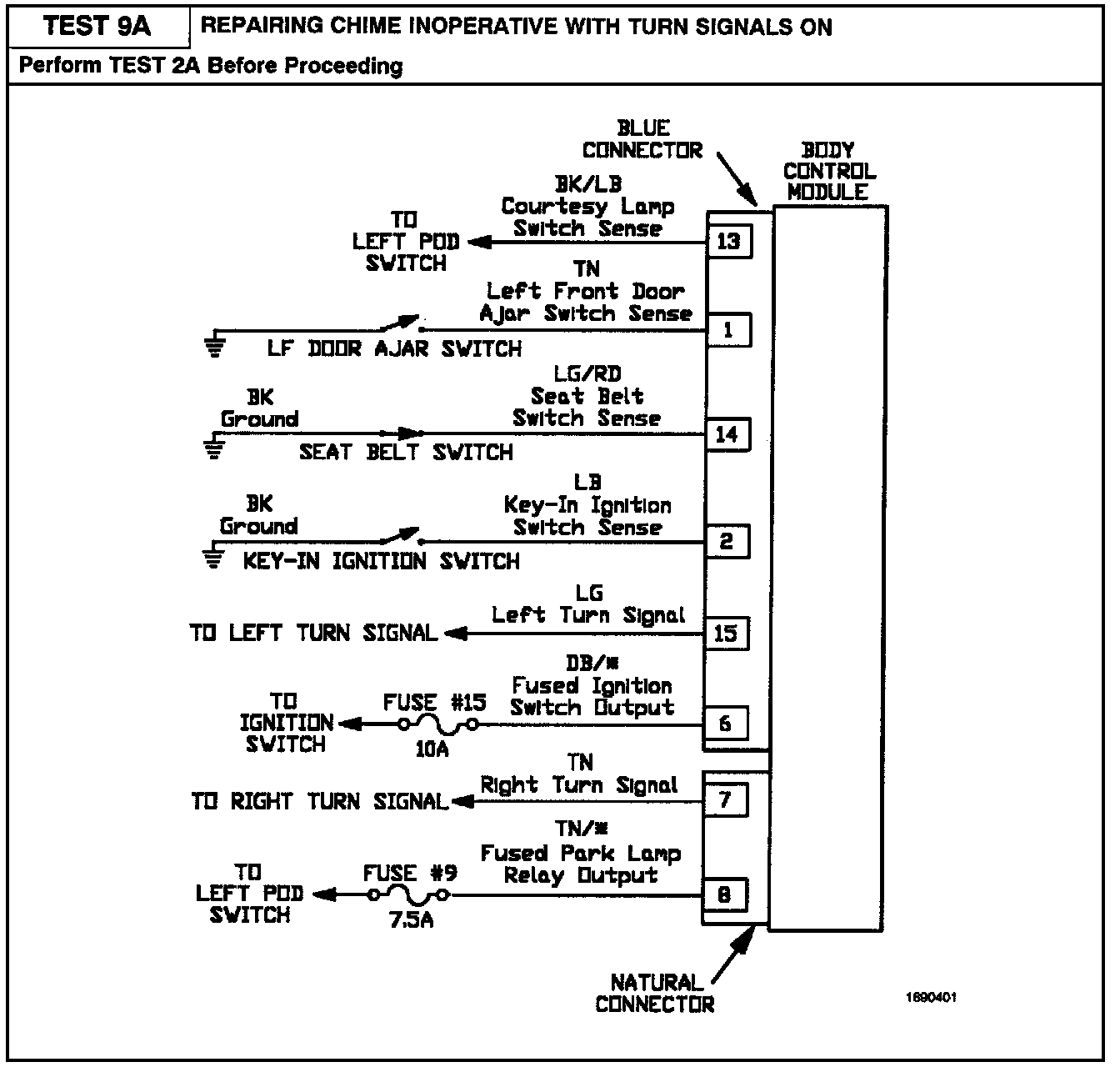

Related Images:
