FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Oil Pressure Sending Unit
>>

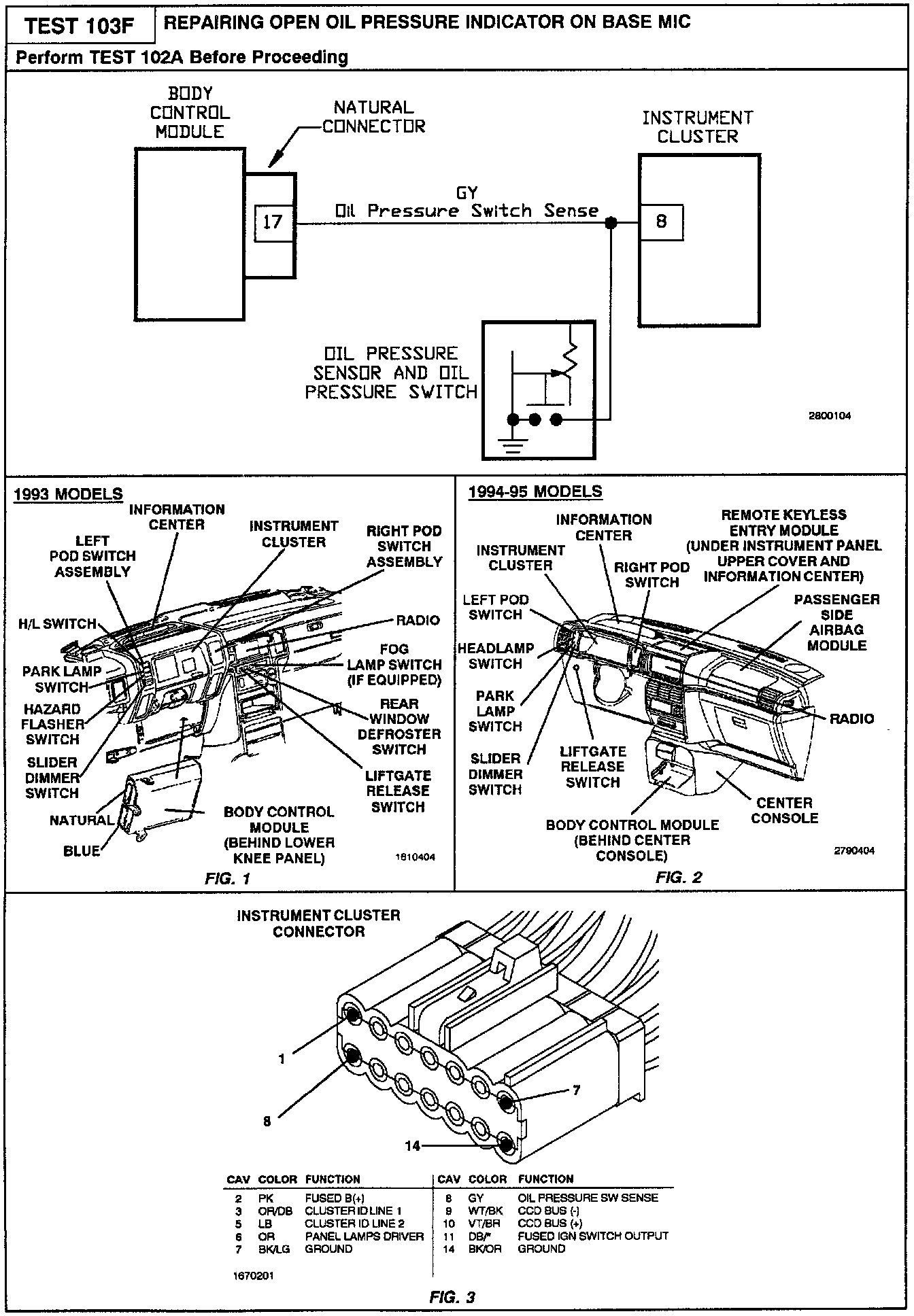

103F Open Oil Pressure Indicator on Base MIC
103F Open Oil Pressure Indicator on Base MIC

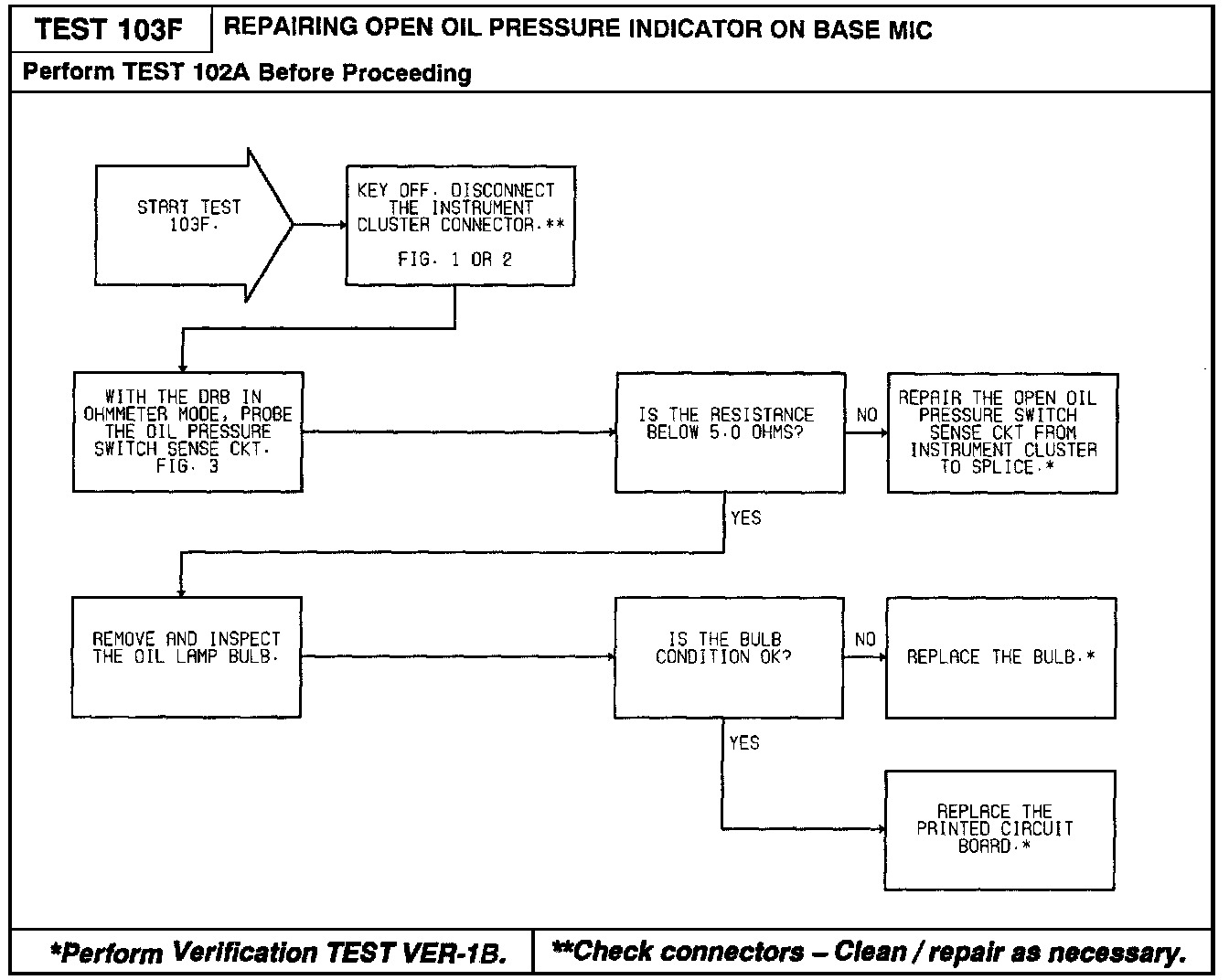

Diagnostic Chart:
Related Images:
