Home
>>
Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Electro/Mechanical Instrument Cluster
>>

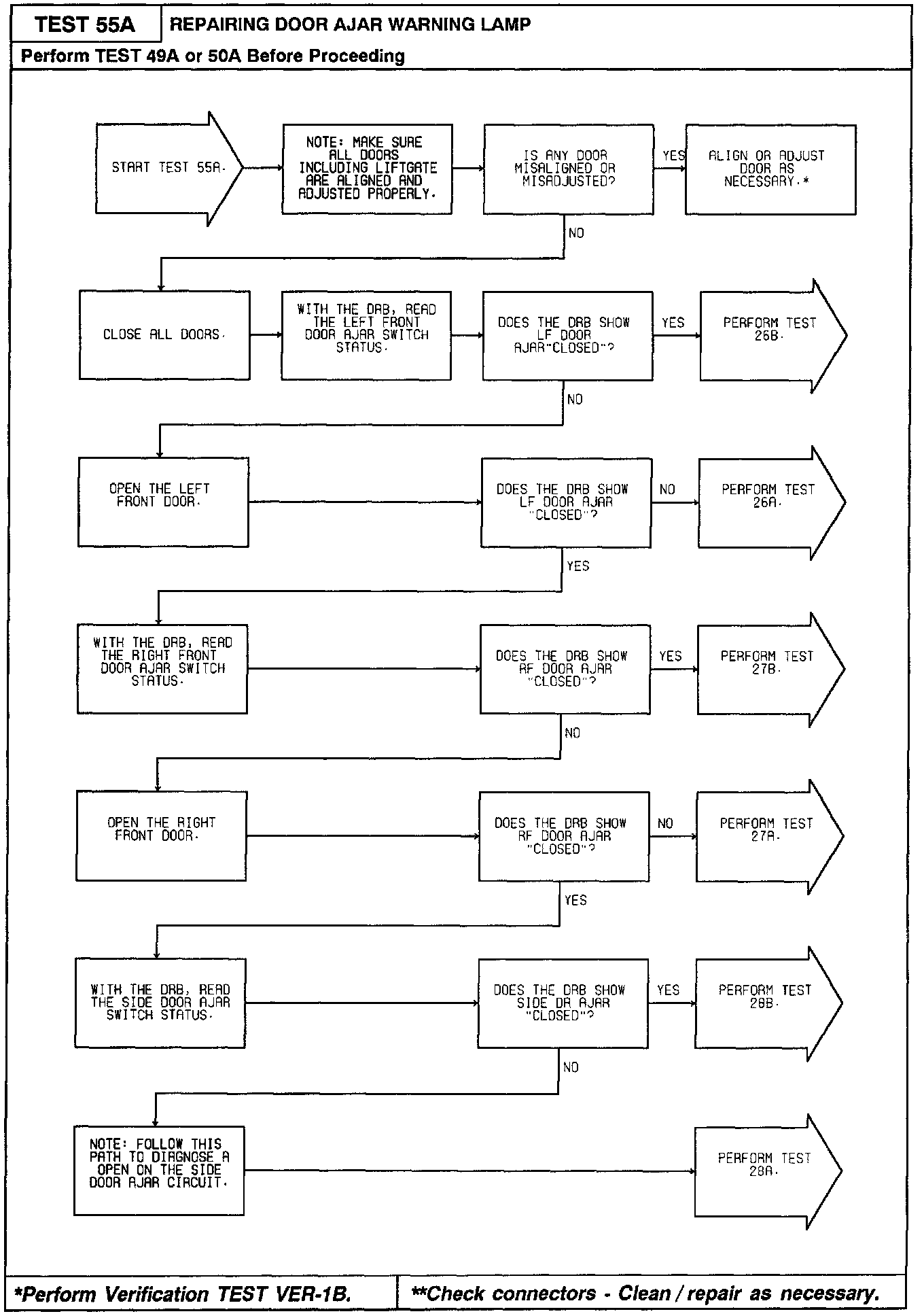

55A Door Ajar Warning Lamp
55A Door Ajar Warning Lamp
Diagnostic Chart:
