Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 9A Repairing Code One Front Sensor Open >> Part 2 of 2

Part 2 of 2

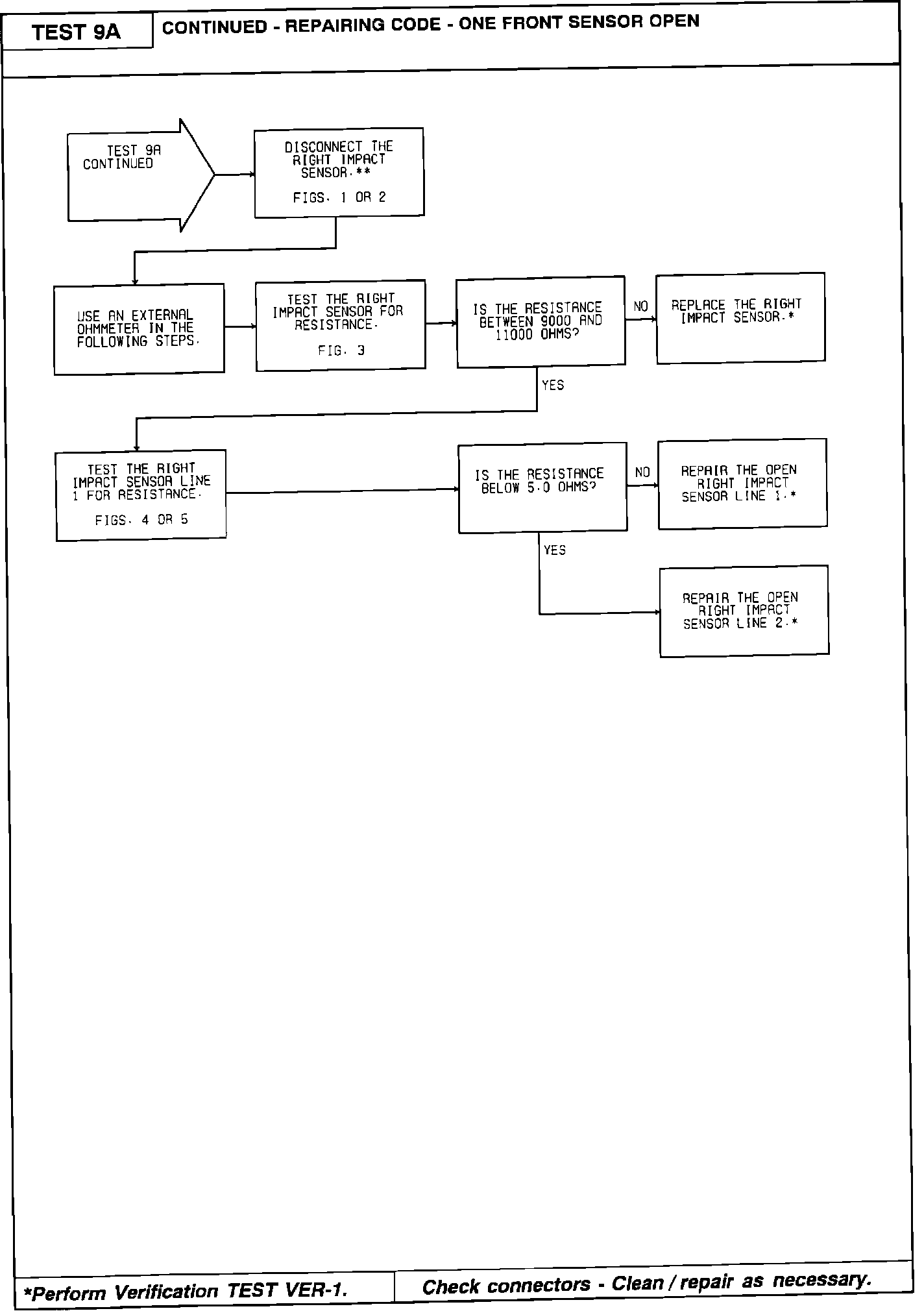

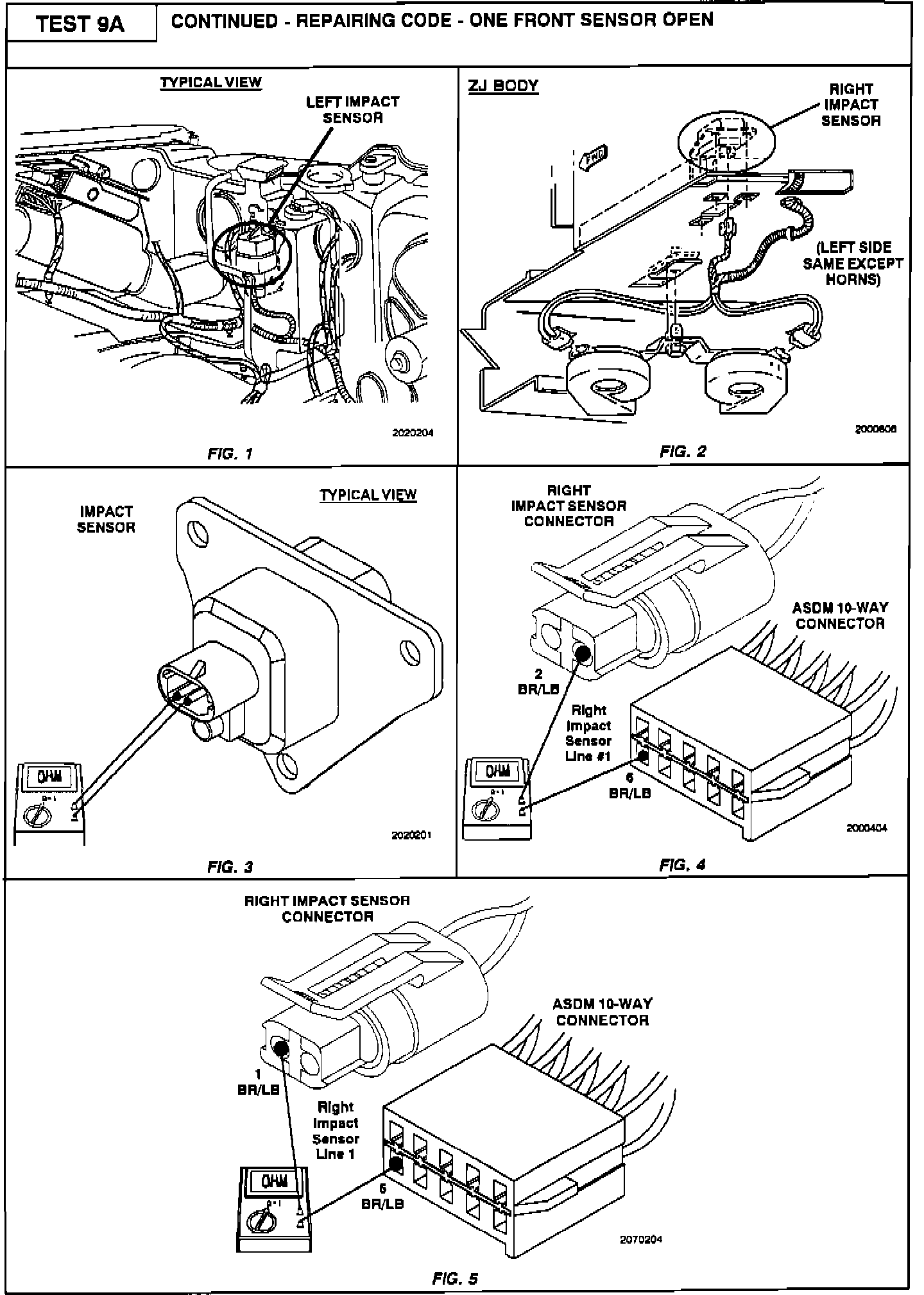

Test 9A - Repairing Code - One Front Sensor Open (Part 2 Of 2):



Test 9A - Repairing Code - One Front Sensor Open (Part 2 Of 2):
