Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 9A Repairing Code One Front Sensor Open >> Part 1 of 2

Part 1 of 2

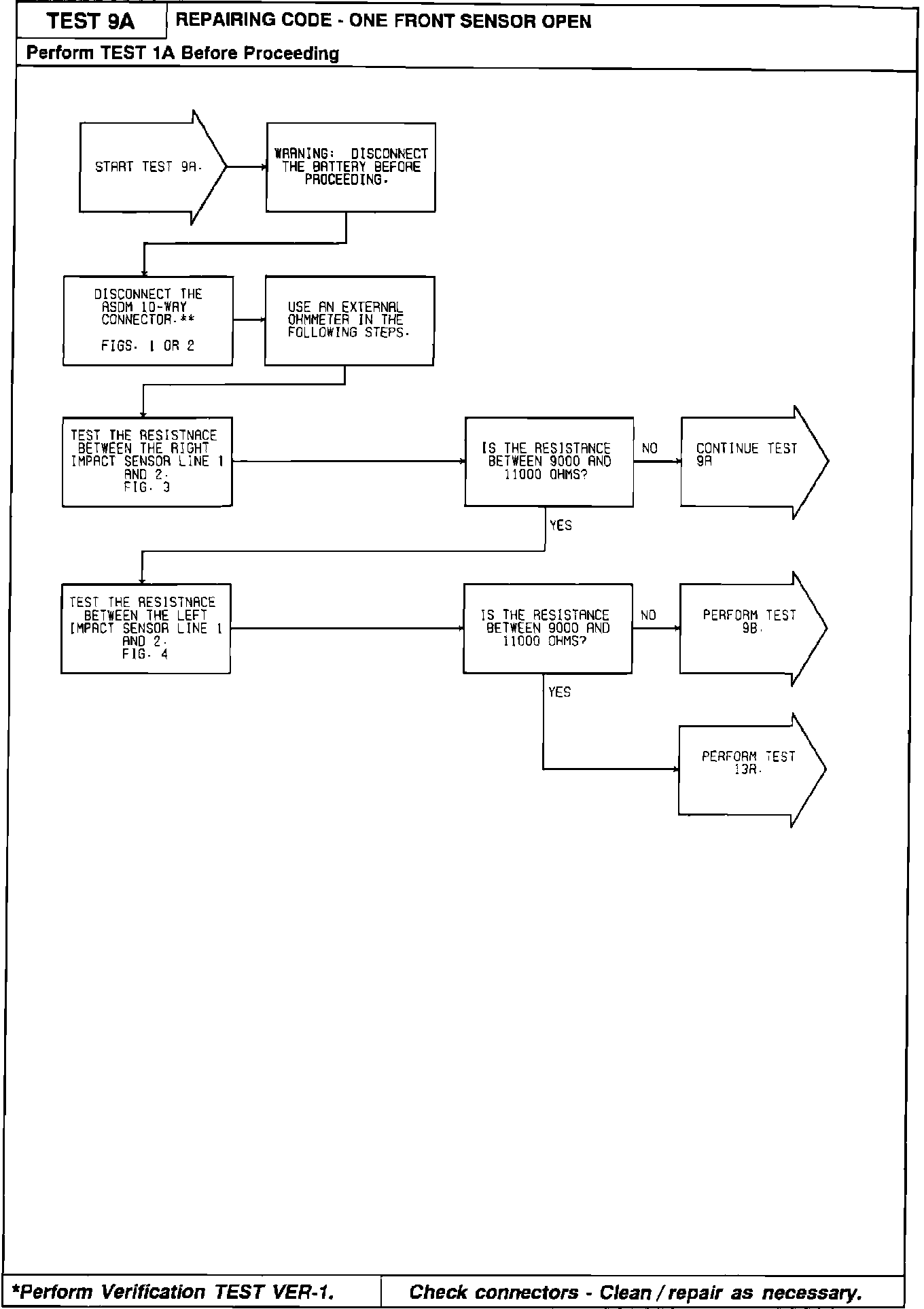

Test 9A - Repairing Code - One Front Sensor Open (Part 1 Of 2):

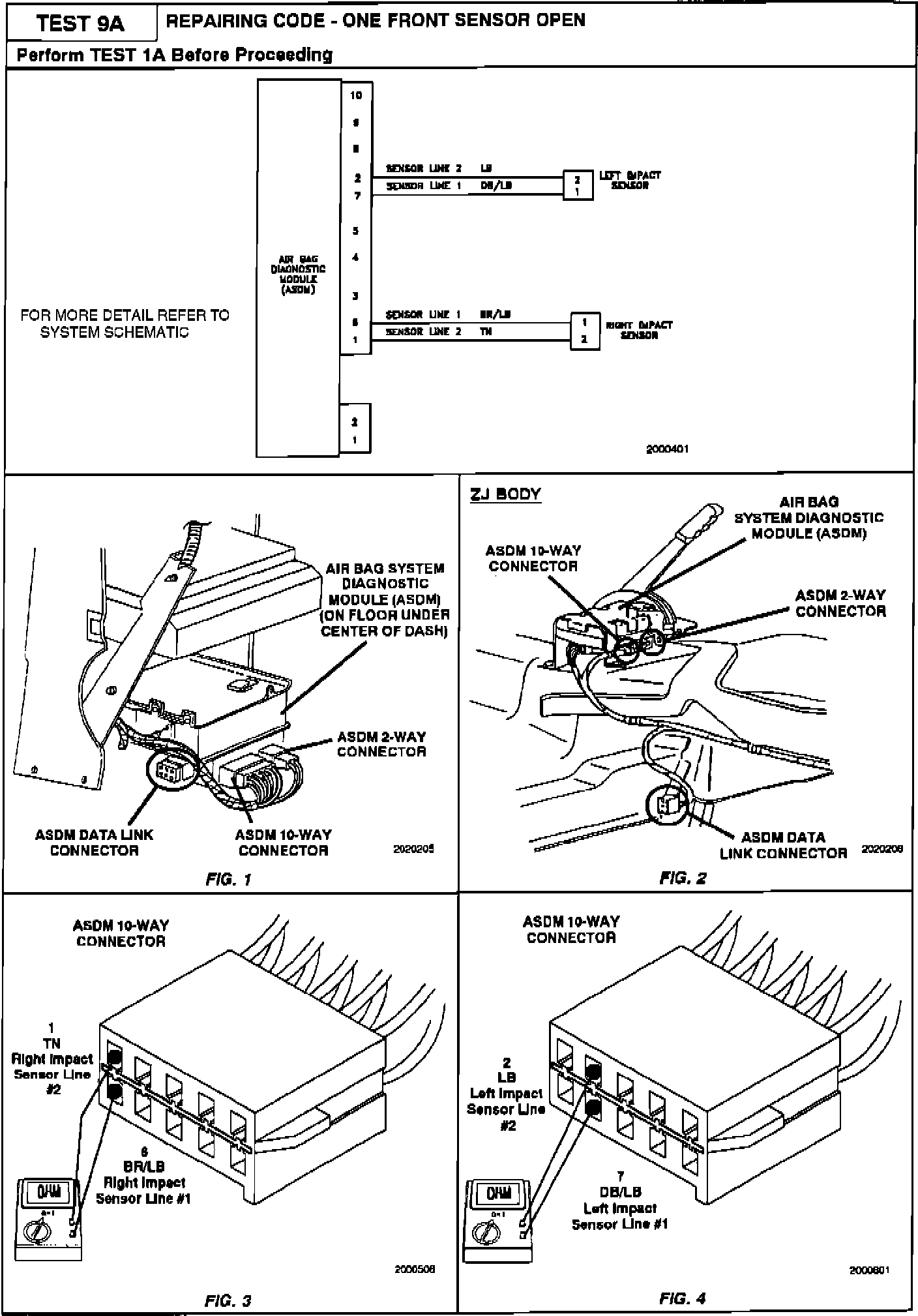

Test 9A - Repairing Code - One Front Sensor Open (Part 1 Of 2):
