Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 7A Repairing Code Initiator Short >> Part 2 of 2

Part 2 of 2

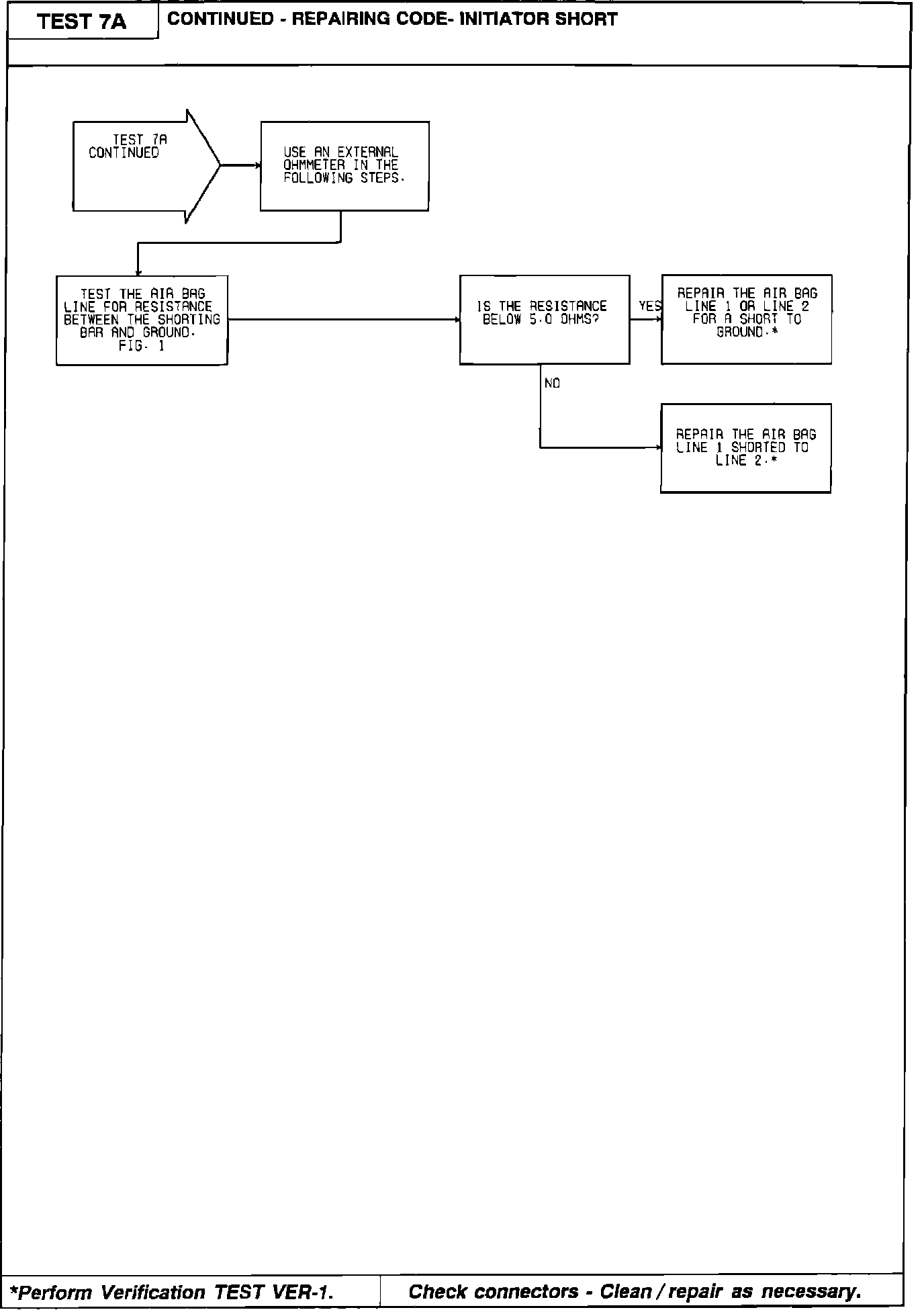

Test 7A - Repairing Code - Initiator Short (Part 2 Of 2):



Test 7A - Repairing Code - Initiator Short (Part 2 Of 2):
