Home >> Dodge or Ram Truck >> 1993 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 3A Correcting "No Response" Condition

3A Correcting "No Response" Condition

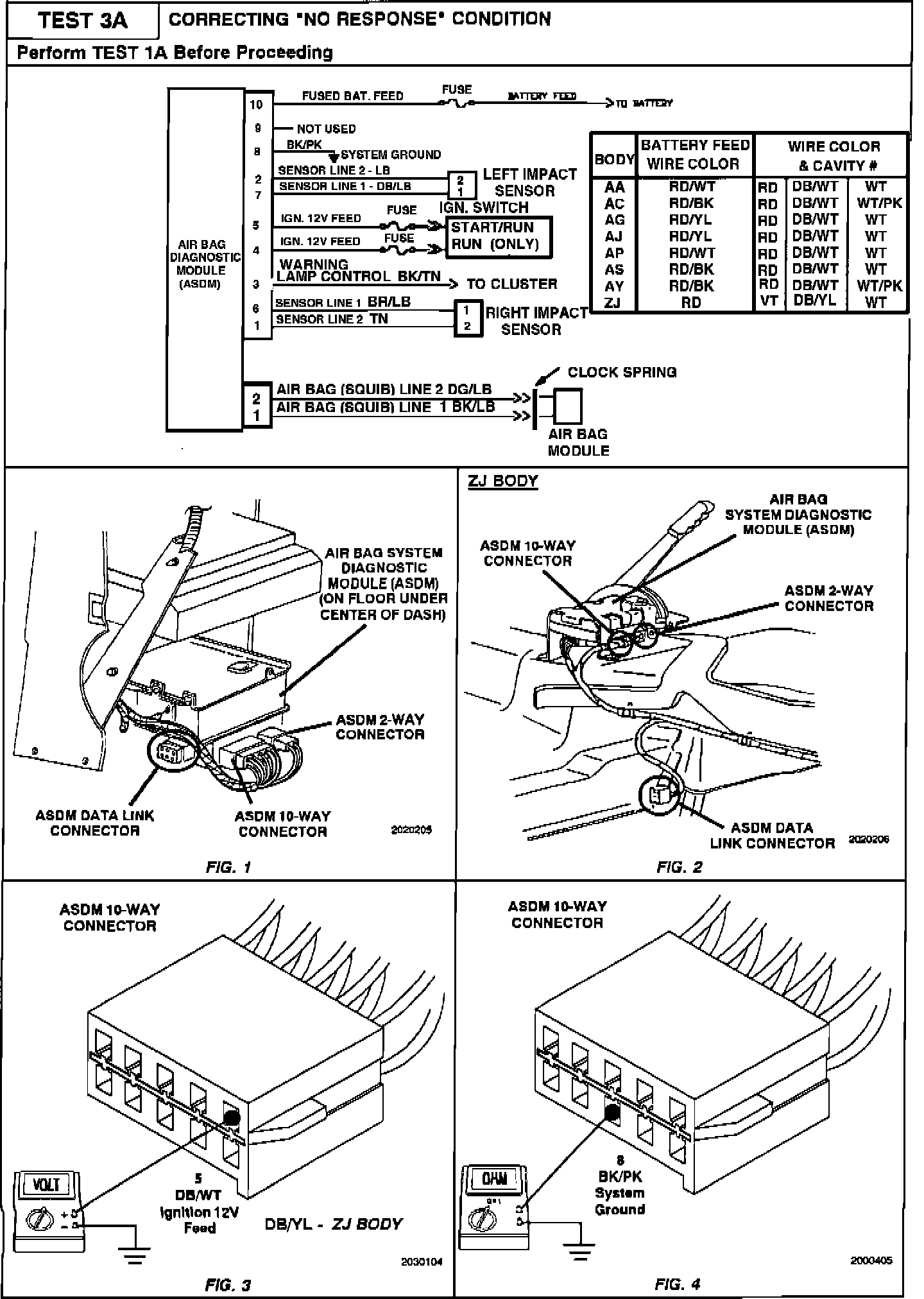

Test 3A - Correcting "No Response" Condition (Part 1 Of 2):



Test 3A - Correcting "No Response" Condition (Part 1 Of 2):

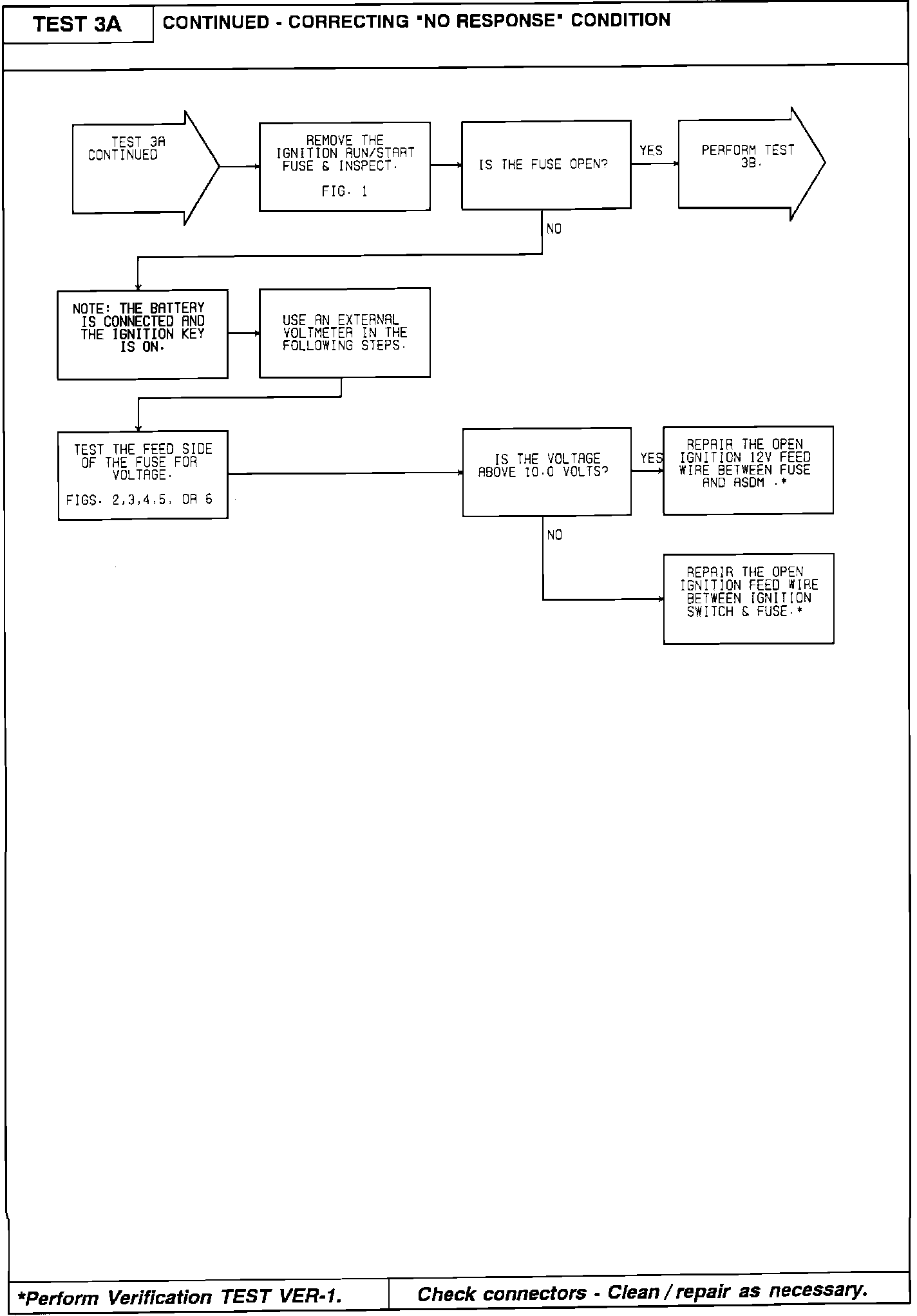

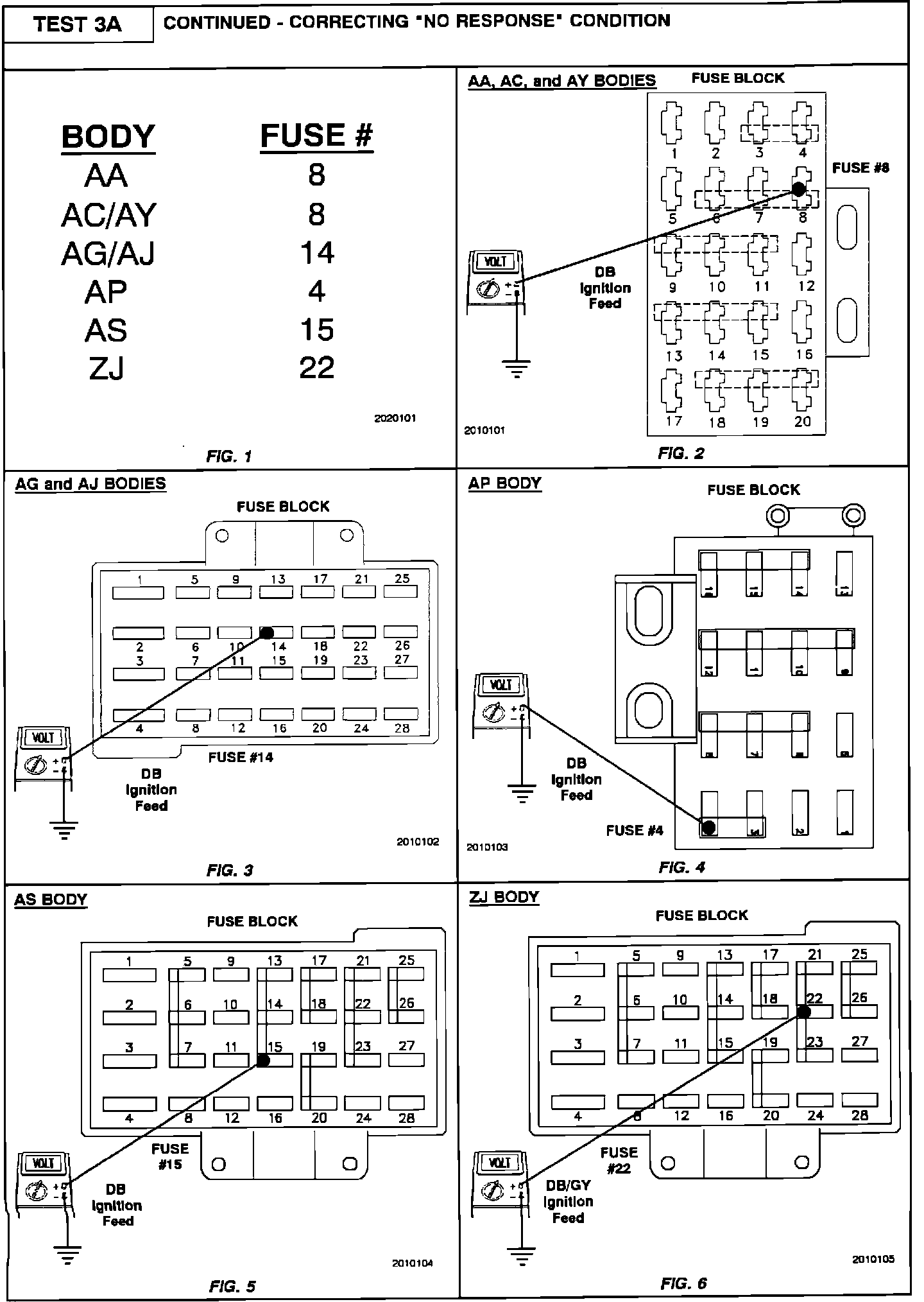

Test 3A - Correcting "No Response" Condition (Part 2 Of 2):



Test 3A - Correcting "No Response" Condition (Part 2 Of 2):
