Dodge or Ram Truck
>>
1993
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Detailed Descriptions
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

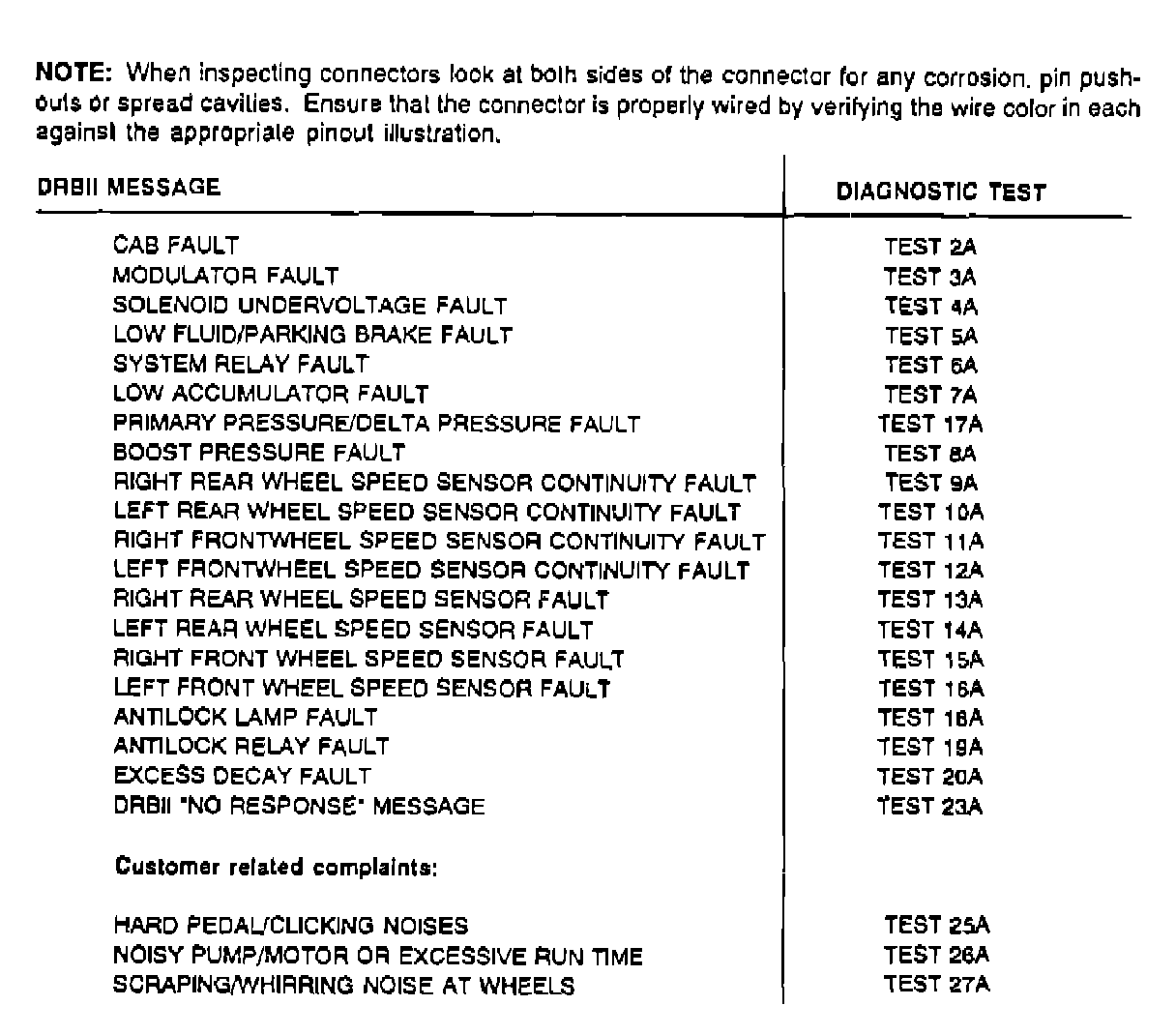

Fig. 89 Test 1A Part 2 Of 2:
