Home >> Dodge or Ram Truck >> 1991 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Front

Front

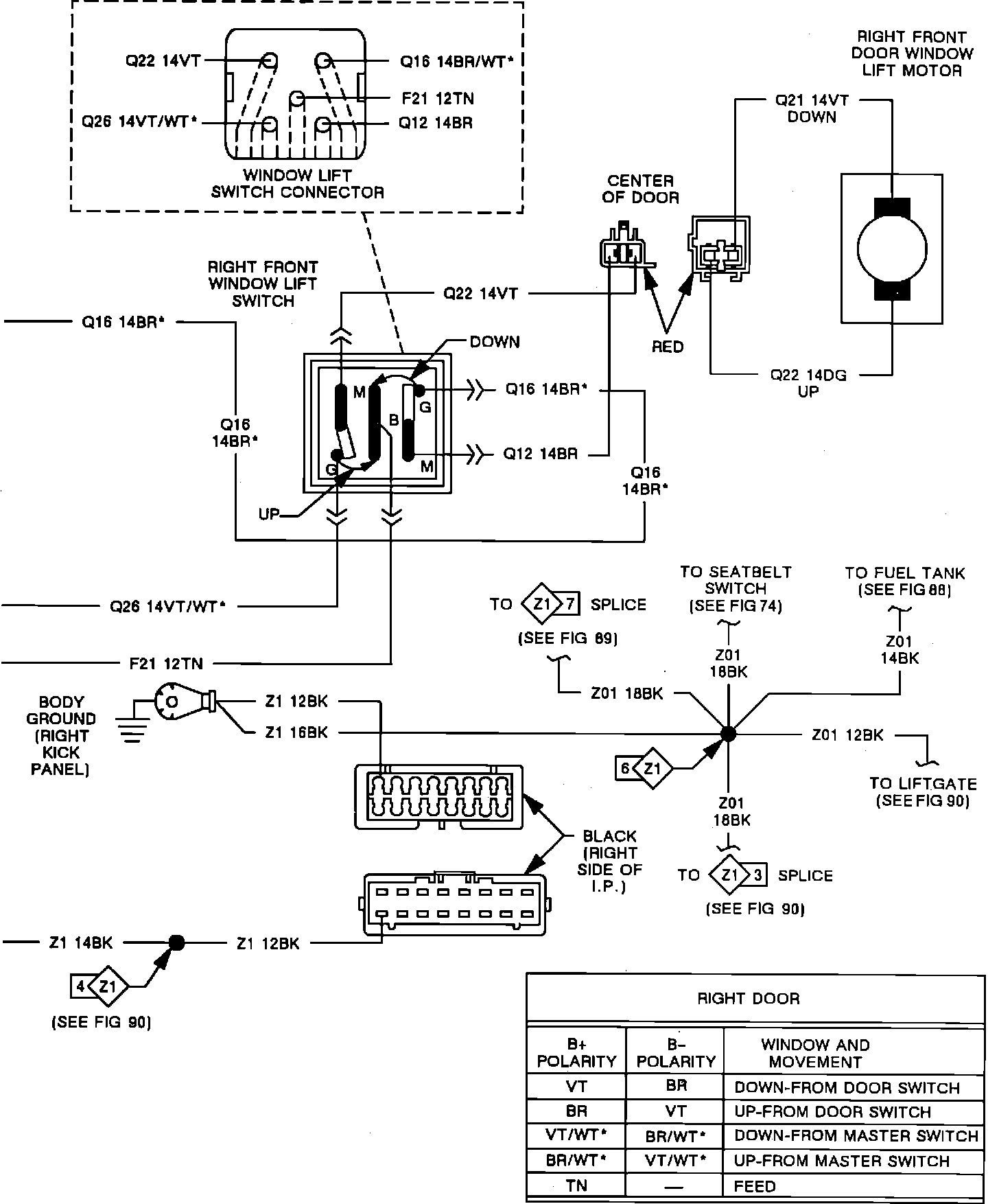

Power Window Lift System -- Part 1:

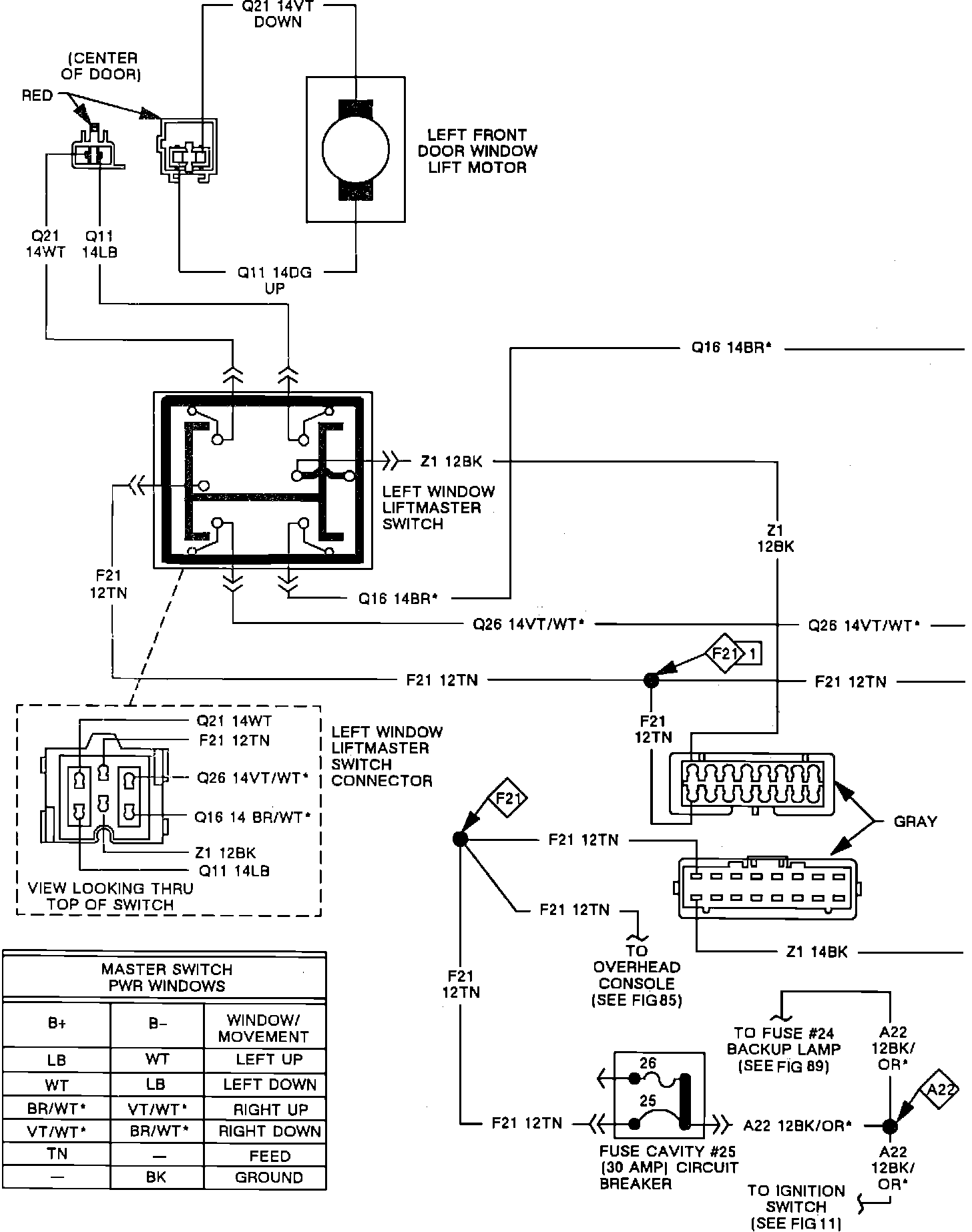

Power Window Lift System -- Part 2:
