Non-Trouble Code Procedures

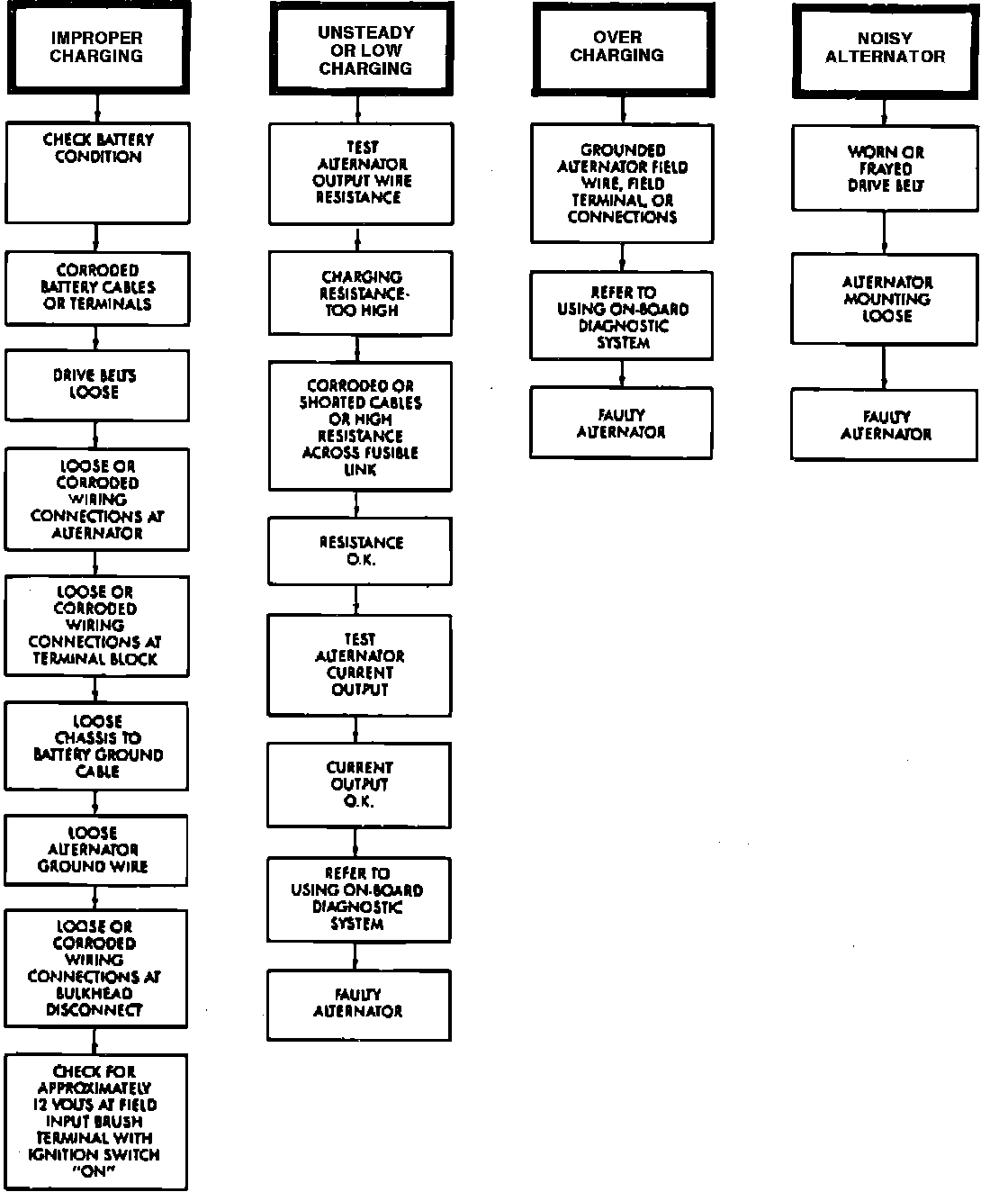

Fig. 8 Charging system diagnosis chart. Bosch & Nippondenso alternators:
