Brake Light Switch
>>
Locations
>>
3.0L/V6-181 & 3.3L/V6-201
3.0L/V6-181 & 3.3L/V6-201

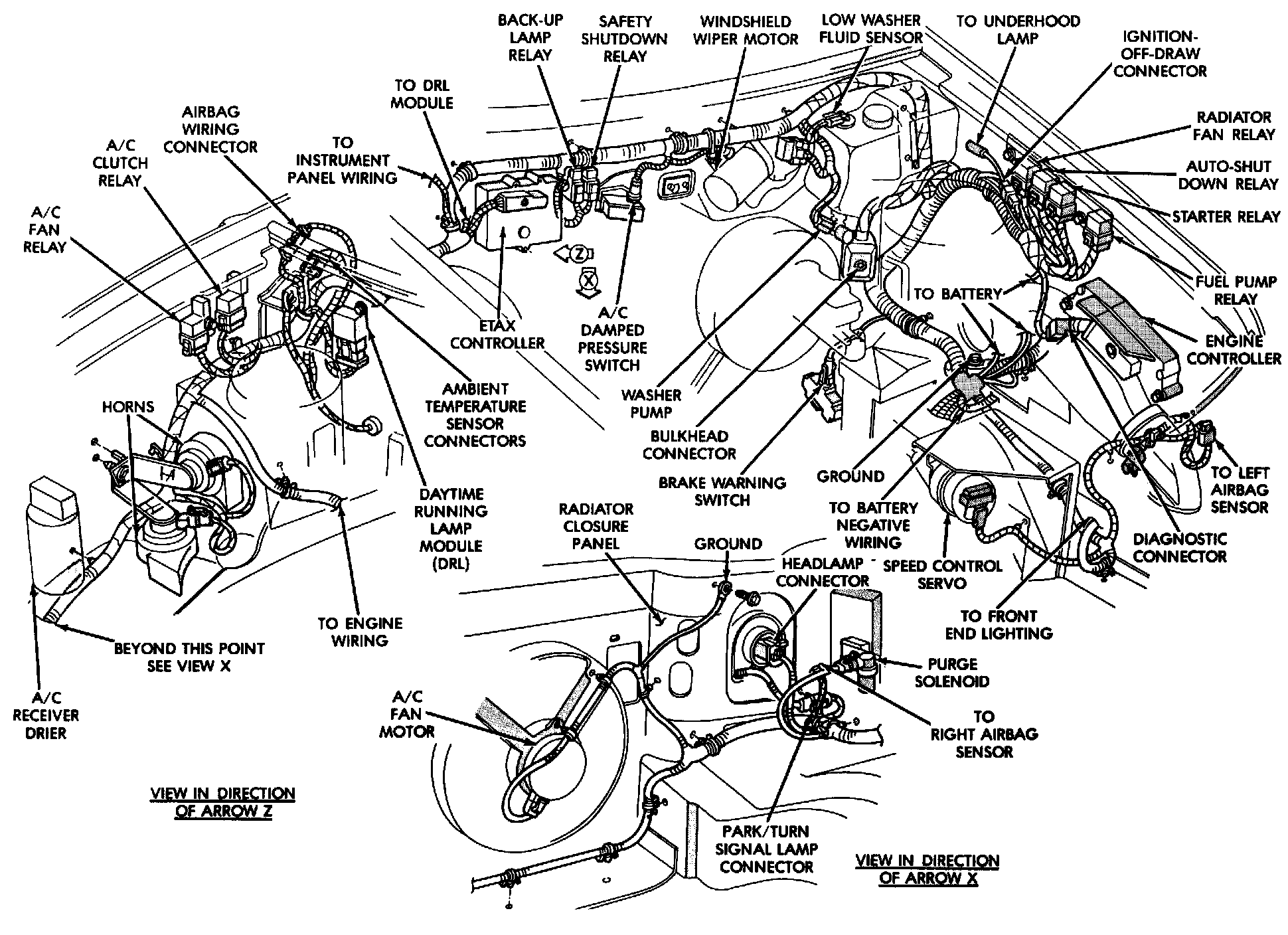

Engine Compartment Components:
Rear LH Side Of Engine Compartment
Applicable to: 3.0L/V6-181 & 3.3L/V6-201 Engines
