Dodge or Ram Truck
>>
1991
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
With Air Conditioning

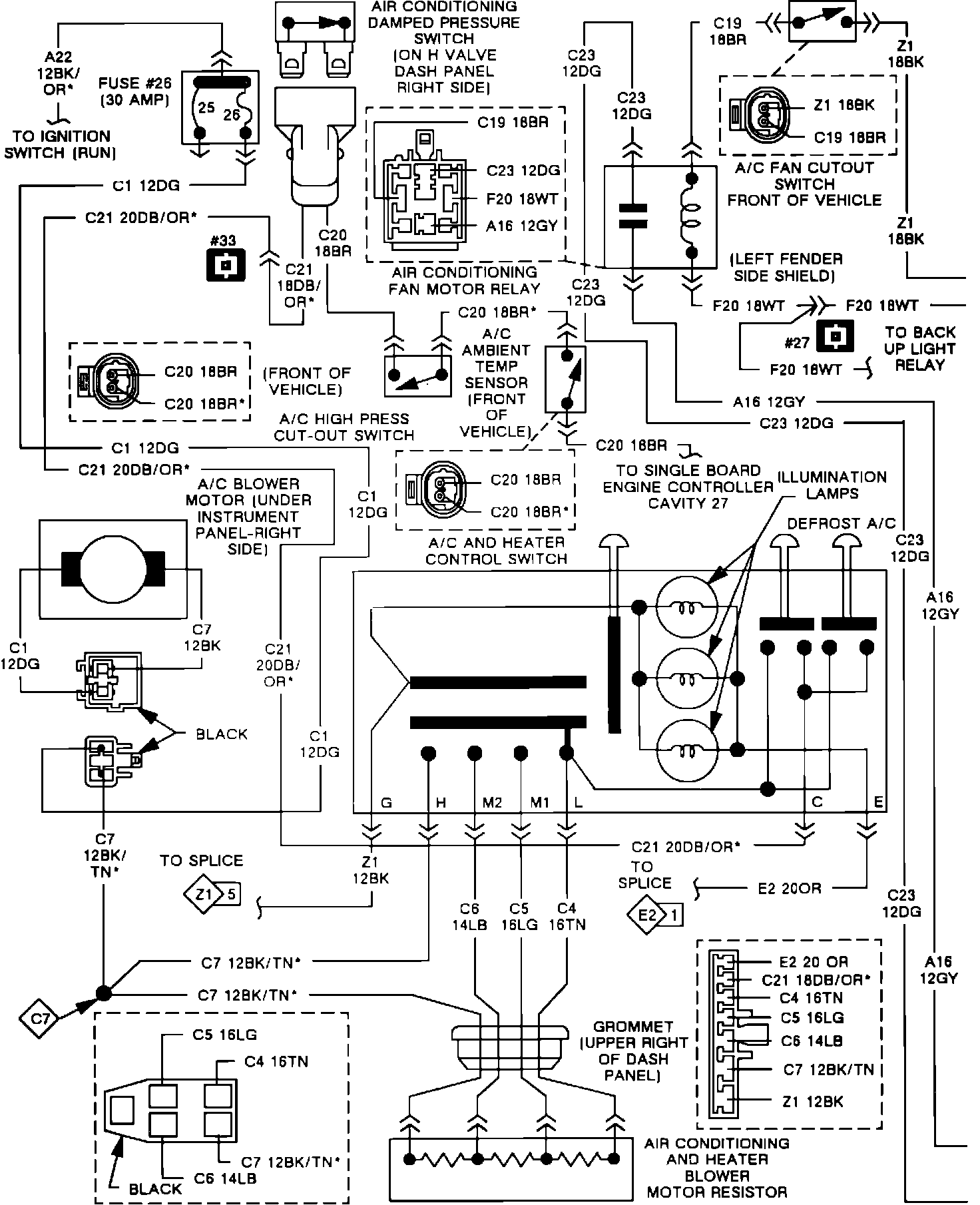

Electric cooling fan & air conditioning circuit (Part 1 of 2):

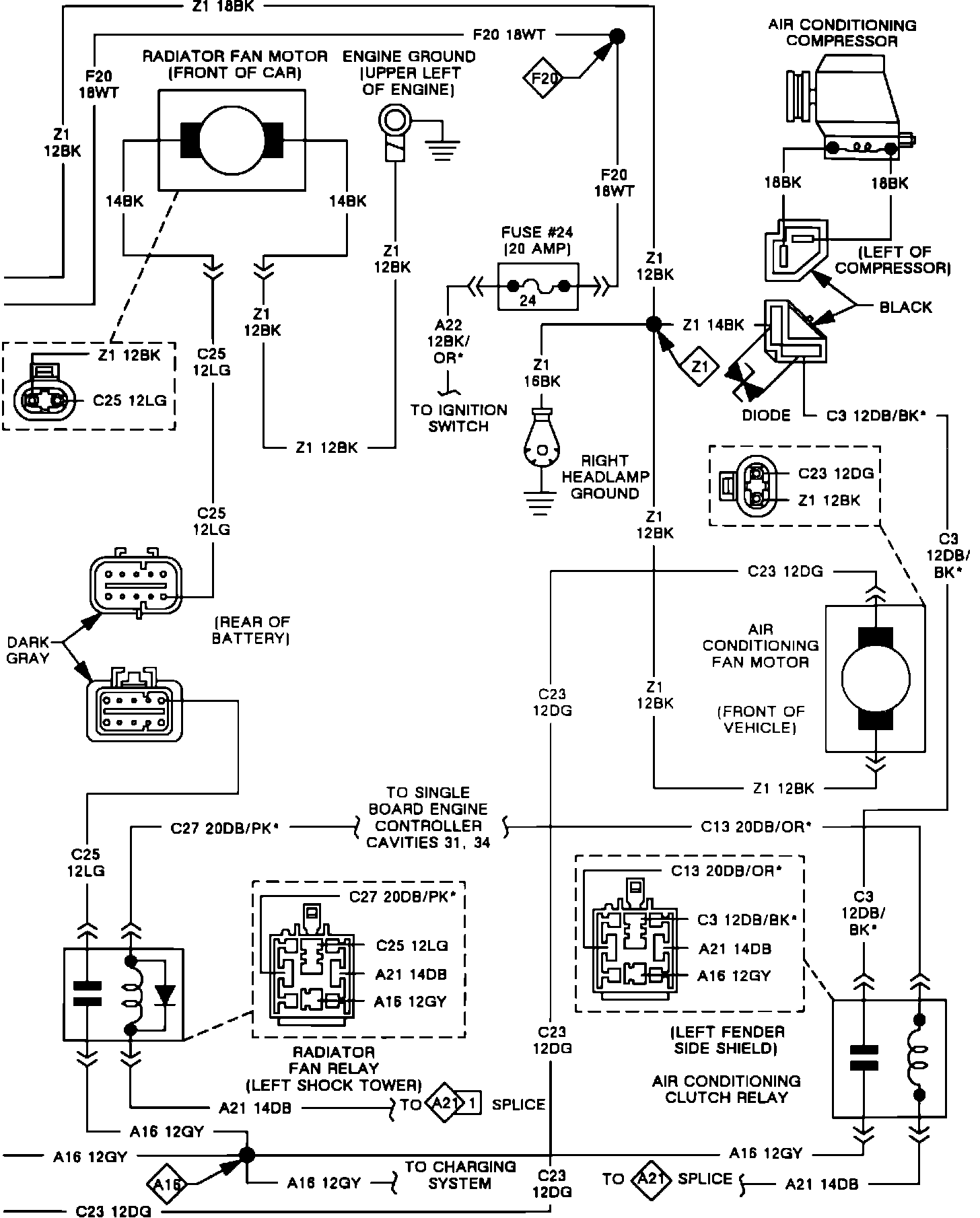

Fig. 20b Electric cooling fan & air conditioning circuit:
