Connector Views

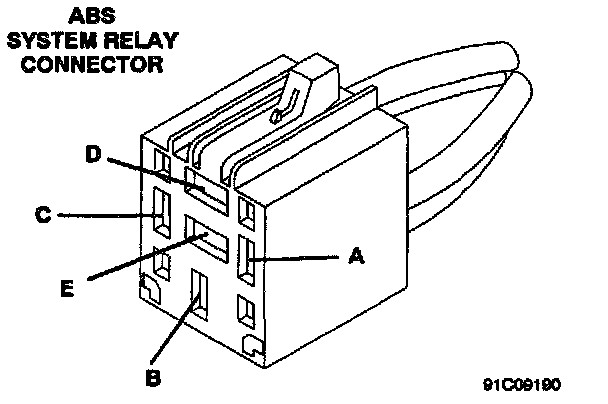

ABS SYSTEM RELAY CONNECTOR

CAV CIRCUIT.......... FUNCTION
A..... B57 BR/BK........ System Relay Actuation
B..... A20 RD/DB........ Battery 12V
C..... Z1 BK............ Ground
D..... B47 RD/LB........ System Relay Voltage
E....................... Not Used
