Home >> Dodge or Ram Truck >> 1991 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Variable Displacement Compressor Diagnosis >> Compressor and Clutch Diagnosis

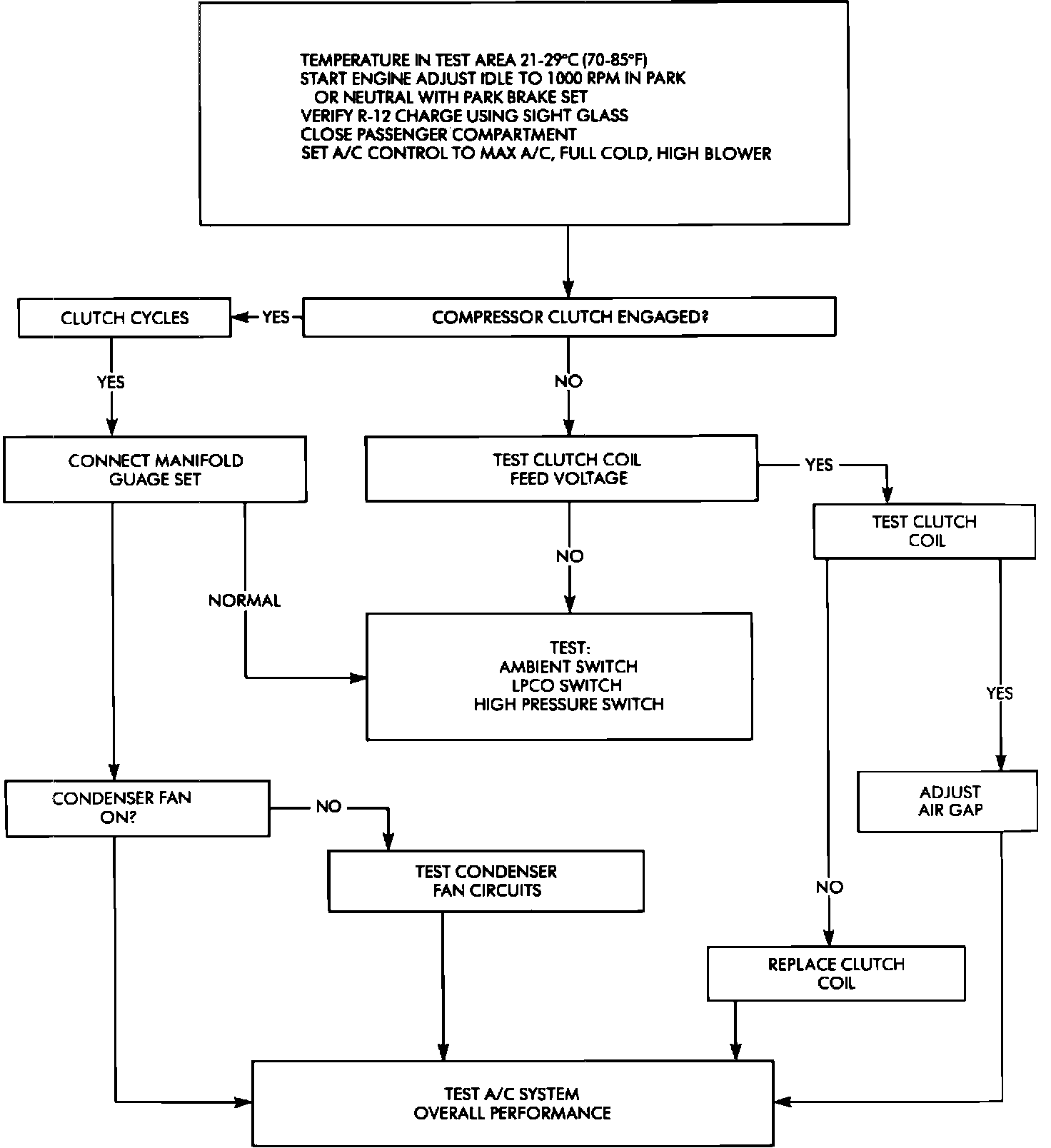

Compressor and Clutch Diagnosis

Variable Displacement Compressor And Clutch Diagnosis:
