Home >> Dodge or Ram Truck >> 1991 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Fixed Displacement Compressor Diagnosis >> Compressor and Clutch Diagnosis

Compressor and Clutch Diagnosis

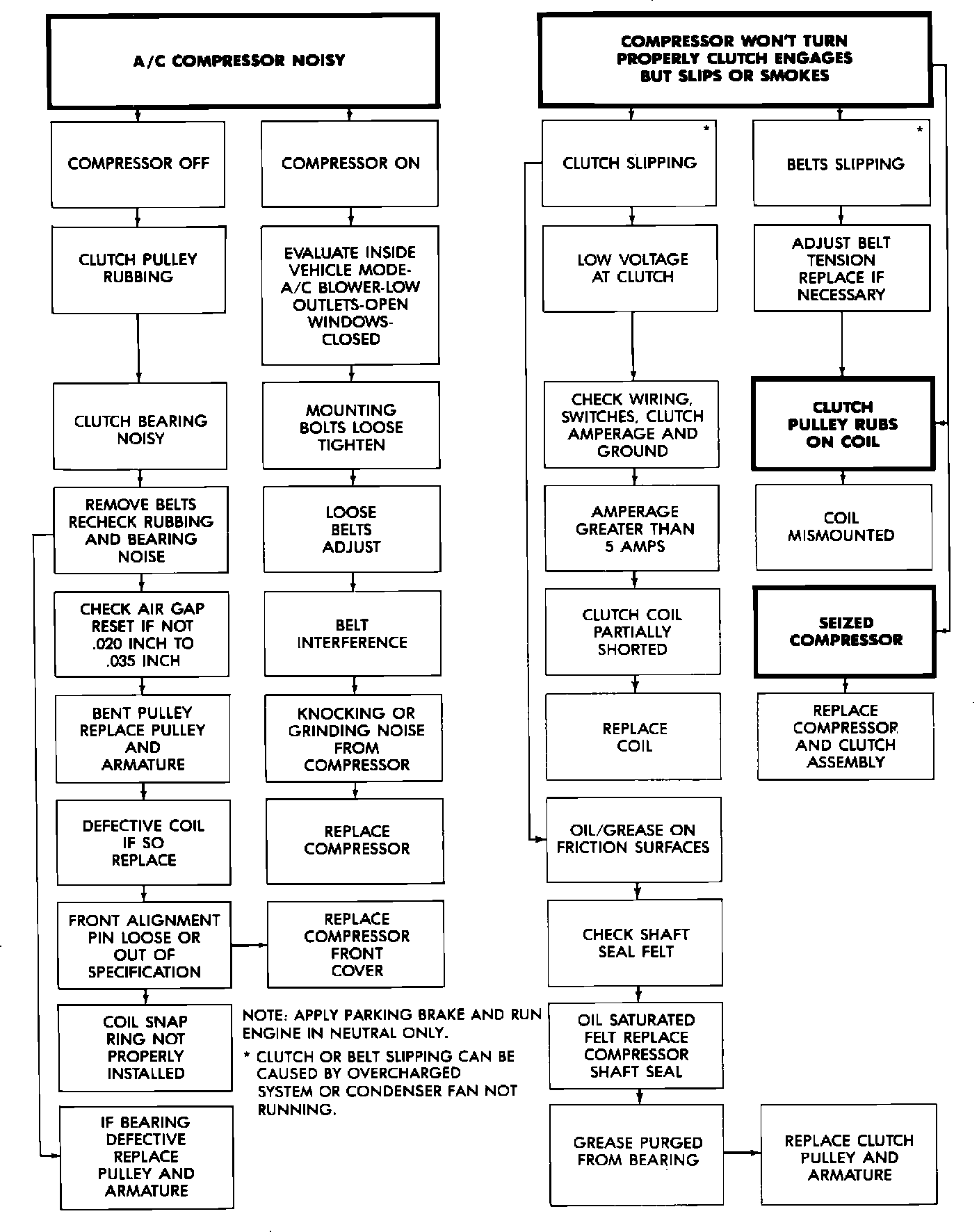

Compressor And Clutch Diagnosis (Fixed Displacement Compressor):
