Temperature Gauge Diagnosis

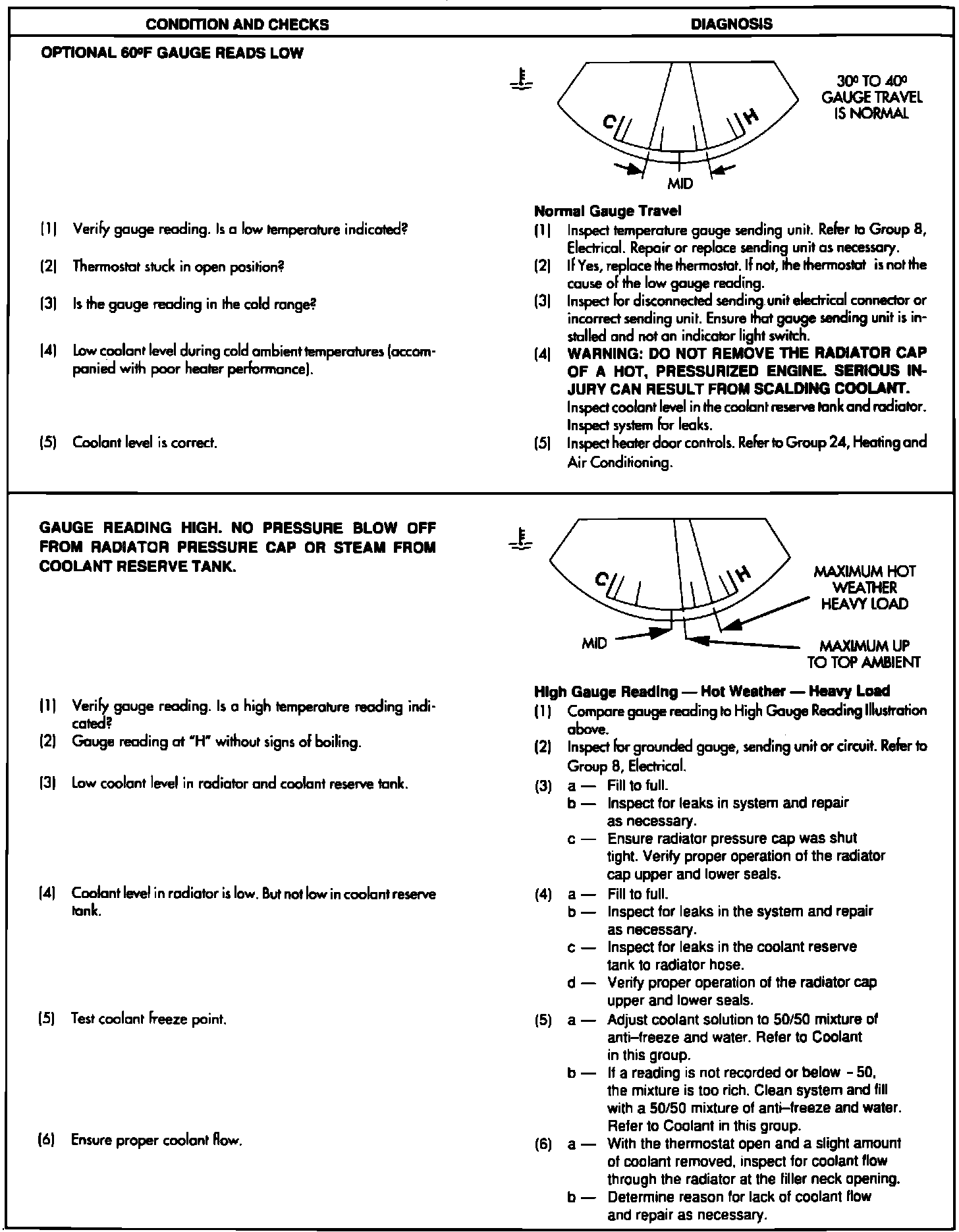

Fig. 1 Cooling System Diagnosis (Part 1 of 5):

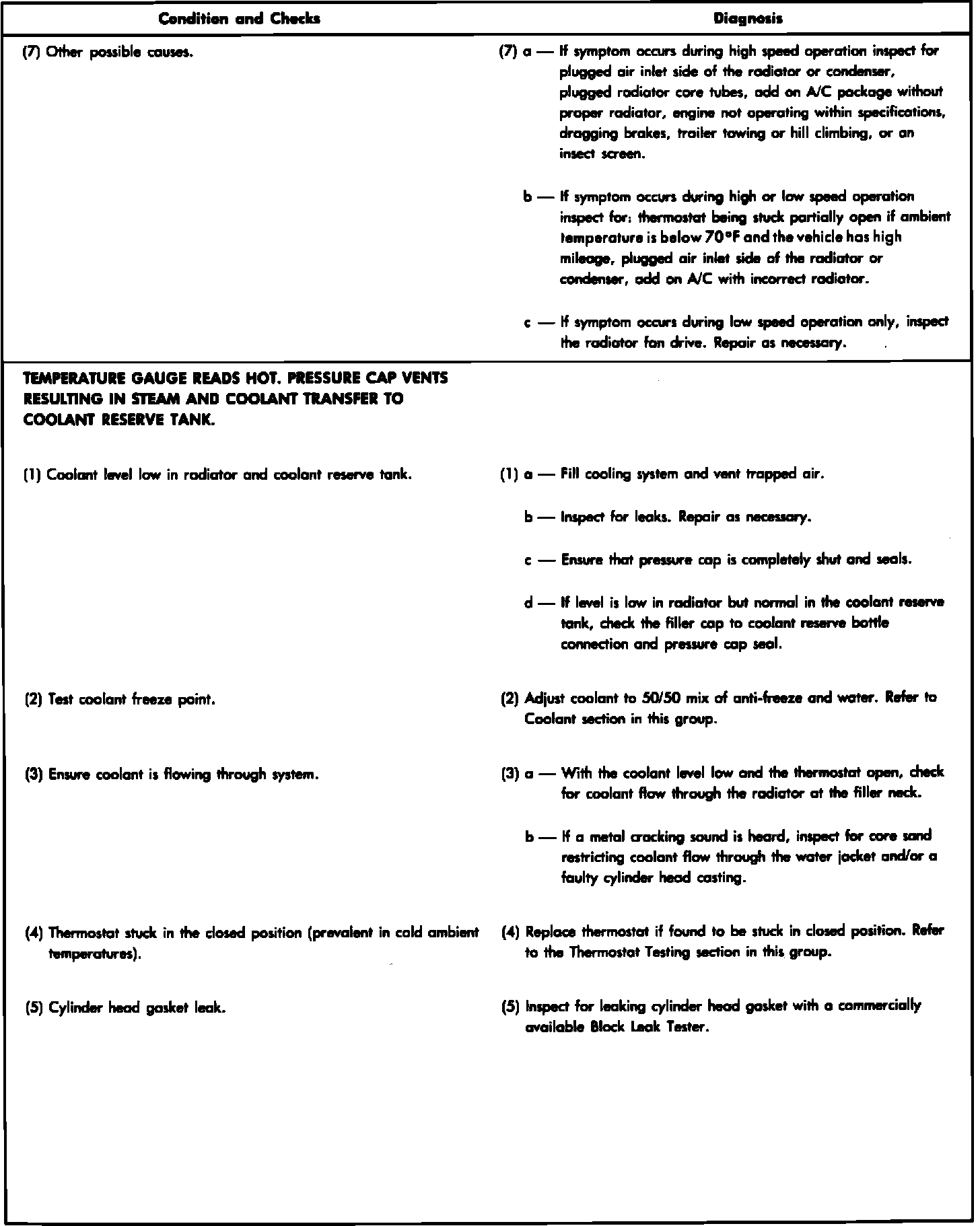

Fig. 1 Cooling System Diagnosis (Part 2 of 5):

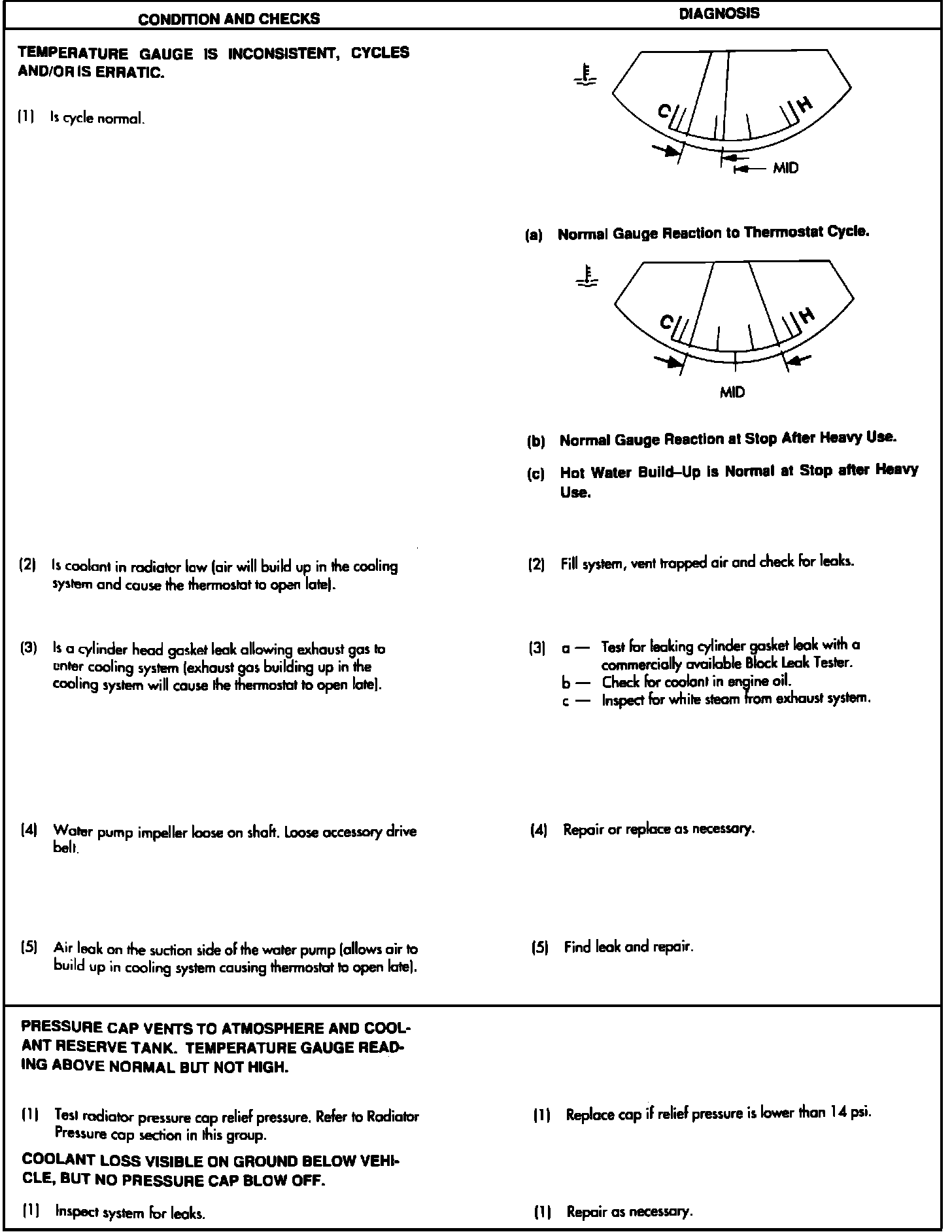

Fig. 1 Cooling System Diagnosis (Part 3 of 5):

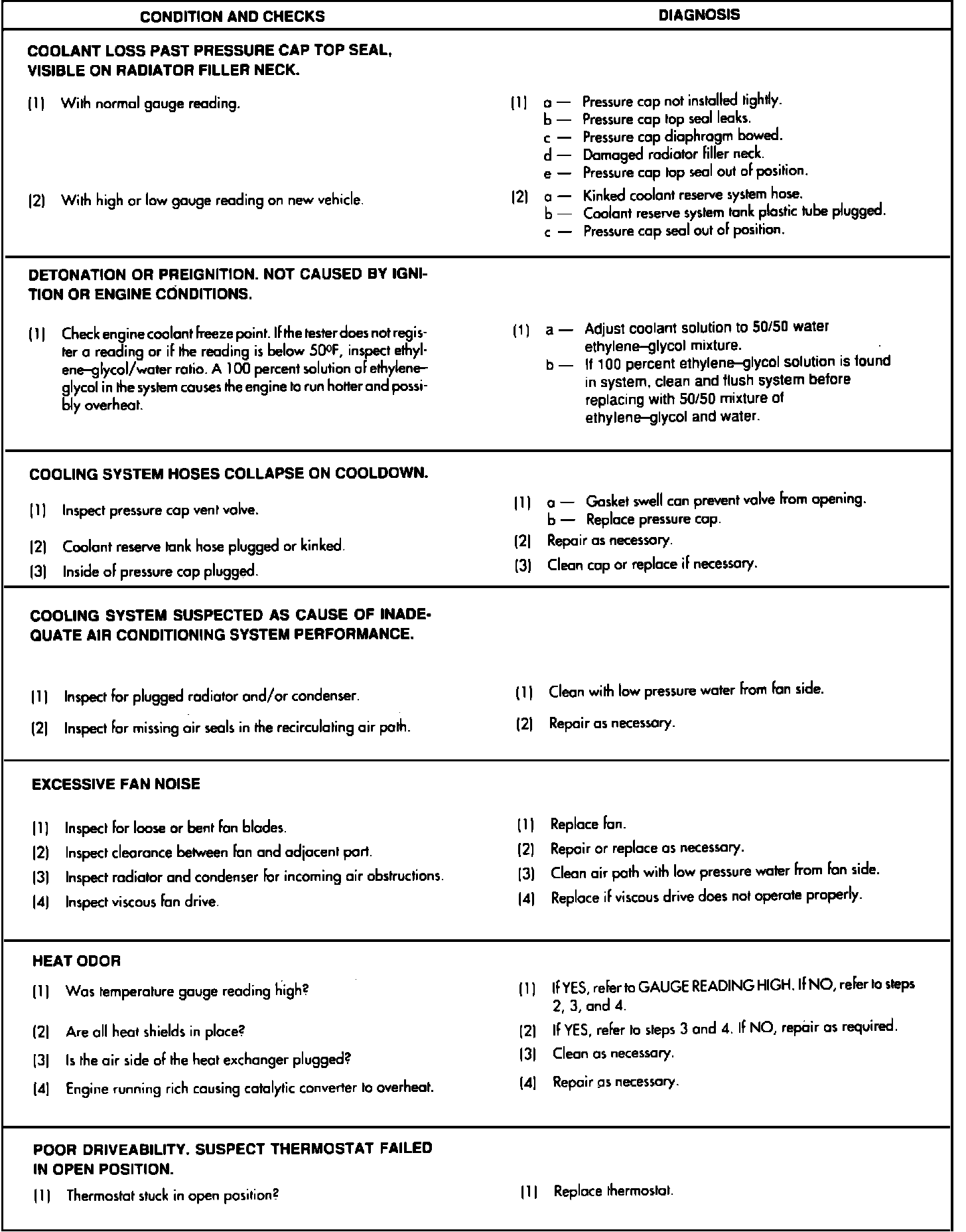

Fig. 1 Cooling System Diagnosis (Part 4 of 5):

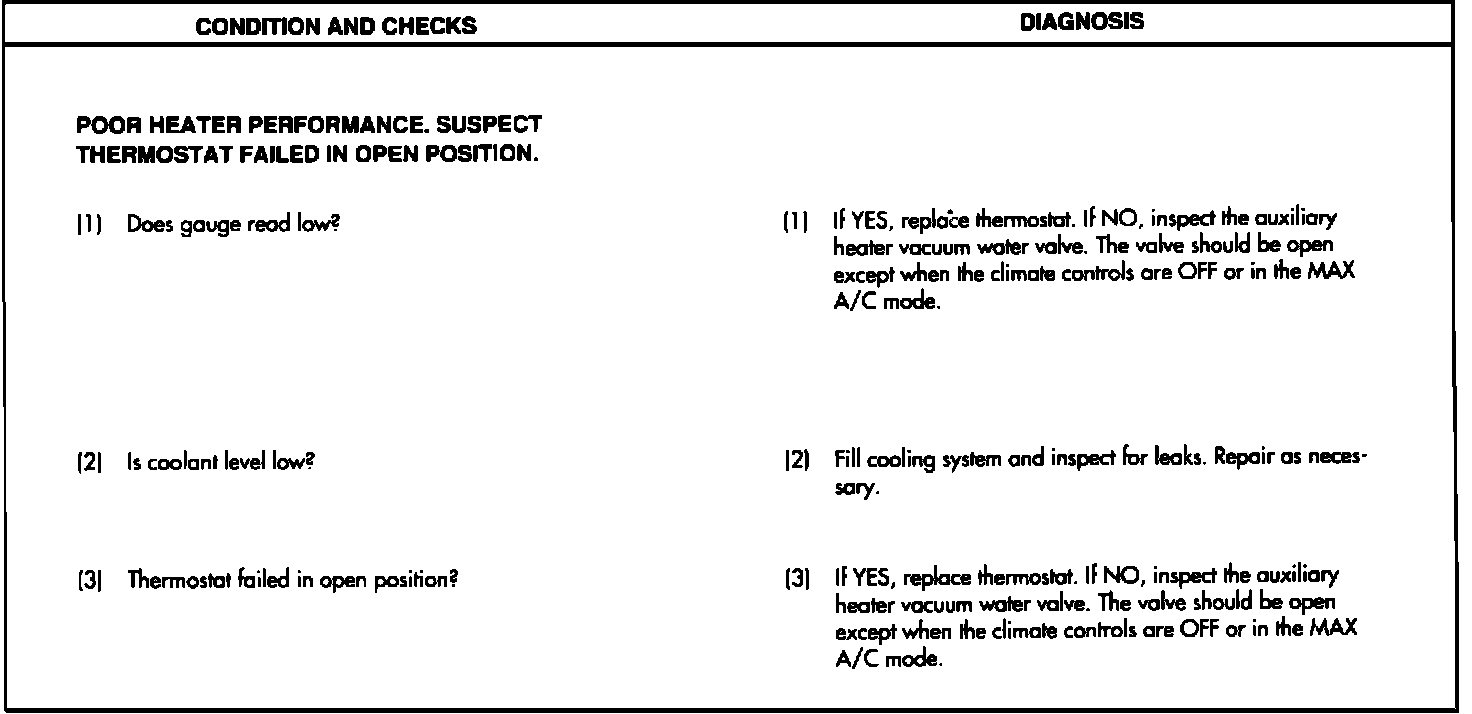

Fig. 1 Cooling System Diagnosis (Part 5 of 5):
