Load Compensator, Rear Wheel Brakes
Load Compensator, Rear Wheel Brakes

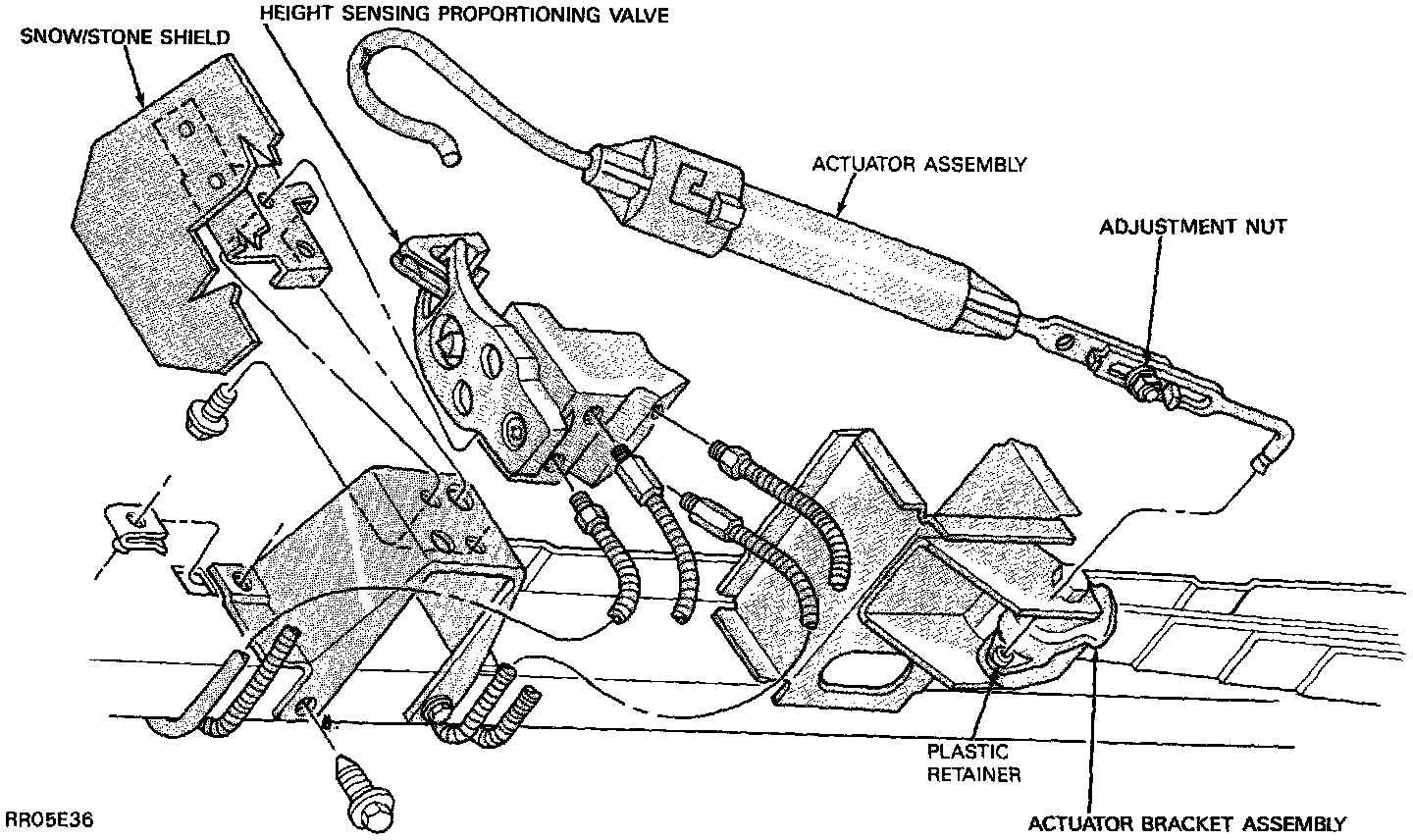

Height Sensing Proportioning Valve:
