With Daytime Running Lights

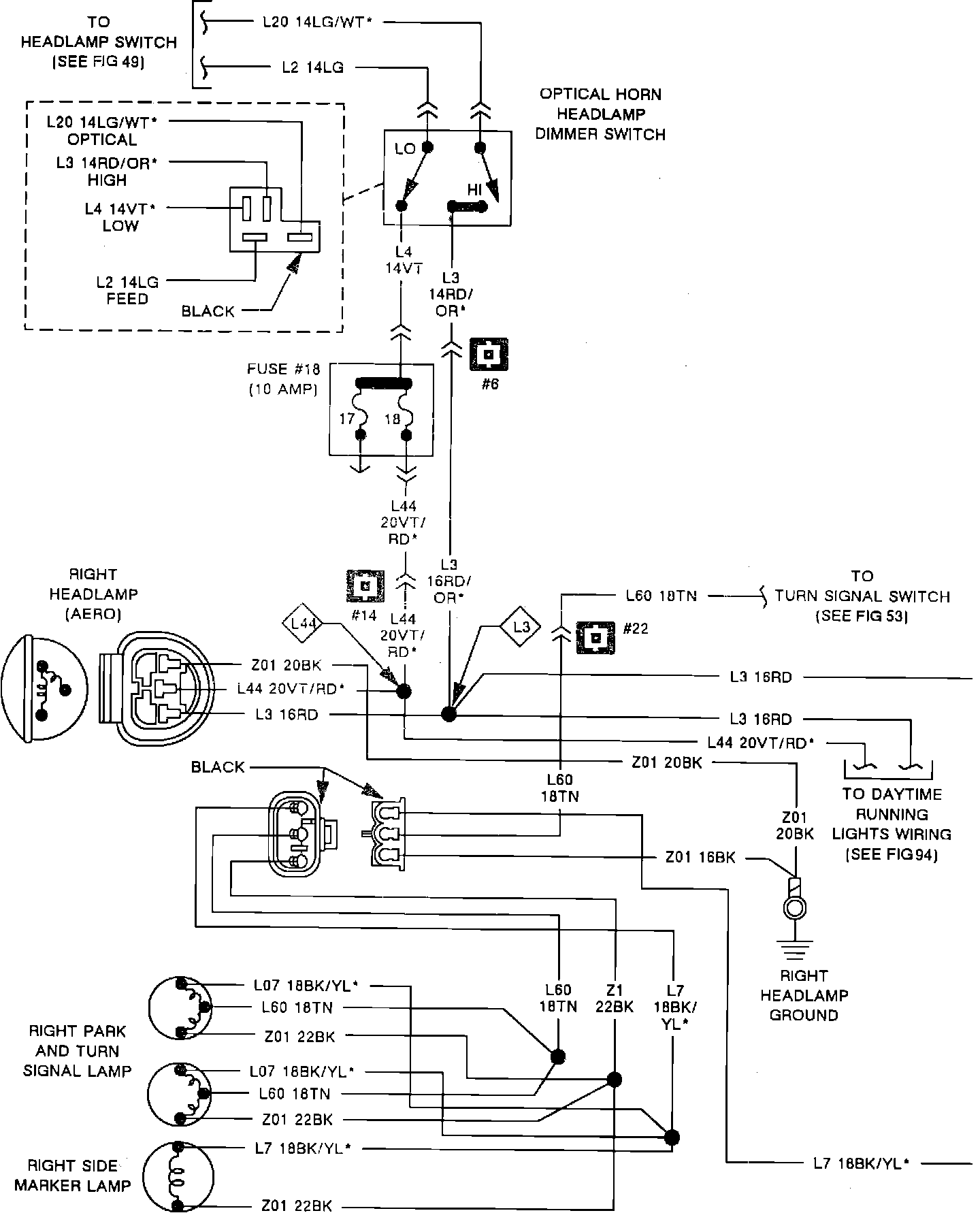

Front End Lighting With Daytime Running Lights:

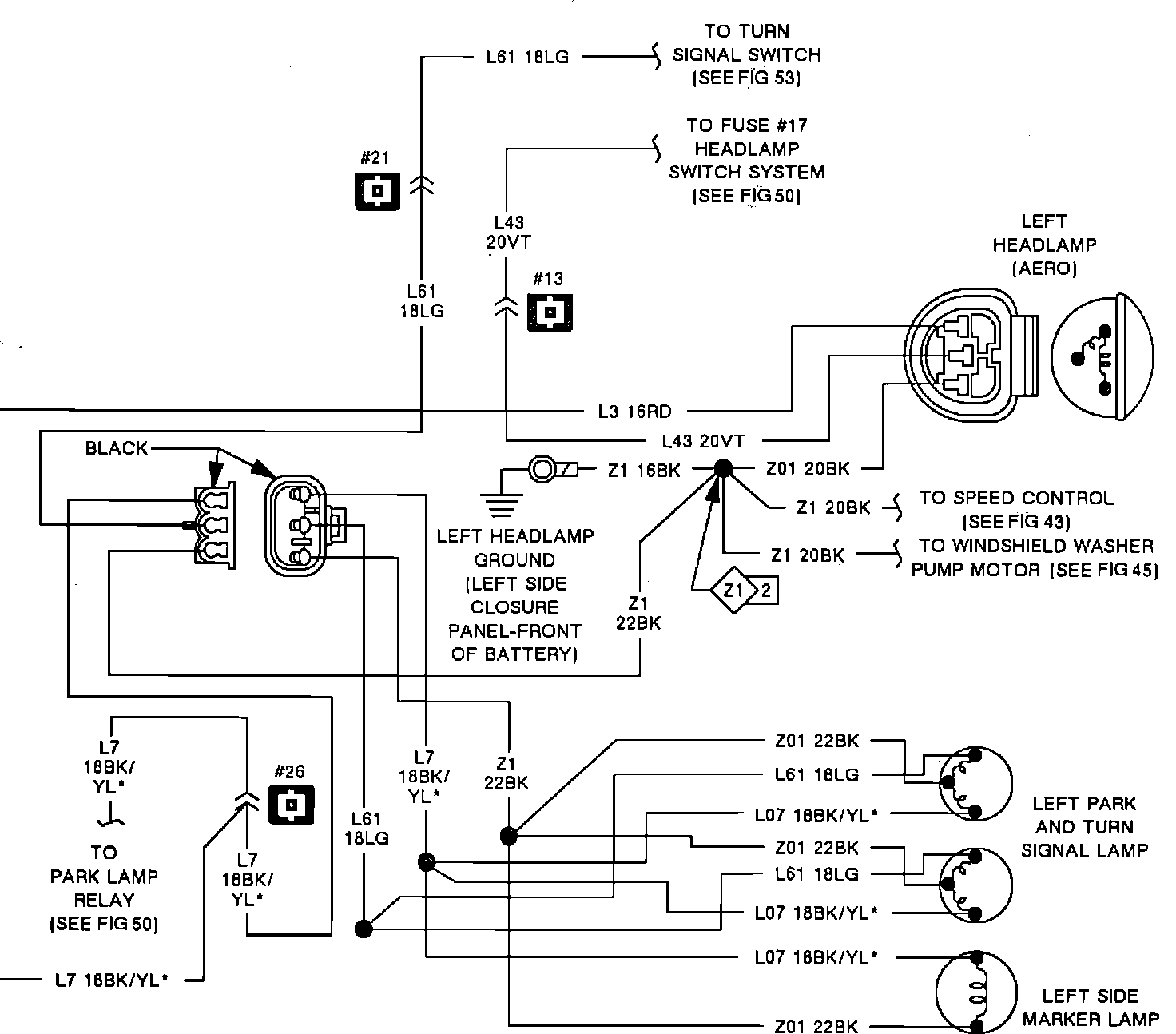

Front End Lighting With Daytime Running Lights:

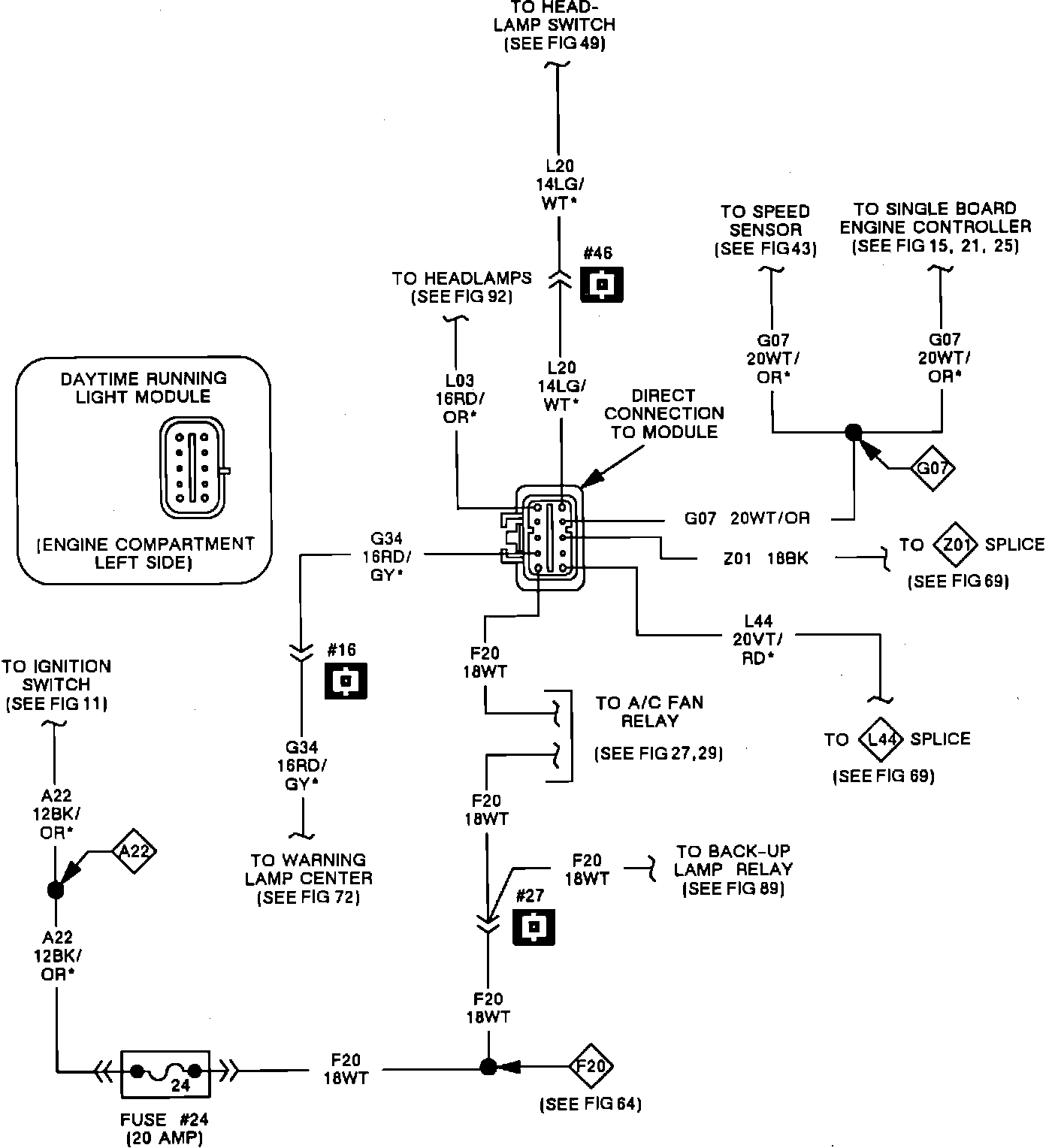

Daytime Running Light Module Wiring:
