Hazard Flasher and Turn Signal Switch

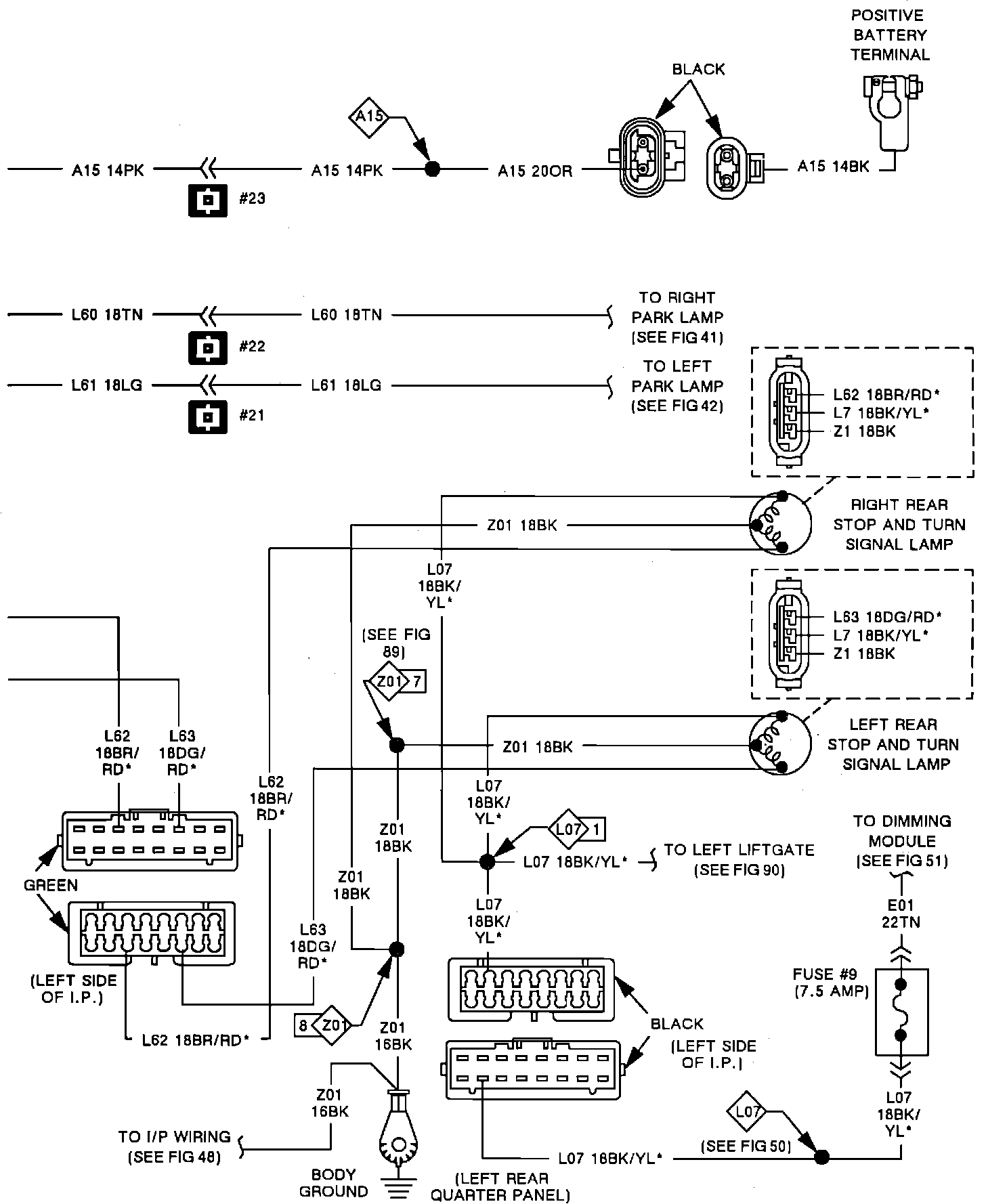

Stop/Turn And Hazard Flasher System:

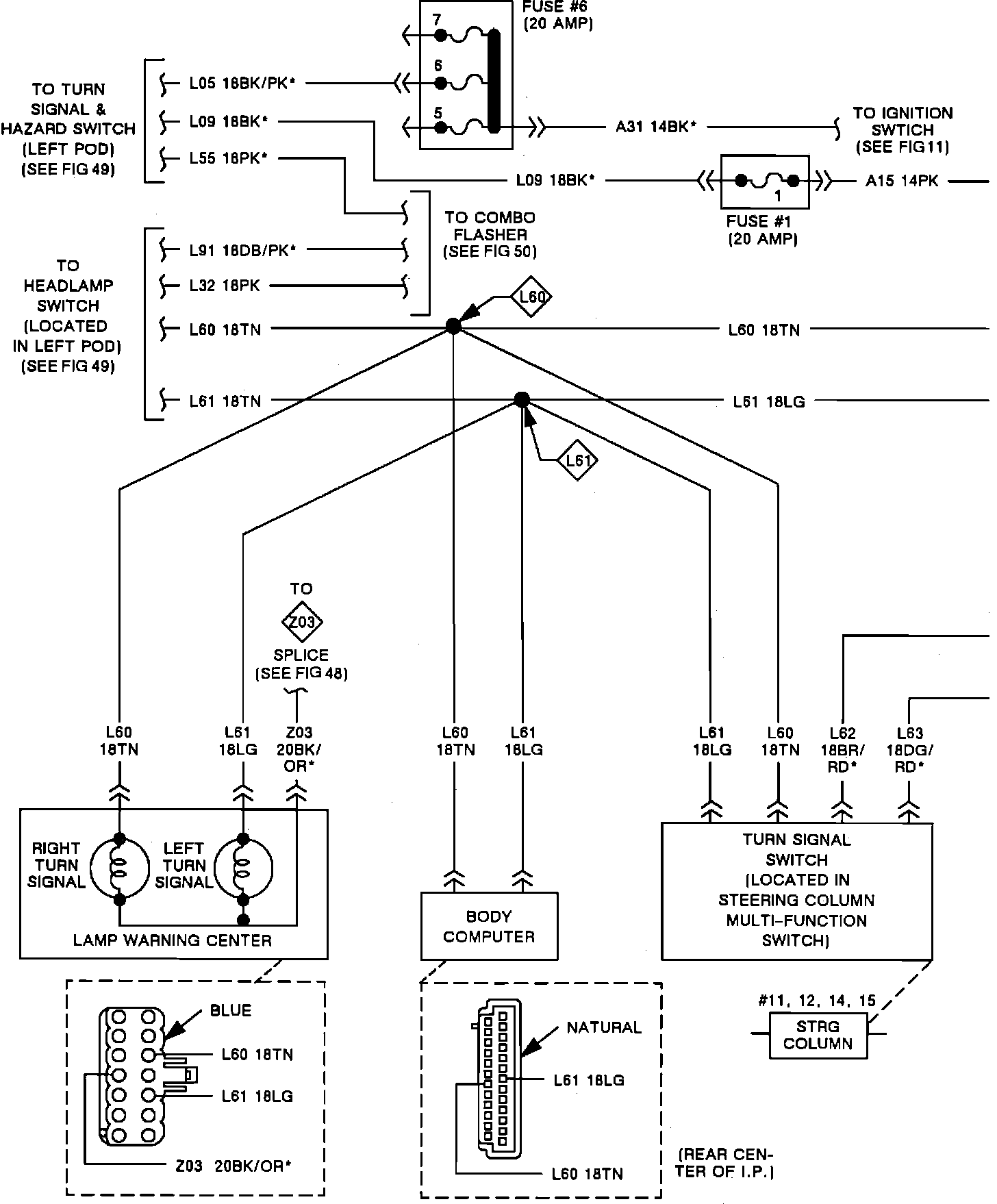

Stop/Turn And Hazard Flasher System:
