FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Dodge or Ram Truck
>>
1991
>>
Caravan AWD V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
System Diagram
>>
Body
>>

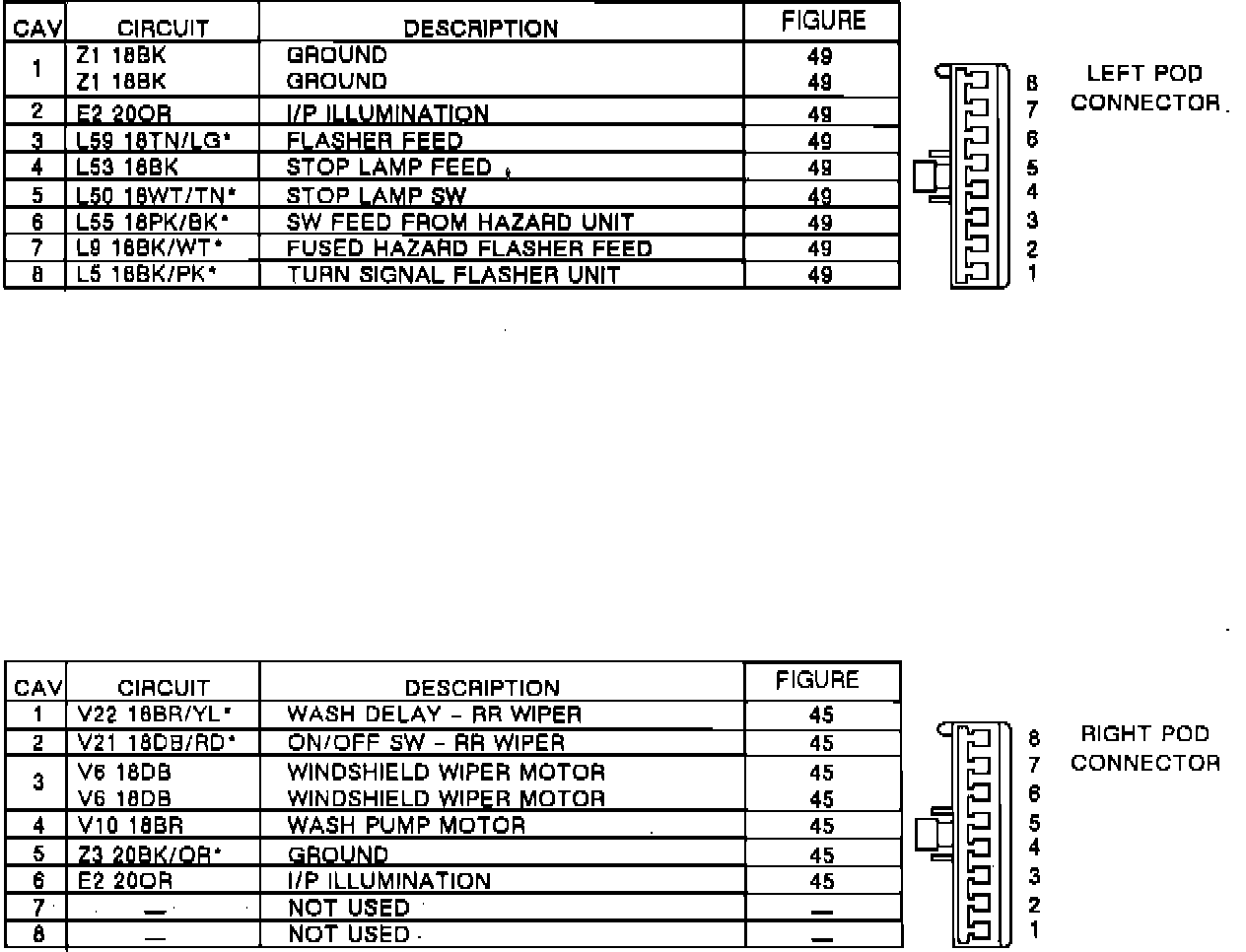

Left and Right Pod
Left and Right Pod
Body Connectors:
