Removal

For additional information see Removal Notes. Fundamentals and Basics

Removing Or Installing Guide Pin:

1. Raise vehicle on jackstands or centered on a hoist.
2. Remove front wheel and tire assemblies.
3. Remove caliper guide pin bolts.

Loosening Caliper:

4. After removing caliper guide pin bolts, wedge the caliper away from the braking disc with a screwdriver to break the gasket adhesive seals.

Removing Or Installing Caliper:

5. Remove caliper from disc by slowly sliding caliper assembly out and away from braking disc.

Hanging Caliper Out Of The Way:

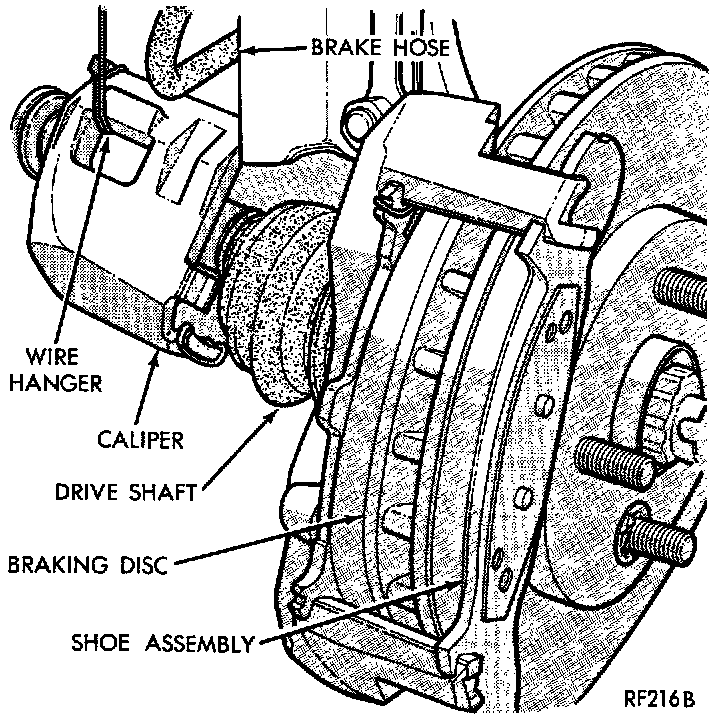

6. Support caliper firmly to prevent weight of caliper from damaging the flexible hose.

Removing Or Installing Outboard Shoe:

Removing Or Installing Brake Disc:

Removing Or Installing Inboard Shoe Assembly:

7. Remove the outboard shoe assembly, the disc and the inboard shoe assembly.
