Home >> Dodge or Ram Truck >> 1991 >> Caravan AWD V6-201 3.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

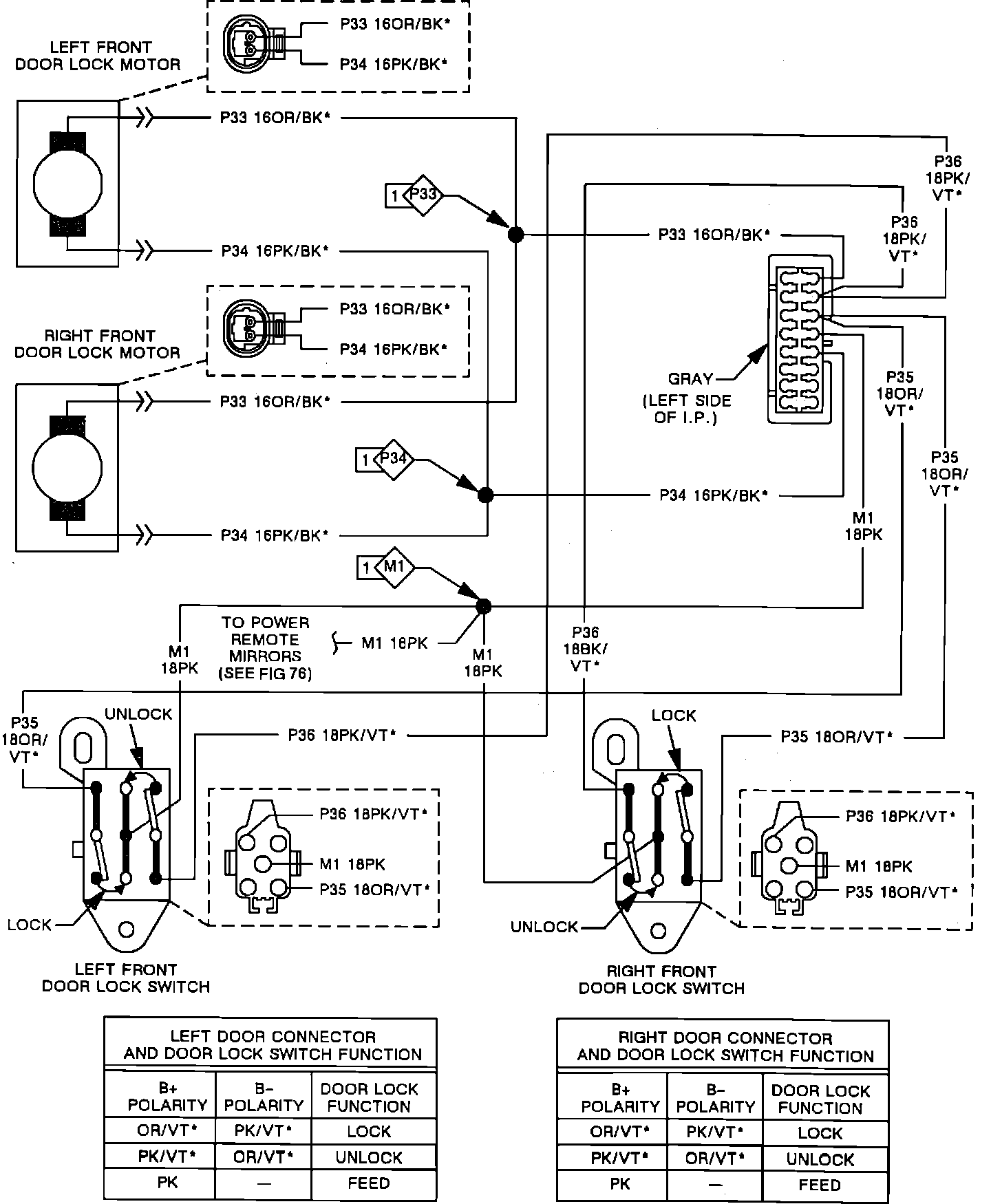

Door Lock System:
