Left Quarter Trim Panel

Quarter Trim Panel:

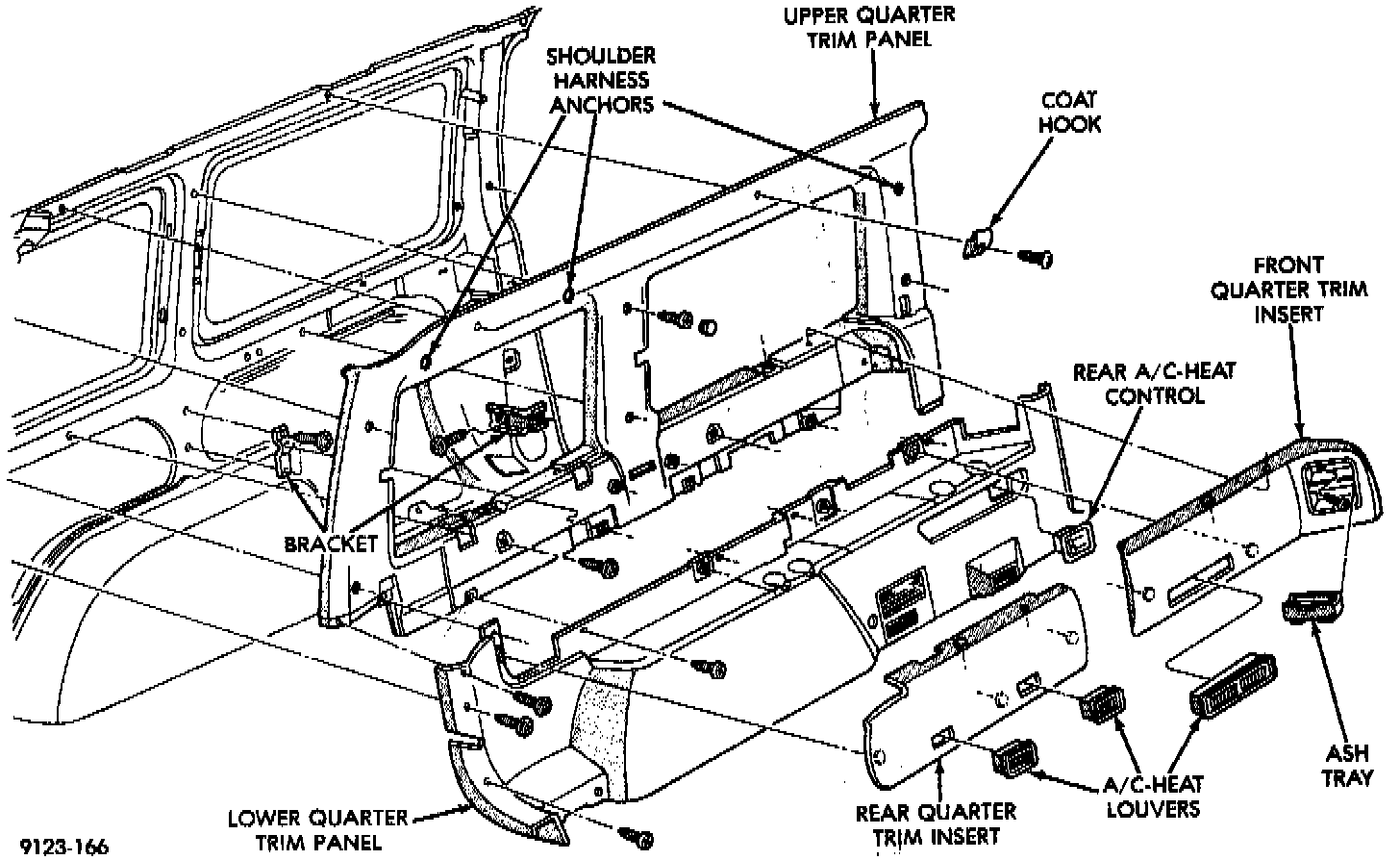

Quarter Trim Panel With Rear A/C:

1. Remove ash tray.
2. Remove screw holding quarter trim insert to quarter trim from inside ash tray opening.
3. Pull outward at bottom of trim insert to disengage clips holding insert to quarter trim.
4. Lift insert upward and separate quarter trim insert from vehicle.
5. Remove screws holding lower quarter trim panel to inner quarter panel.
6. Separate lower quarter trim from vehicle.
7. Remove covers and bolts holding shoulder harness turning loops to upper quarter panel.
8. Remove bolts holding outboard seat belt anchor to floor.
9. Remove seat belt retractor covers.
10. Remove screw holding coat hook to quarter panel.
11. Remove screws holding upper quarter trim panel to inner quarter panel.
12. Separate upper quarter trim panel from vehicle.
13. Reverse the preceding operation for installation.
