Trunk / Liftgate Latch: Service and Repair

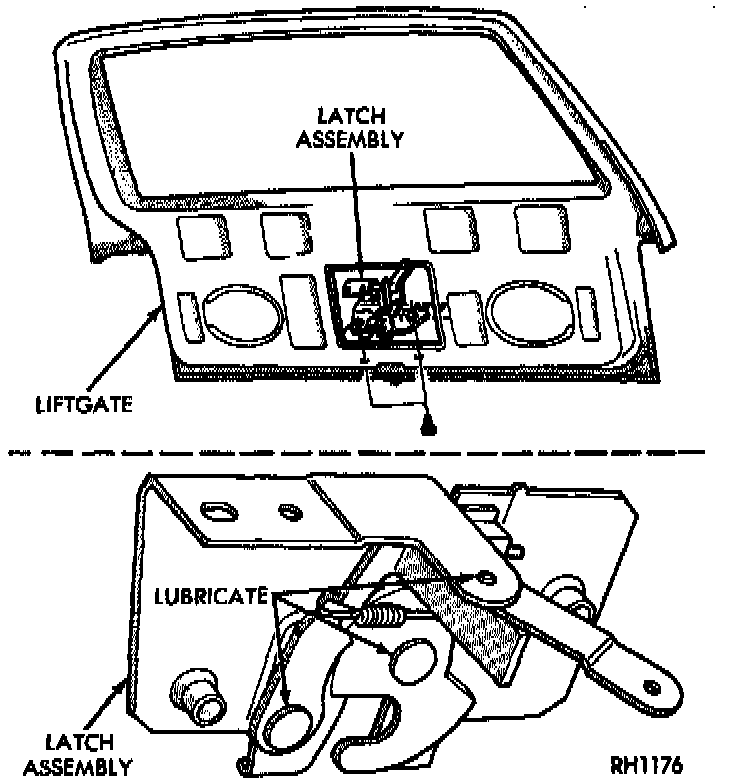

Lift Gate Latch:





1. Raise lift gate to open position.
2. Remove lift gate trim panel.
3. Disconnect linkage rods from latch.
4. Remove screws holding latch to lift gate.
5. Separate latch from lift gate.
