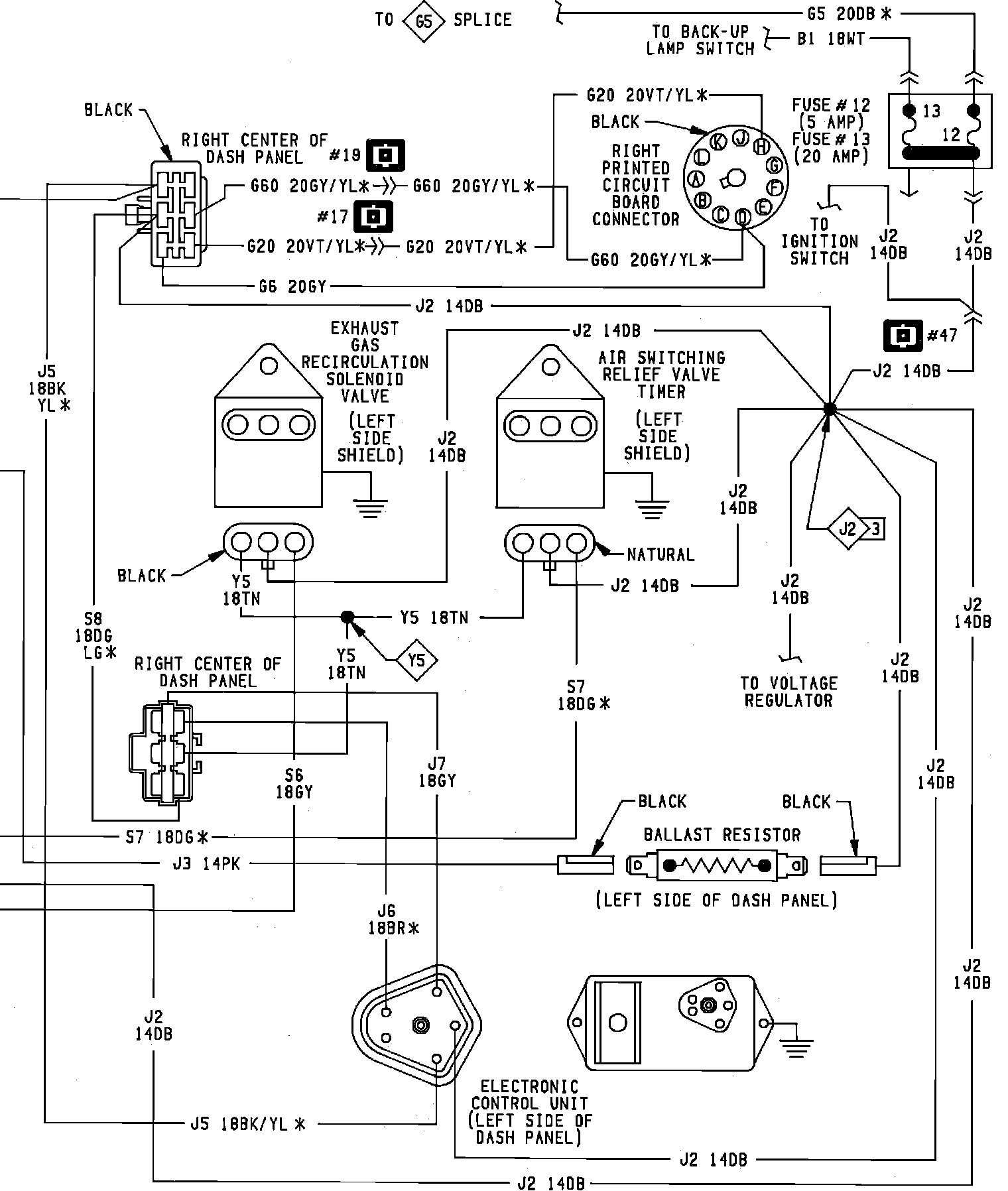

Ignition System Wiring Circuit. With Light Duty Emissions & Manual Trans.:
Ignition System Wiring Circuit. With Light Duty Emissions & Manual Trans.:
