Dodge or Ram Truck
>>
1988
>>
W350 1 Ton Pickup 4WD V8-360 5.9L VIN 1 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Radio/Stereo
>>
With Two Speakers
With Two Speakers

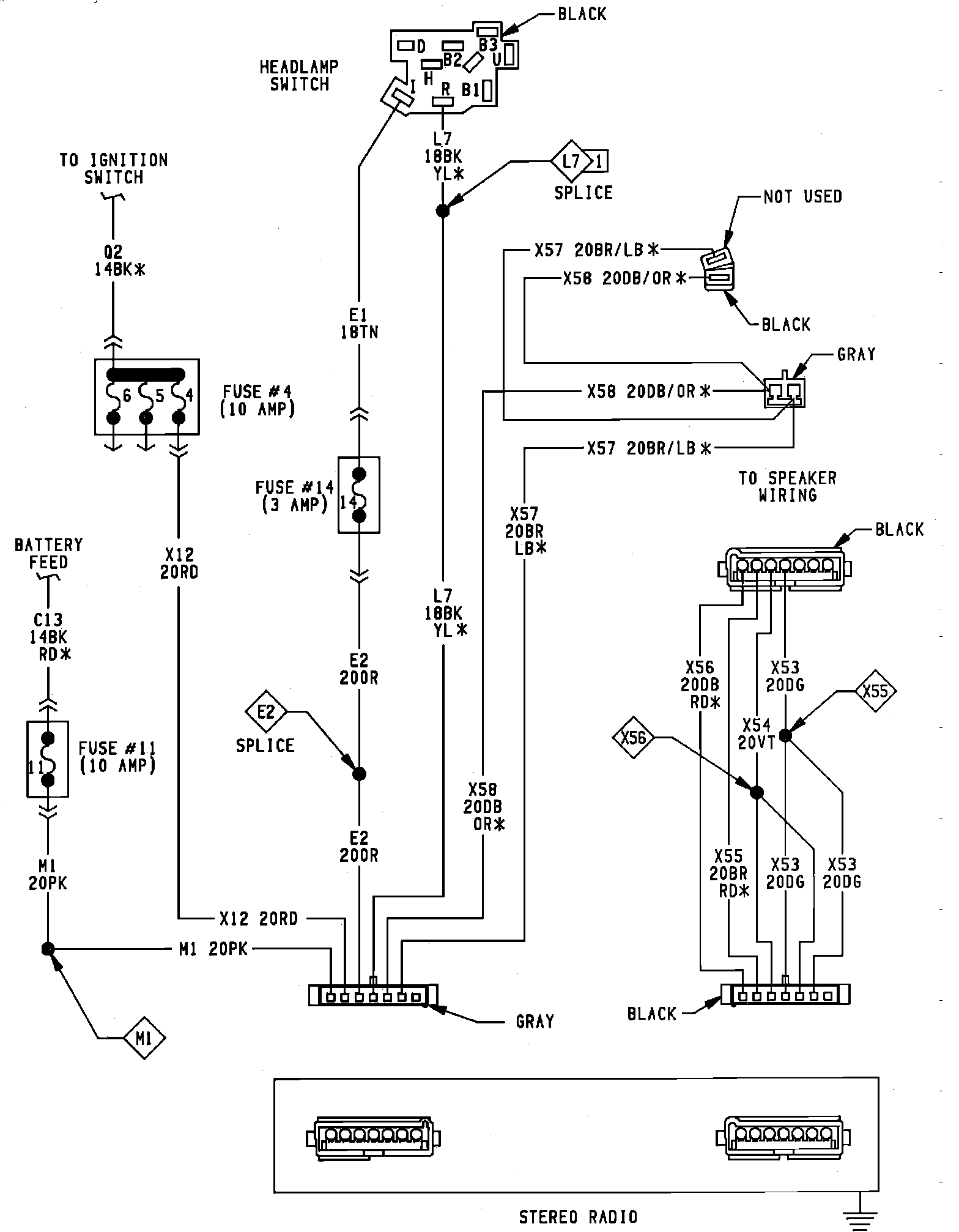

Radio Wiring Circuit. Stereo With Dual Speakers:
