Trim Panel: Service and Repair

Left Side Trim Panel And Air Vent:

Right Side Trim Panel:

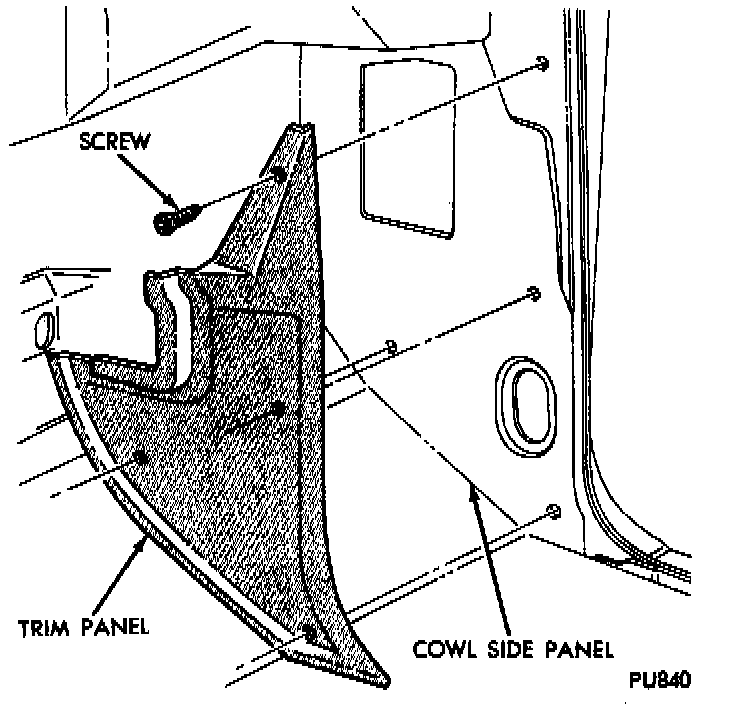

COWL SIDE TRIM PANEL
The trim panel is secured to the cowl side panel with screws. Refer to the illustrations for screw locations.

Left Side Trim Panel And Air Vent:

Outside Air Vent:

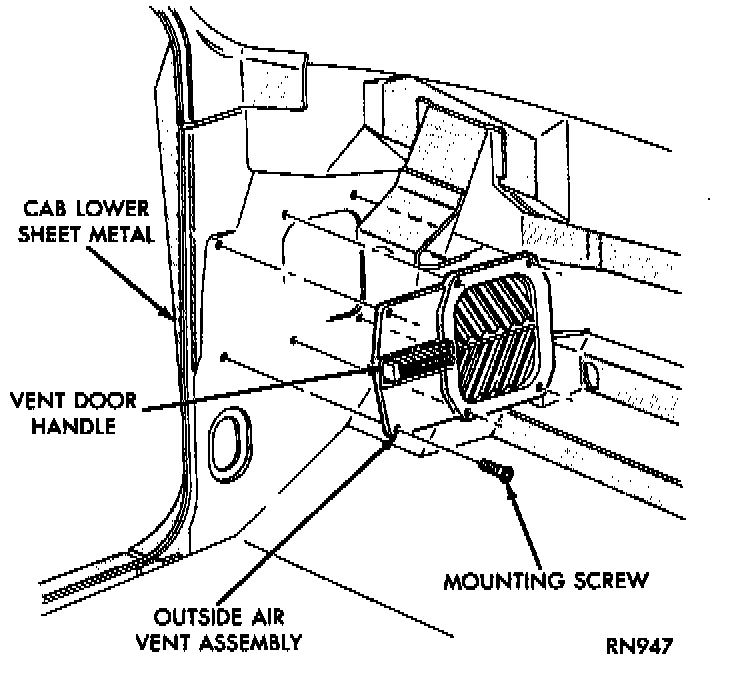

OUTSIDE AIR VENT
The air vent is mounted on the lower side cowl (Drivers side) with mounting screws. To operate the vent push or pull handle located on the vent assembly. To remove vent assembly, remove screws and remove assembly. To install vent assembly, place assembly into position and secure with mounting screws.

Interior Trim:

Interior Trim - Club Cab:

INTERIOR TRIM
The side trim right and left is mounted with screws to the side panel interior. The floor mat or carpet overlaps the bottom edge of the trim panel. Refer to figures above for removal or installation of the side trim panel.

When removing a trim panel that is overlapped by an adjoining panel, loosen or remove the end attaching screw to prevent possible damage to both panels.

To assure correct alignment when installing the trim panels, install the screws finger tight, align the panels at each end and tighten the screws. Use care not to overtighten the screws or the trim panels will be damaged.

Storage Tray:

STORAGE TRAY
The storage tray is located behind the front seat on all pickups. The tray is secured to the floor pan by four screws.
