Home >> Dodge or Ram Truck >> 1988 >> D350 1 Ton Pickup 2WD V8-360 5.9L VIN 1 4-bbl >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Transmission Disassembly/Assembly >> NP 2500 5 Speed Overdrive >> Countershaft Gear Endplay

Countershaft Gear Endplay

Refer to endplay procedure for proper shim to be installed to obtain a 0.001-0.005 inch countershaft gear endplay.

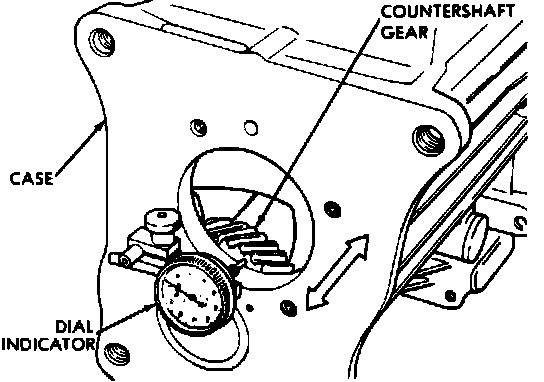

Fig. 75 Countershaft gear endplay:






Fig. 63 Removing front bearing cone & select shim chart:
