Home >> Dodge or Ram Truck >> 1988 >> D350 1 Ton Pickup 2WD V8-360 5.9L VIN 1 4-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Light Duty Emissions >> Part 1 of 2

Part 1 of 2

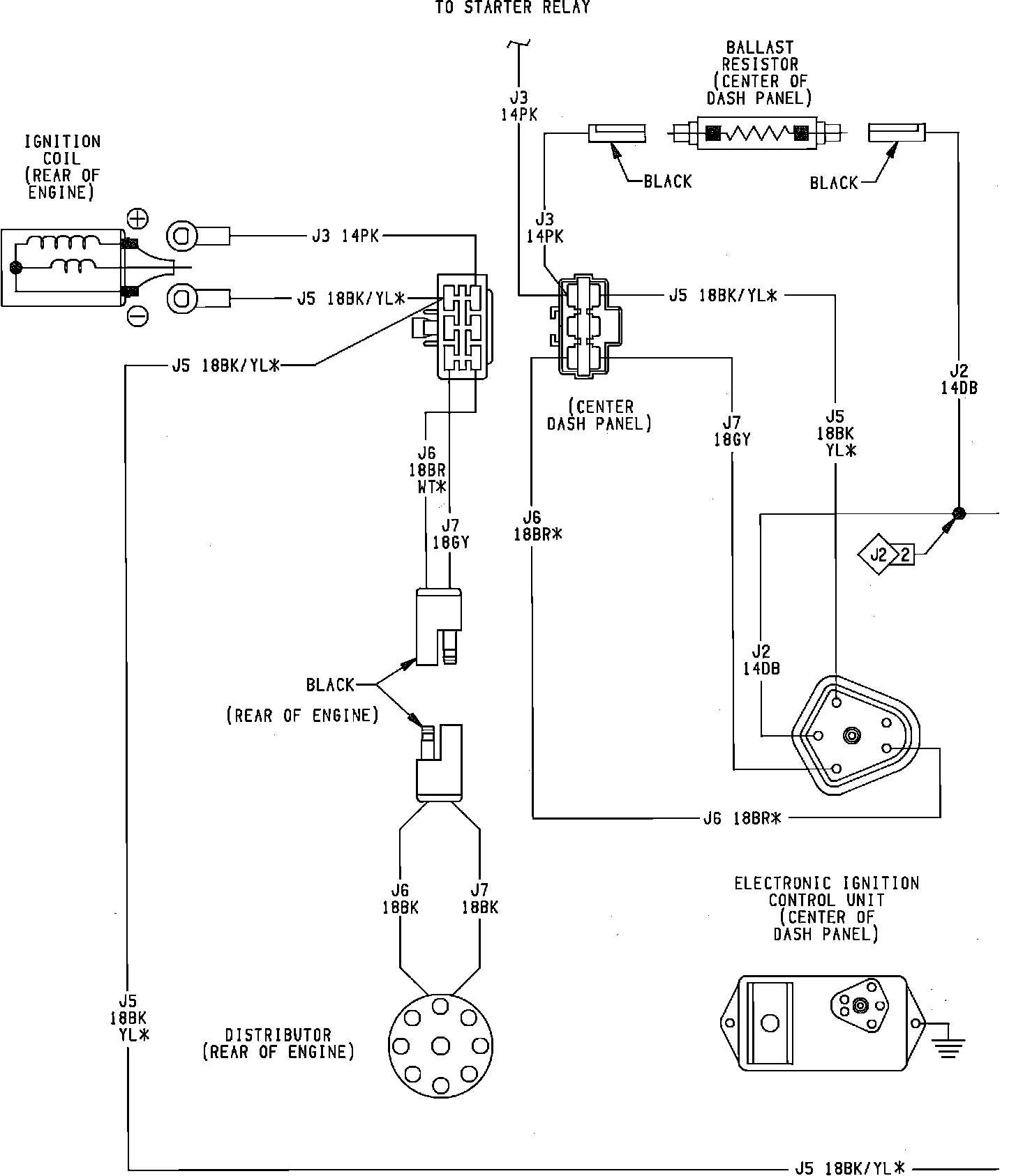

Ignition System Wiring Circuit. California:
