Home >> Dodge or Ram Truck >> 1988 >> D350 1 Ton Pickup 2WD V8-360 5.9L VIN 1 4-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> With EFI

With EFI

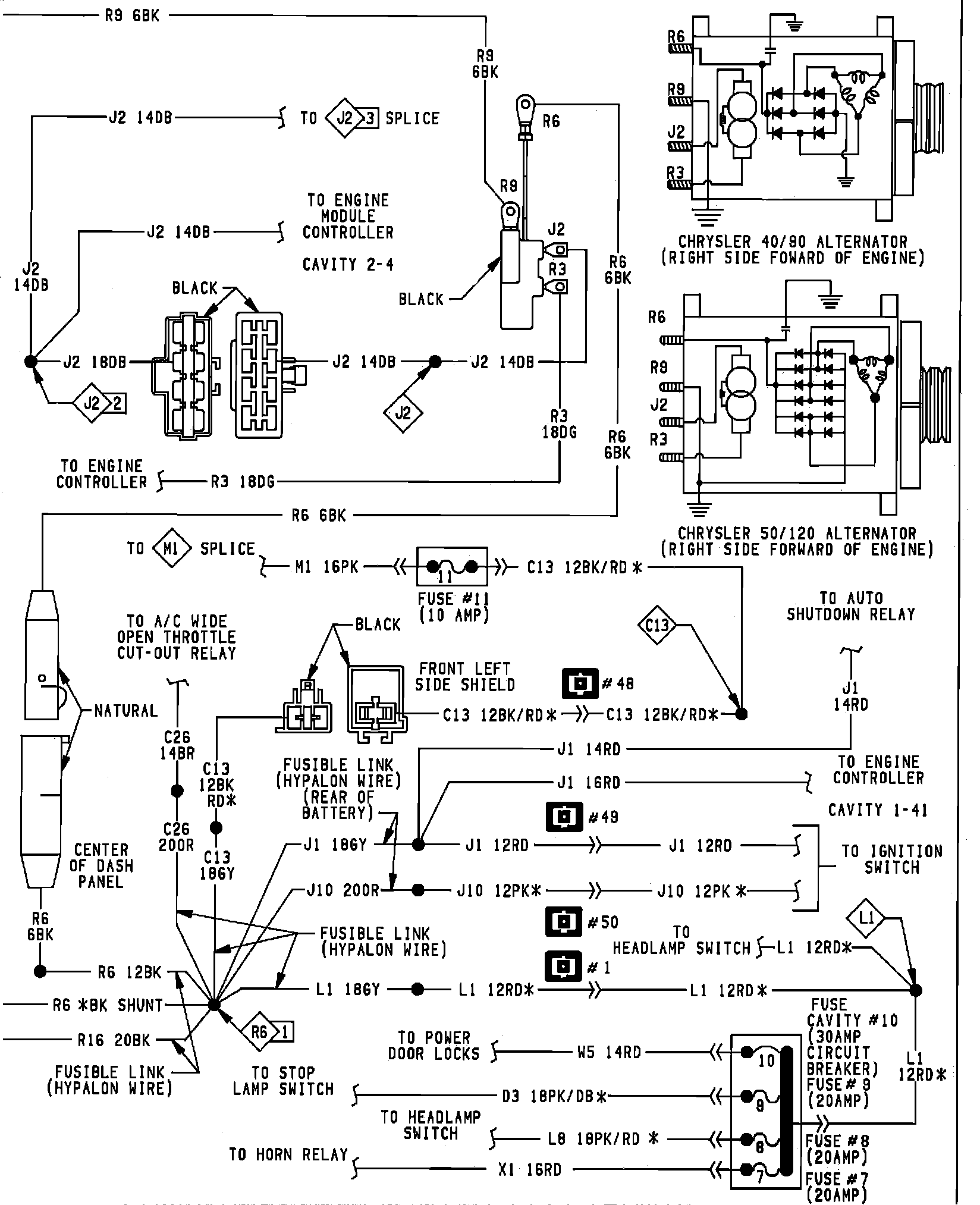

Charging System Wiring Circuit. With EFI:

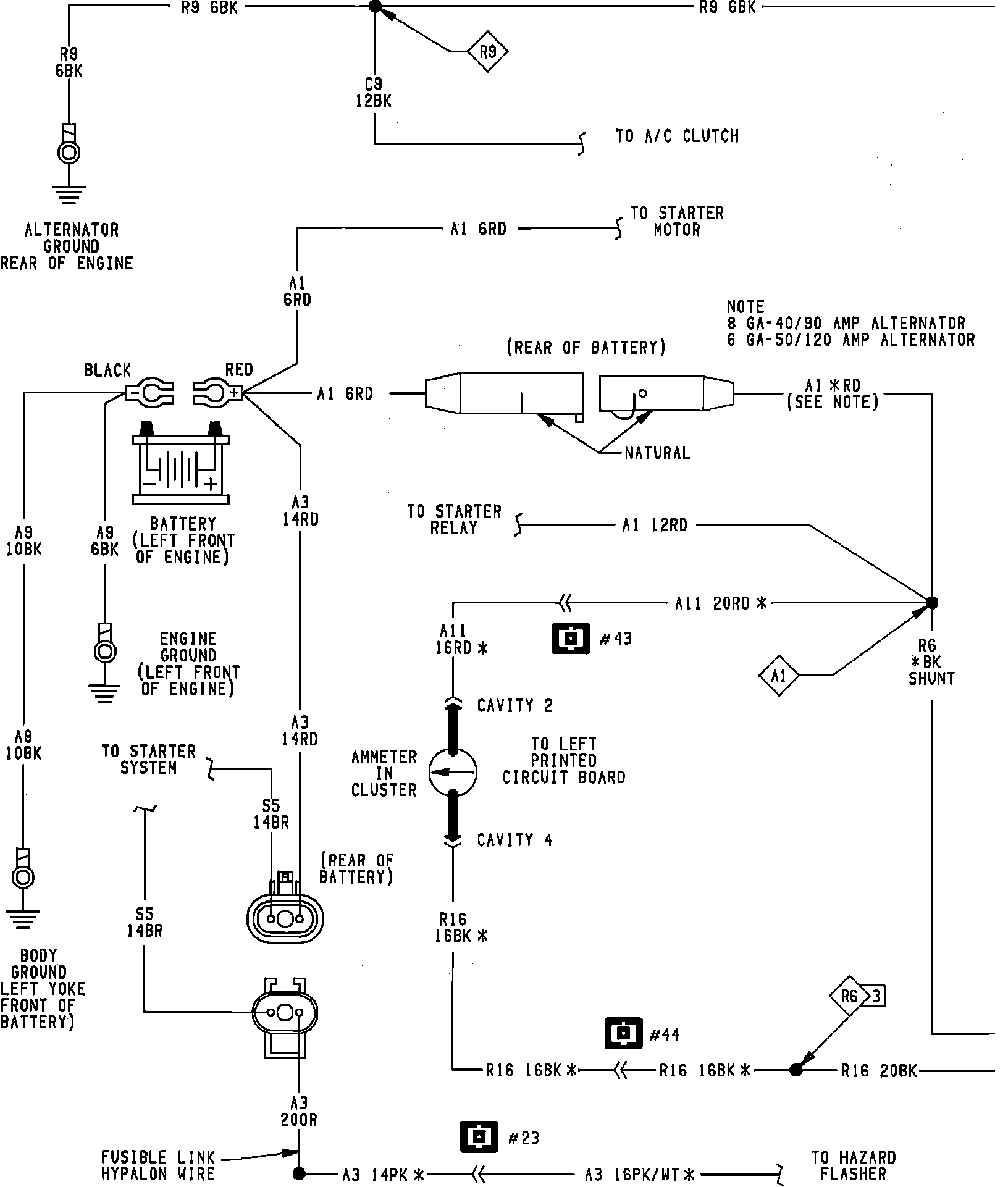

Charging System Wiring Circuit. With EFI:
