Home >> Dodge or Ram Truck >> 1988 >> D350 1 Ton Pickup 2WD V8-360 5.9L VIN 1 4-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuel Gauge >> Less EFI

Less EFI

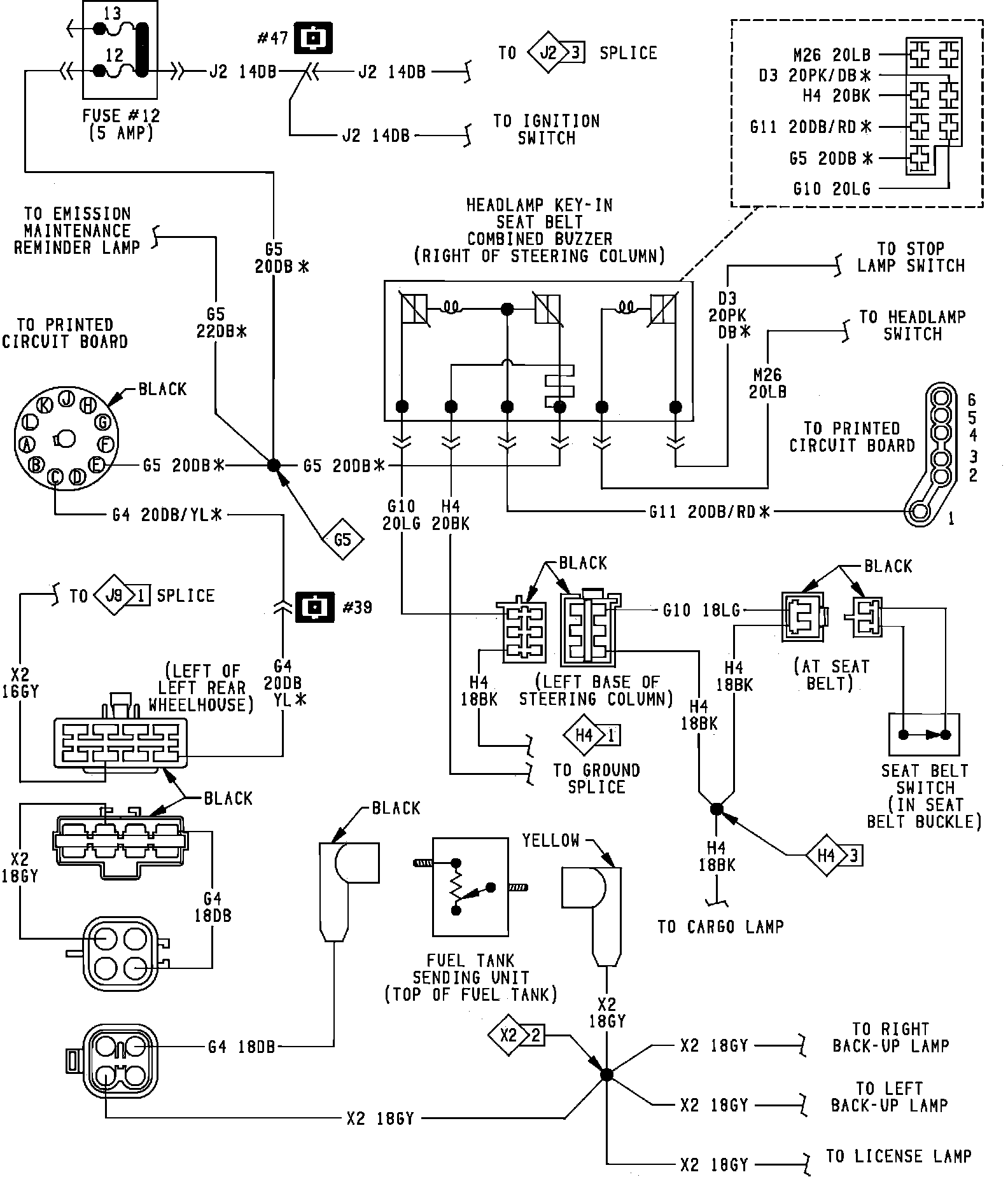

Fuel Gauge & Seatbelt Warning System Wiring Circuit. Less EFI:
