4 Speaker Stereo

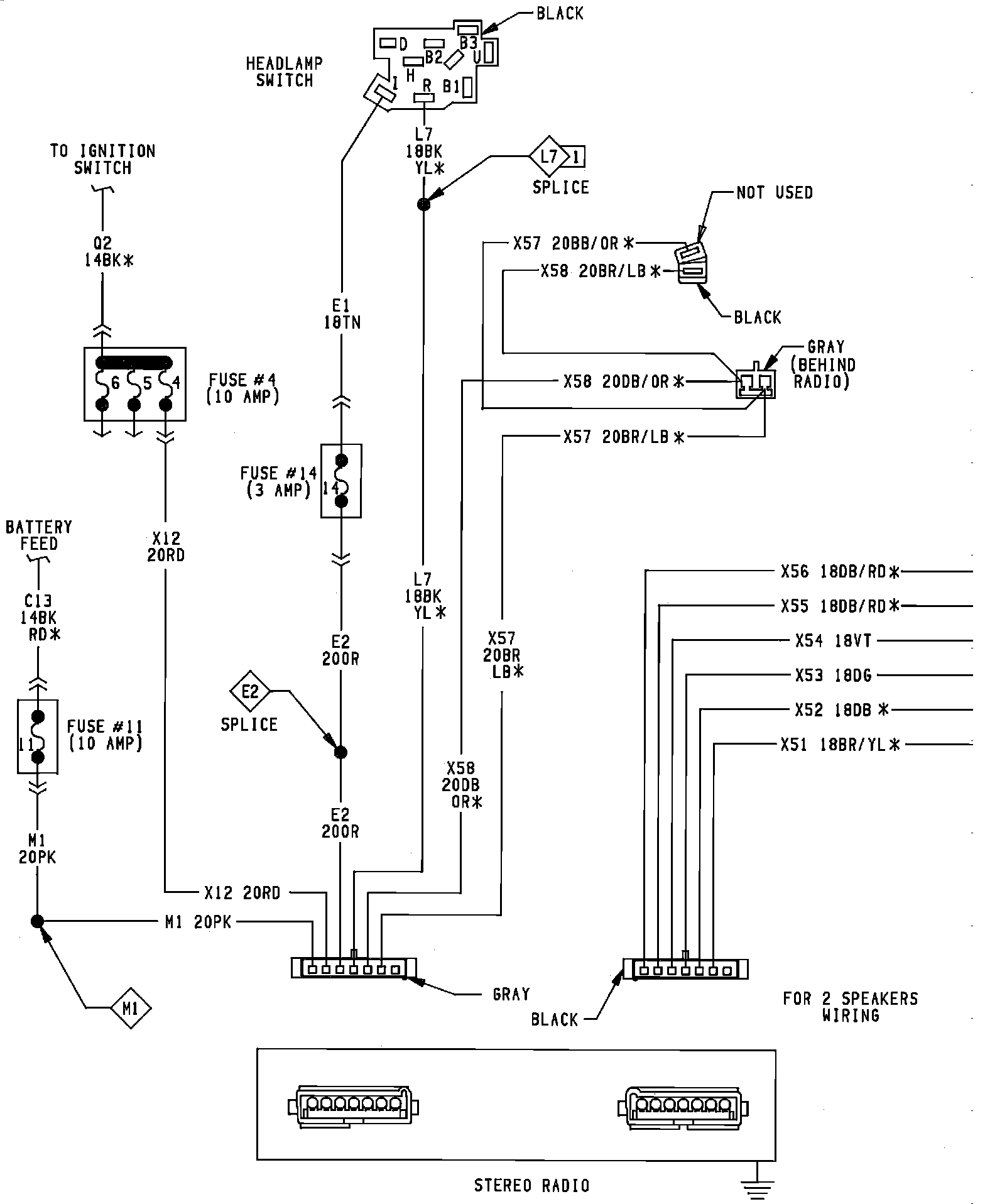

Radio Wiring Circuit. Stereo With Four Speakers:

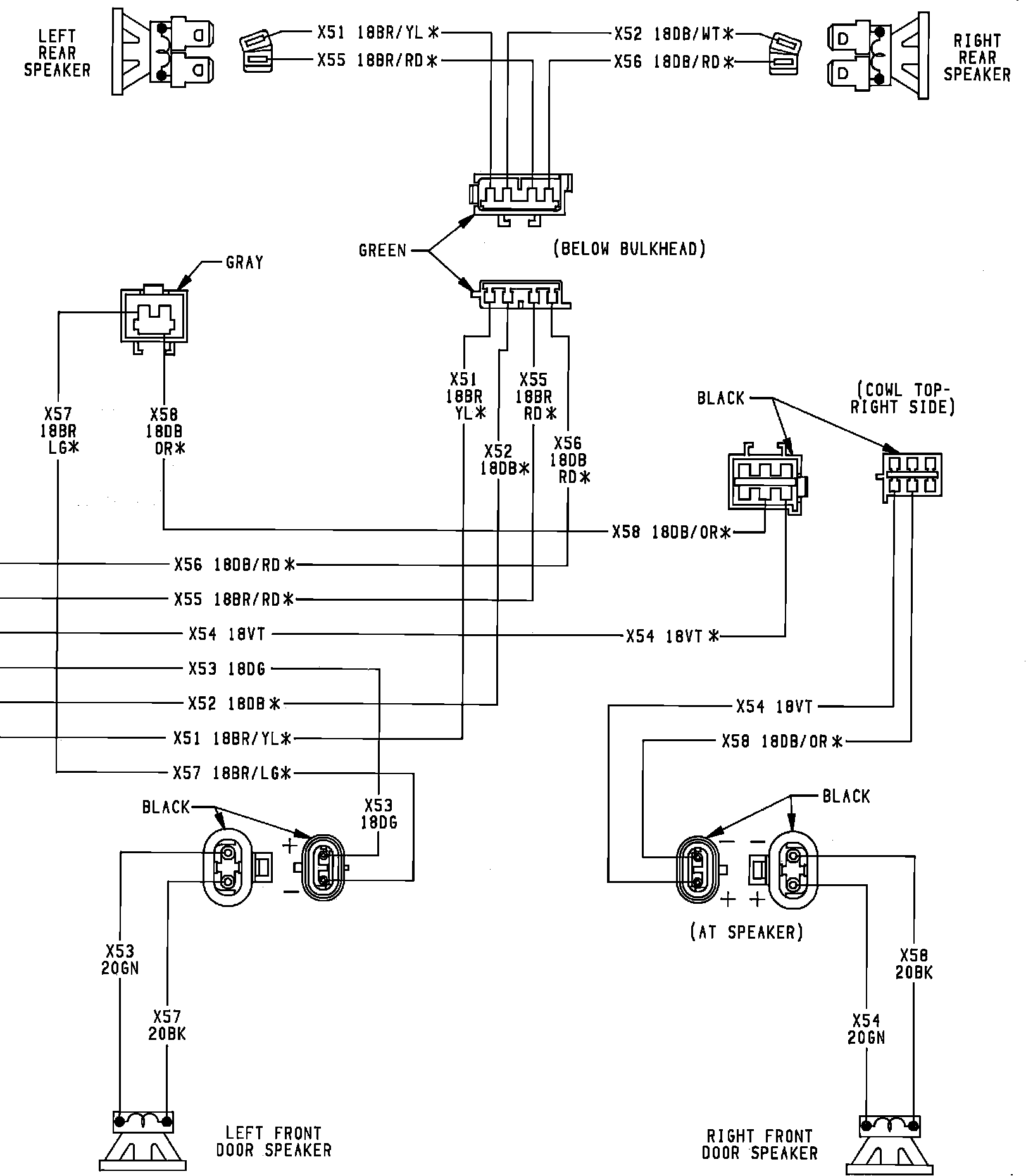

Radio Wiring Circuit. Stereo With Four Speakers:
