Power Door Lock Actuator: Service and Repair

Remove door trim panel(s).

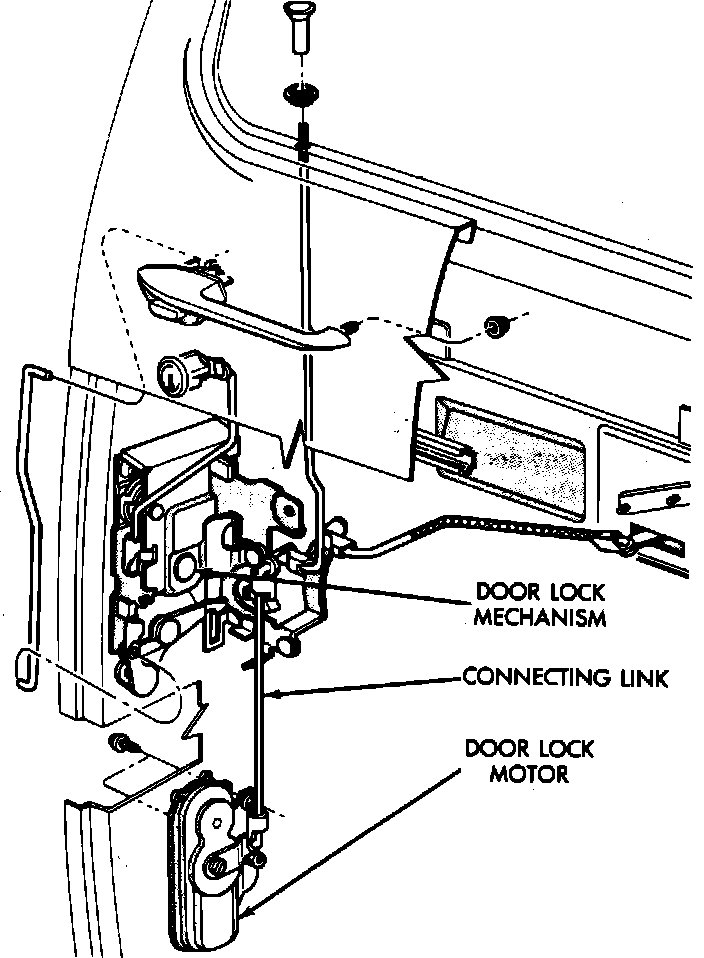

Door Lock Motor Replacement:

Unplug wire connector from door lock motor. Remove retaining clip from connecting link. Remove lock motor mounting bolts. Install new lock motor with original mounting bolts. Install link and retaining clip to door lock motor. Attach wire plug to lock motor and test power door lock system for proper operation. Install door trim panel(s).

NOTE: There is no adjustment necessary for the door lock motor.
