Home >> Dodge or Ram Truck >> 1983 >> W350 1 Ton Pickup 4WD V8-360 5.9L VIN 1 4-bbl >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drum Brake System >> Wheel Cylinder

Wheel Cylinder

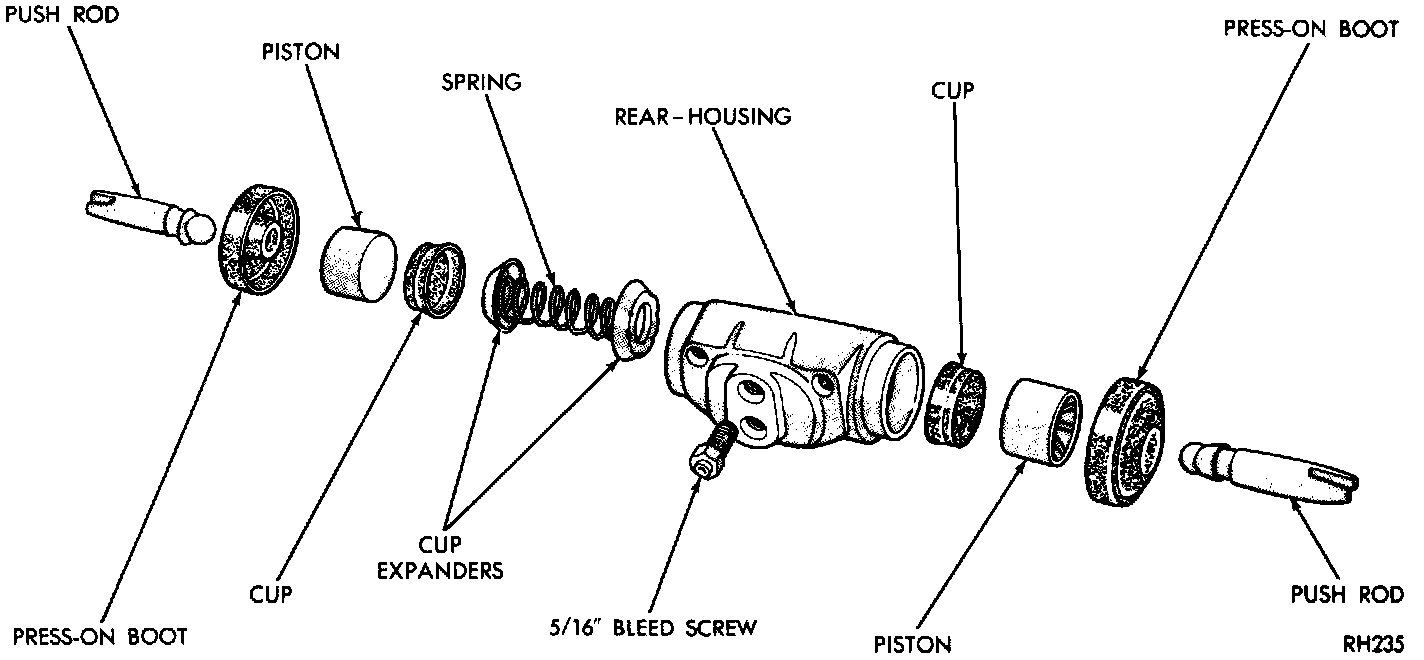

Fig 2 Rear Wheel Cylinder 11 And 12 Inch Brakes:
