With Dual Pick-Up Distributor
With Dual Pick-Up Distributor

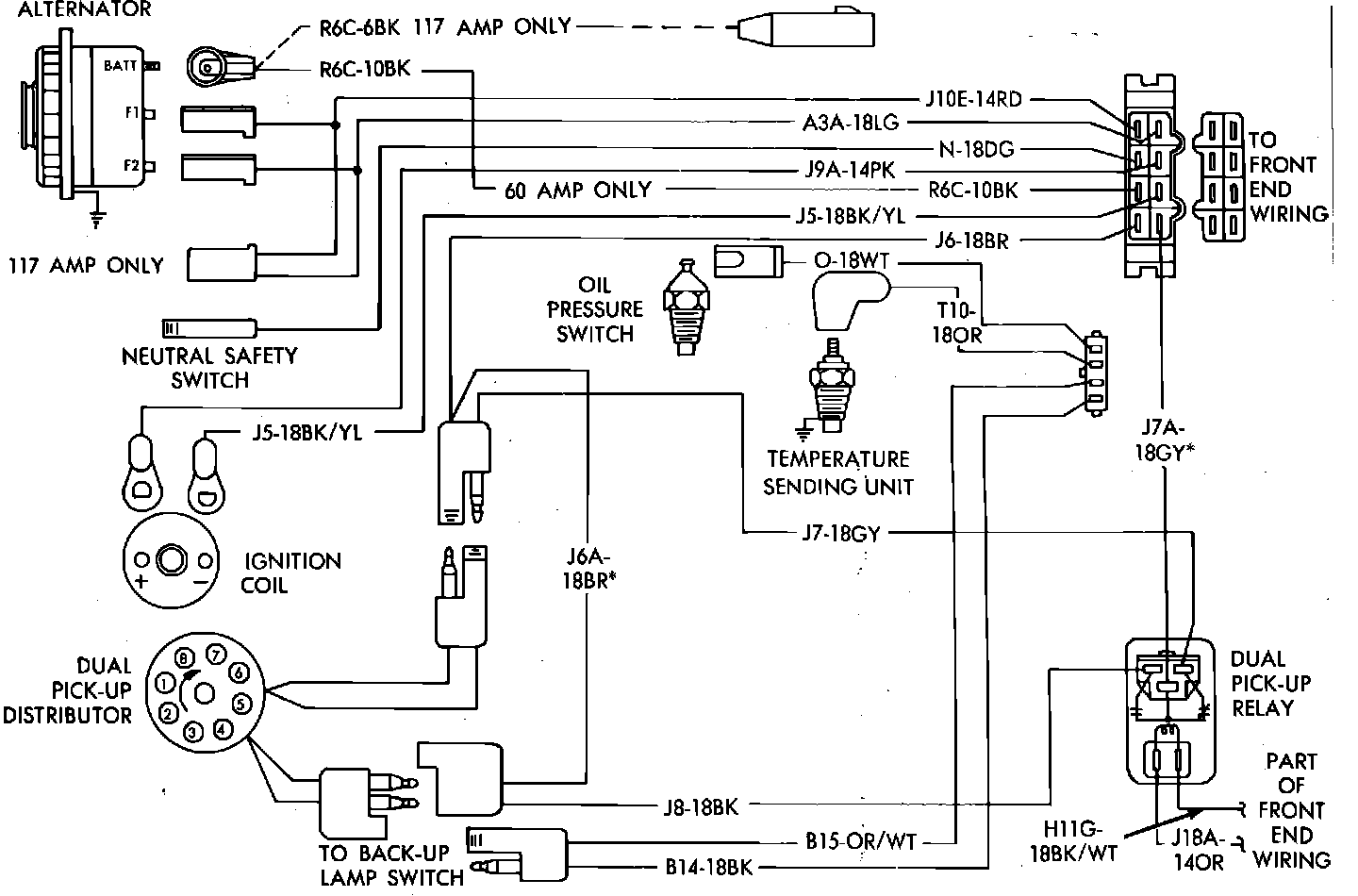

Fig. 20 Distributor Wiring Circuit (W/Dual Pick-Up). 1983-84:
