Rear Heater and A/C System
Rear Heater and A/C System

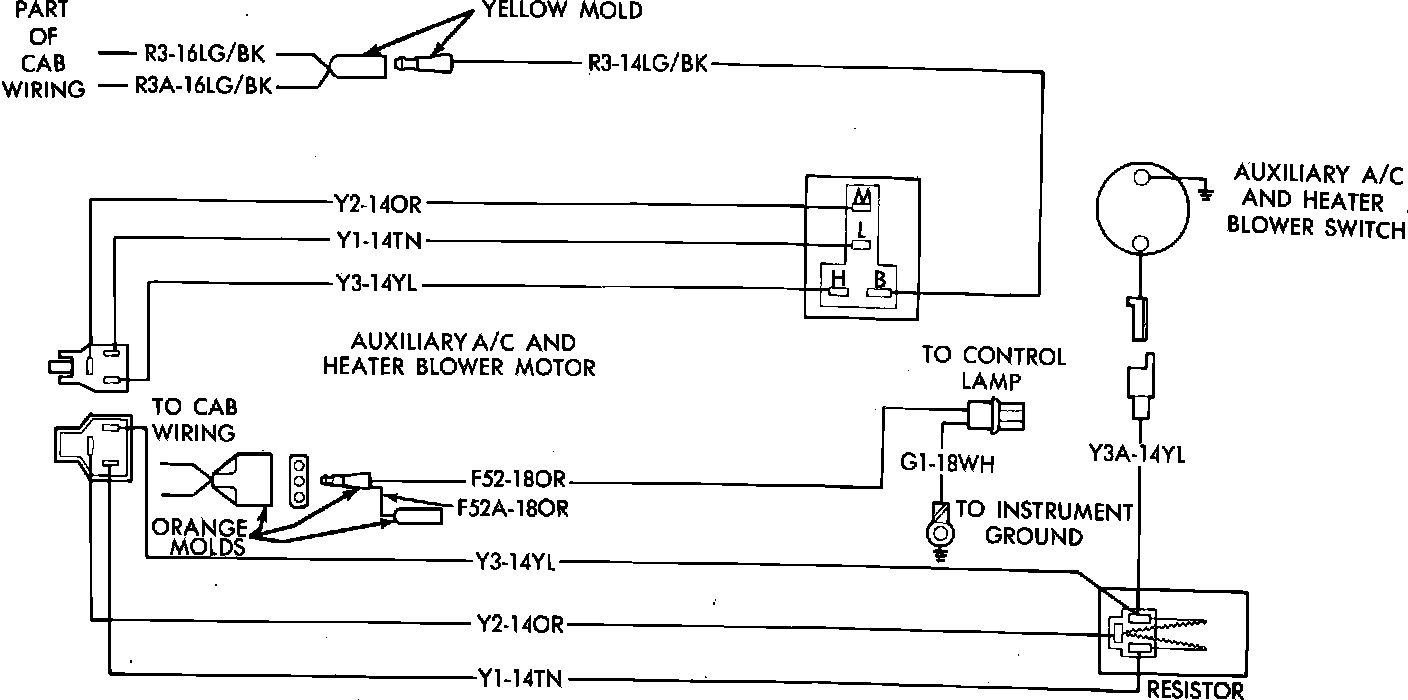

Fig. 7 Auxiliary Air Conditioning & Heater Wiring Circuit. 1983-84:
