Home >> Dodge or Ram Truck >> 1983 >> B350 1 Ton Van V8-360 5.9L VIN 1 4-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram >> With Feedback Carburetor >> Part 1 of 3

Part 1 of 3

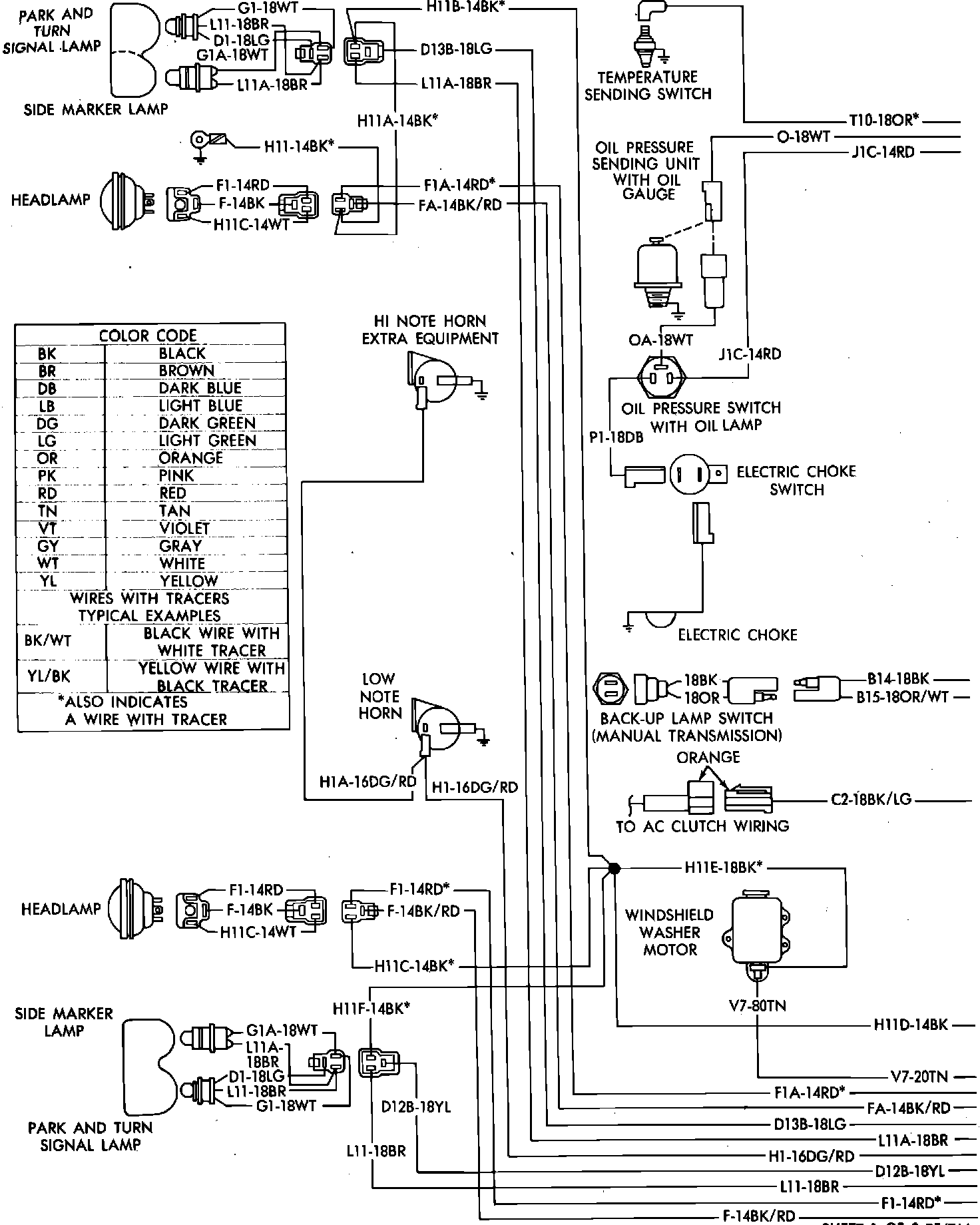

Fig. 34 Engine Compartment Wiring Circuit (W/Electronic Spark Advance With O(2) Feedback) 1983-84 (Part 1 of 3):

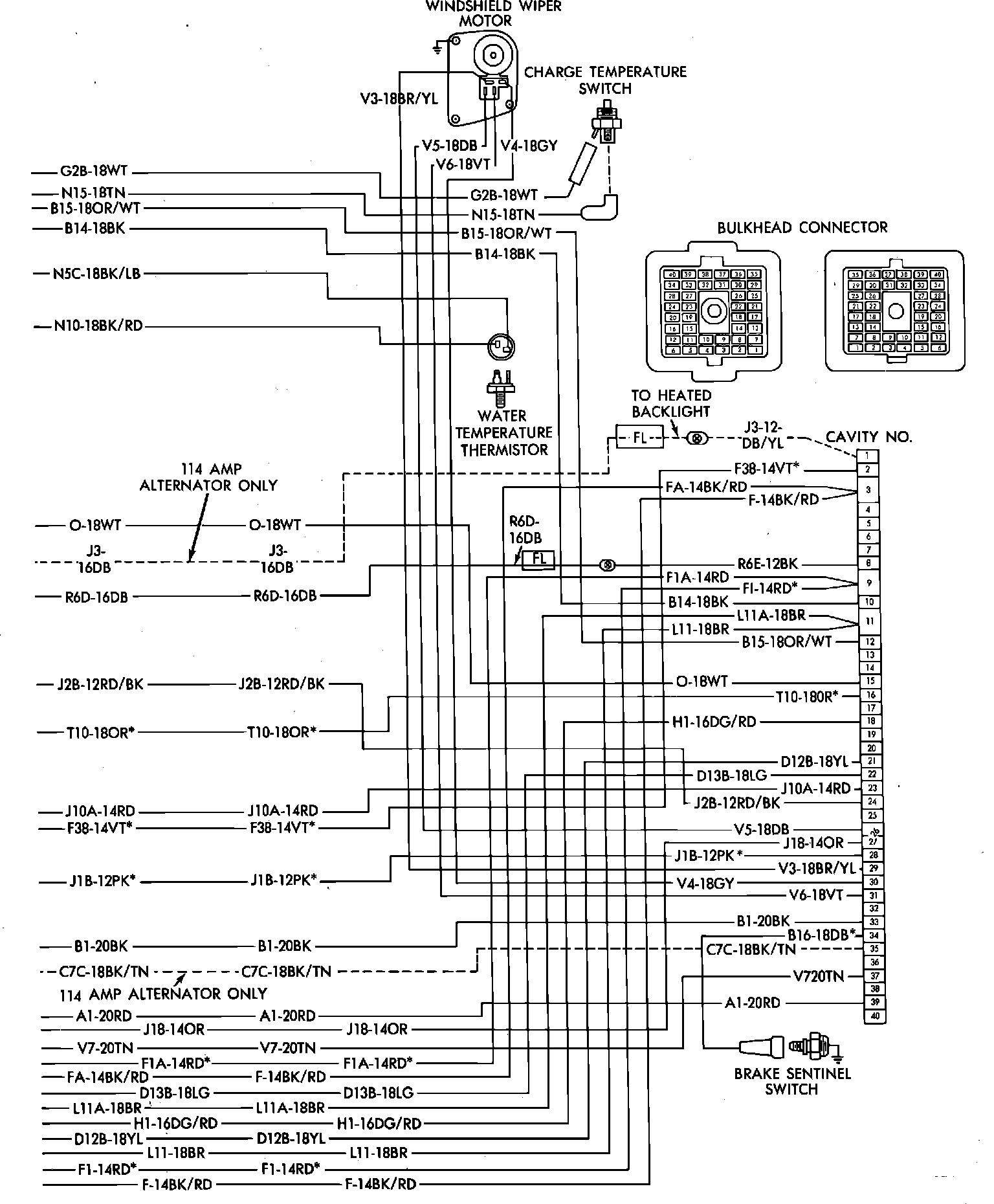

Fig. 34 Engine Compartment Wiring Circuit (W/Electronic Spark Advance With O(2) Feedback) 1983-84 (Part 2 of 3):

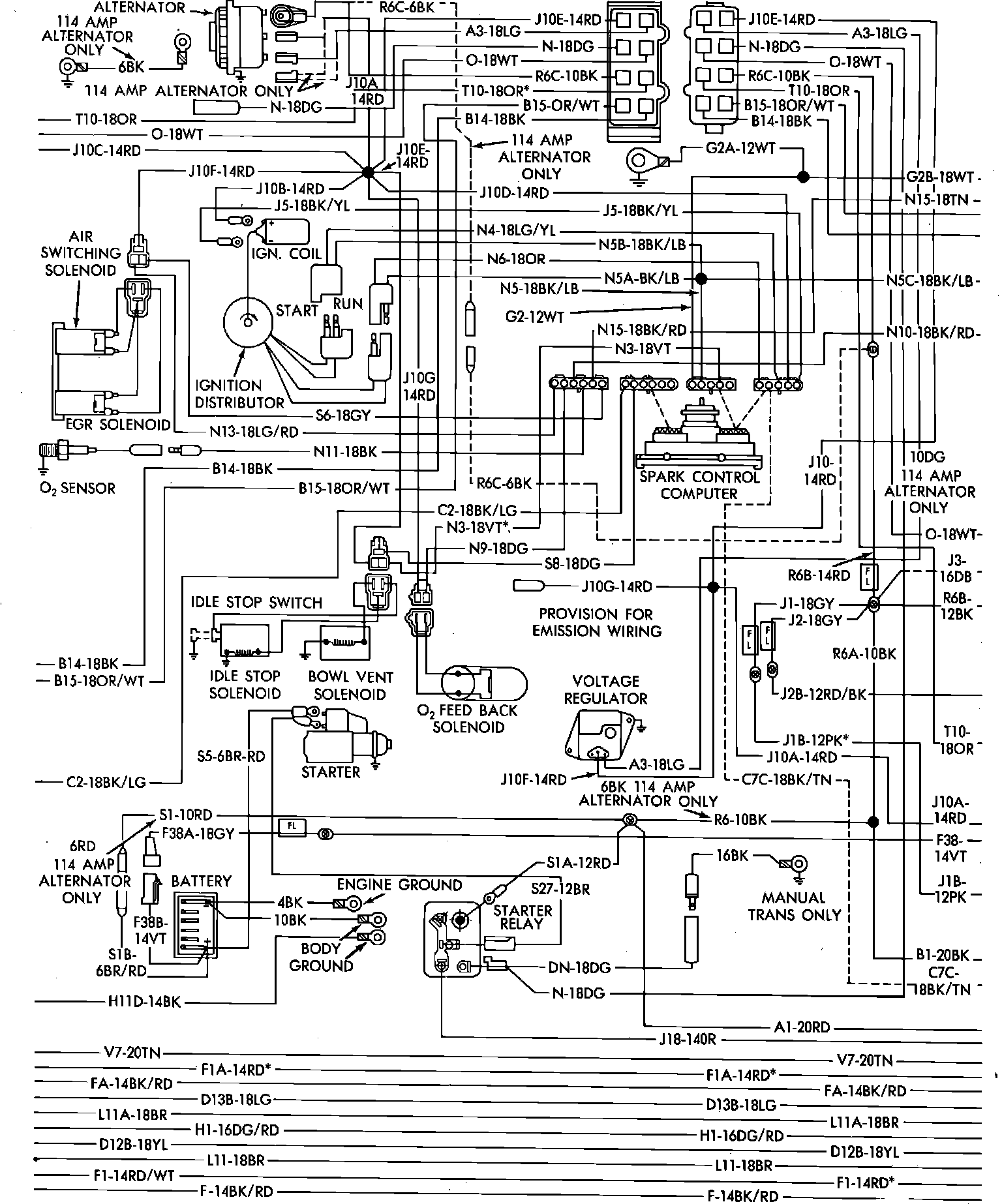

Fig. 34 Engine Compartment Wiring Circuit (W/Electronic Spark Advance With O(2) Feedback) 1983-84 (Part 3 of 3):
