B350 1 Ton Van V8-360 5.9L VIN 1 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
System Diagram
>>
Emission System
>>
Emission Control Light Duty Cycle
>>
4 Barrel Carburetor
4 Barrel Carburetor

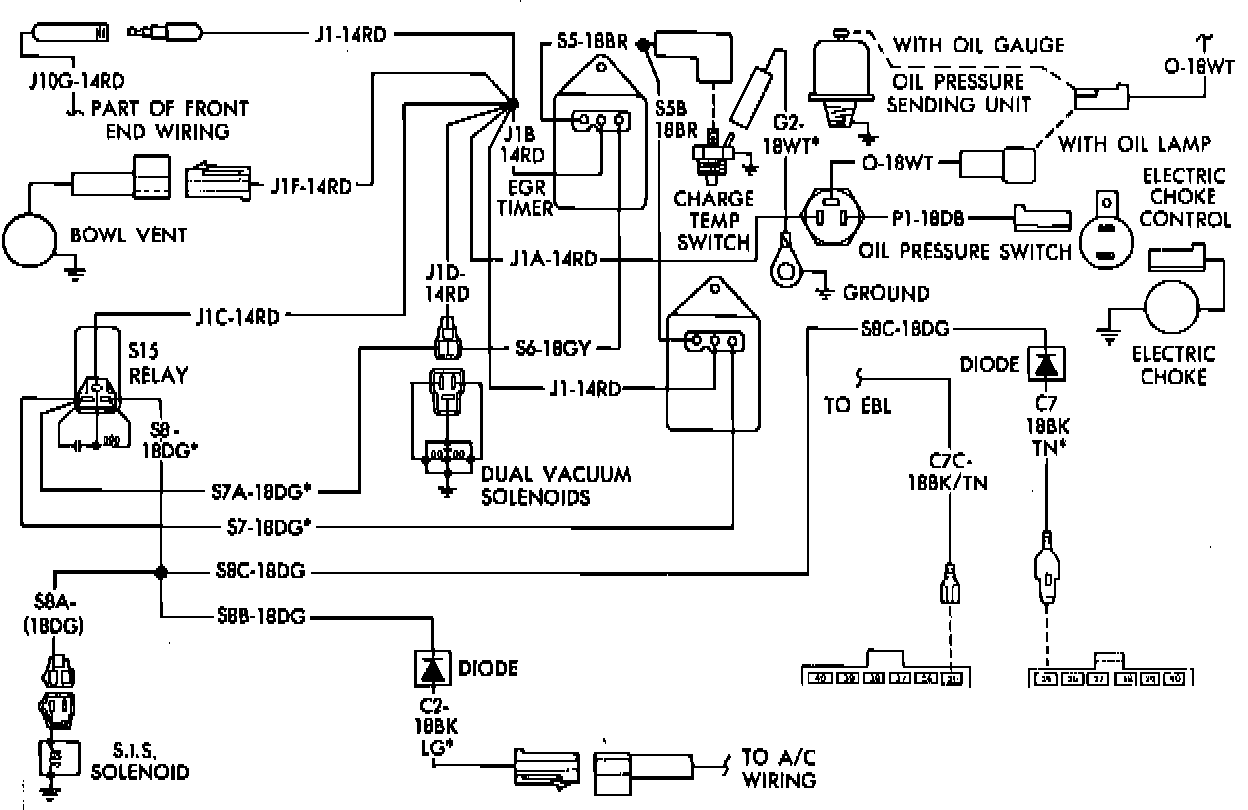

Fig. 28 Emission Control Wiring Circuit. 1983 W/4 BBL Light Duty Engine:

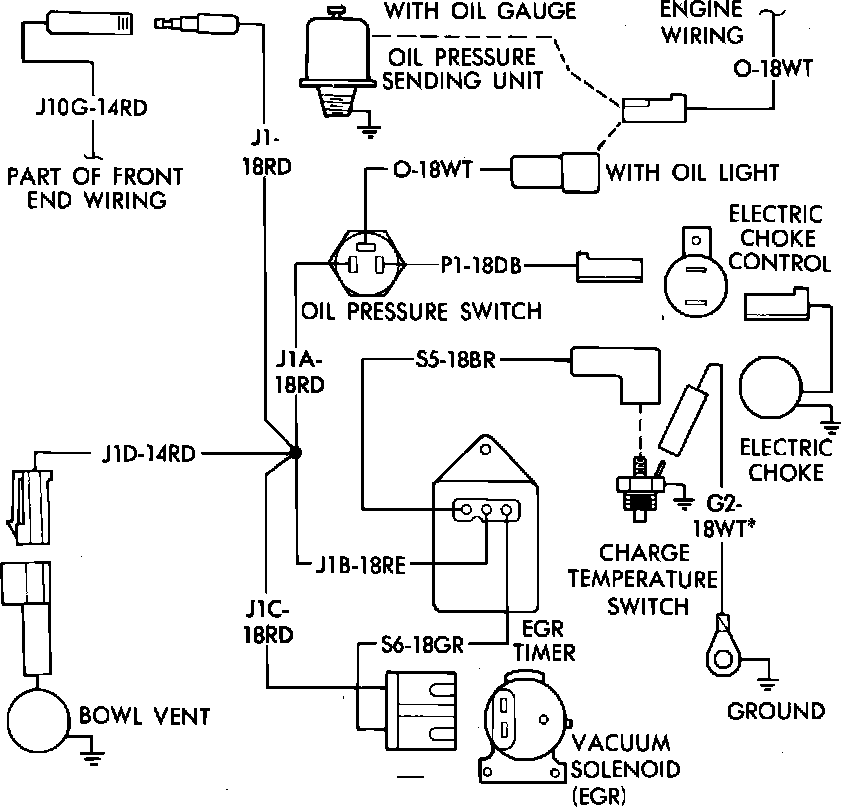

Fig. 29 Emission Control Wiring Circuit. 1984 W/4 BBL Light Duty Engine:
