Emission Maintenance Reminder Lamp Wiring Circuit

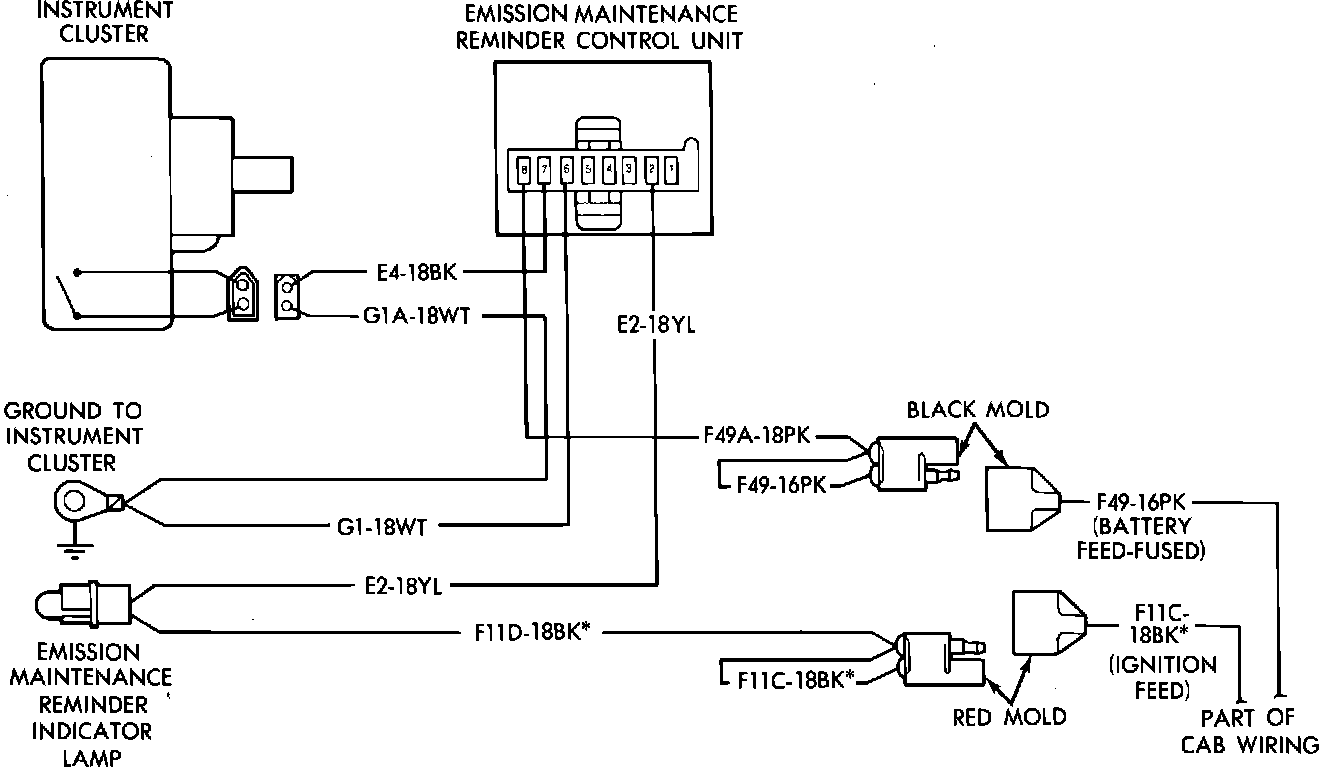

Fig. 31 Emission Maintenance Reminder System (If So Equipped). 1983-84:
