Home >> Daihatsu >> 1990 >> Charade L3-0993cc 1.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Troubleshooting

Troubleshooting

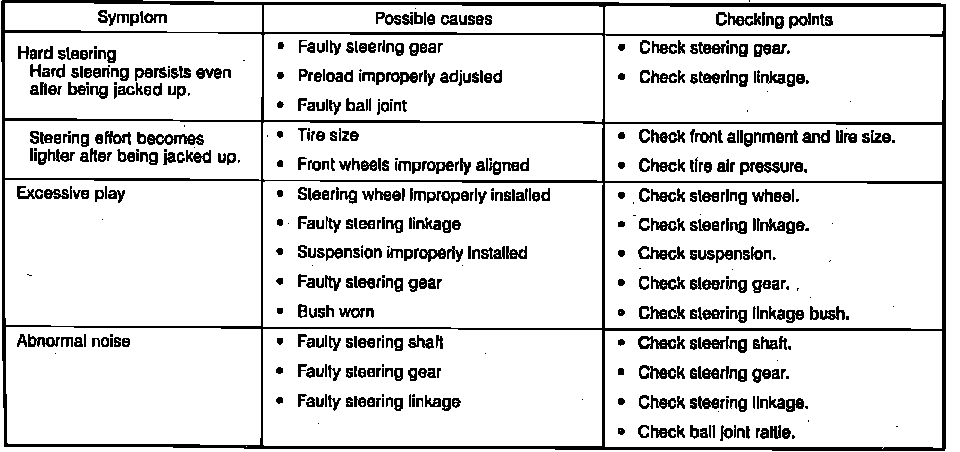

Fig. 1 Power Steering Troubleshooting:






Refer to Fig. 1, for troubleshooting procedure.
