Neutral Safety Switch: Testing and Inspection

Fig. 16 Neutral Start Switch Testing:

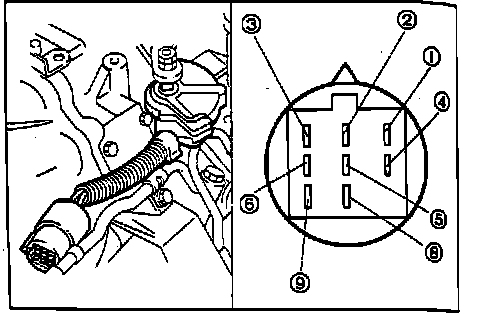

Fig. 17 Neutral Start Switch Connector:

Disconnect connector and using a suitable volt/ohmmeter ensure continuity exists between terminals as shown in Figs. 16 and 17.
