Hard or No Start/Cranks Normally

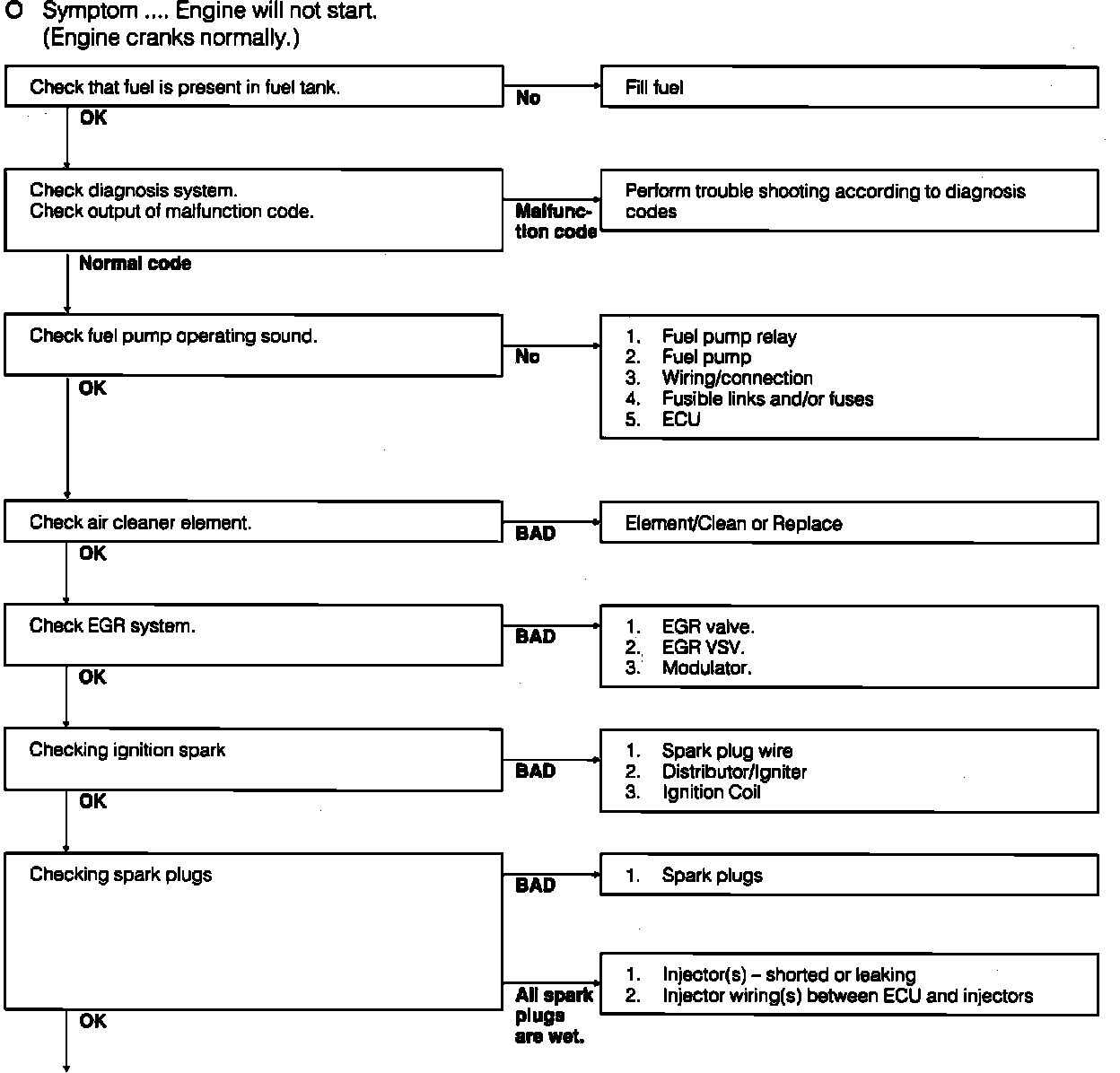

Fig. 16 Troubleshooting, Hard Or No Start/cranks Normally (Part 1 Of 2):

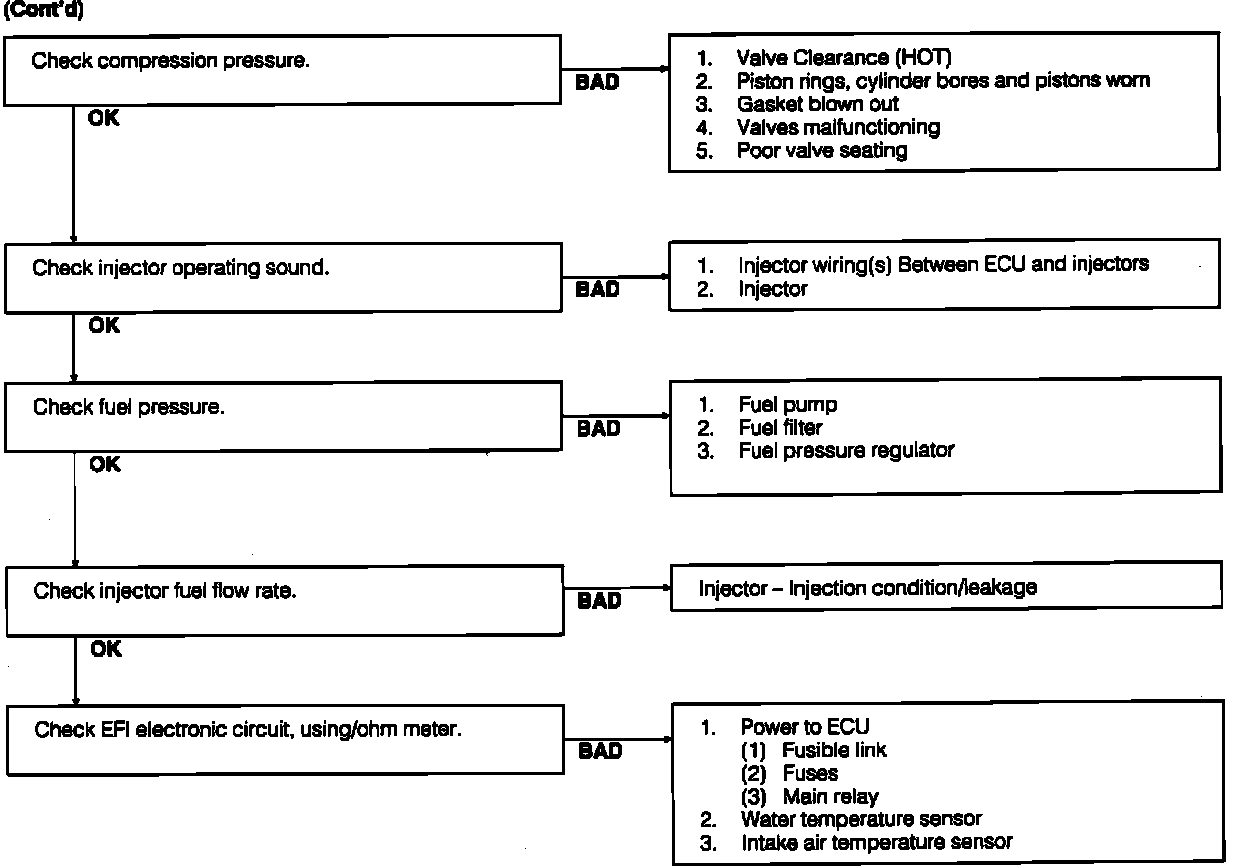

Fig. 16 Troubleshooting, Hard Or No Start/cranks Normally (Part 2 Of 2):
