Charade L3-0993cc 1.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Engine Stalls After Starting
Engine Stalls After Starting

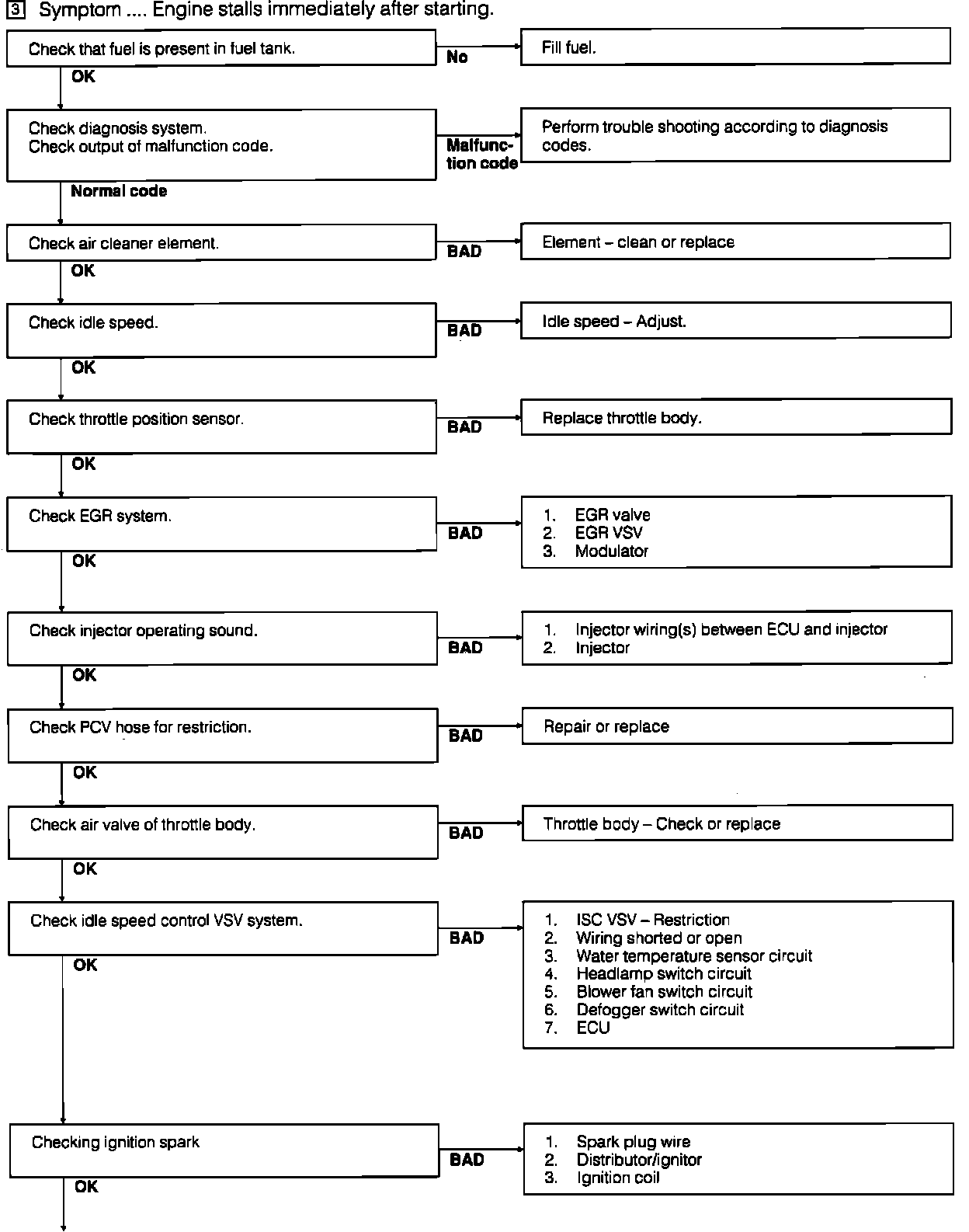

Fig. 17 Troubleshooting, Engine Stalls After Starting (Part 1 Of 2):

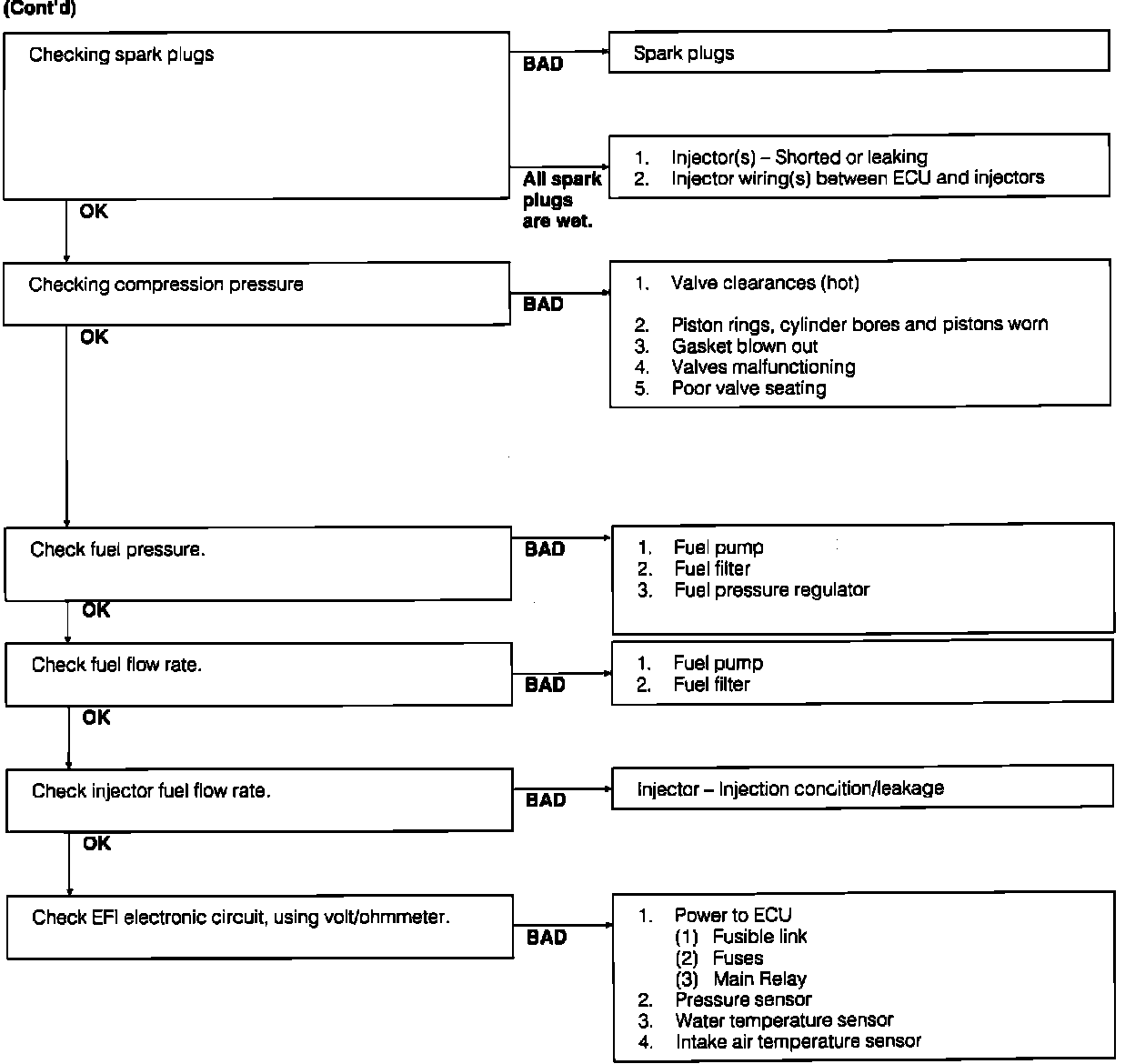

Fig. 17 Troubleshooting, Engine Stalls After Starting (Part 2 Of 2):
