Distributor: Testing and Inspection

1. Perform Distributor circuit test.

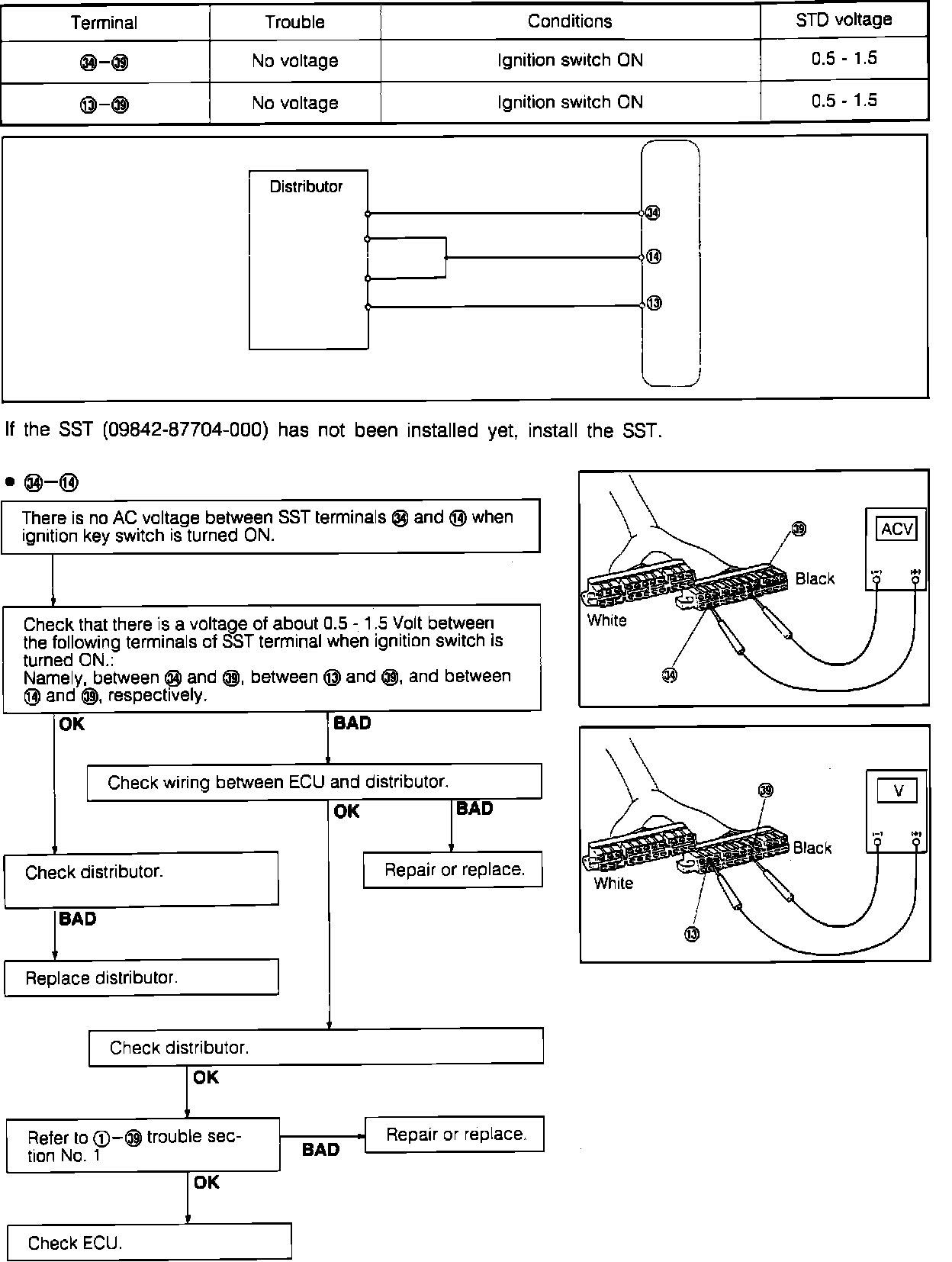

Fig. 47 ECU System Diagnosis, Distributor Check:
