Home >> Daihatsu >> 1990 >> Charade L3-0993cc 1.0L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Backfires

Engine Backfires

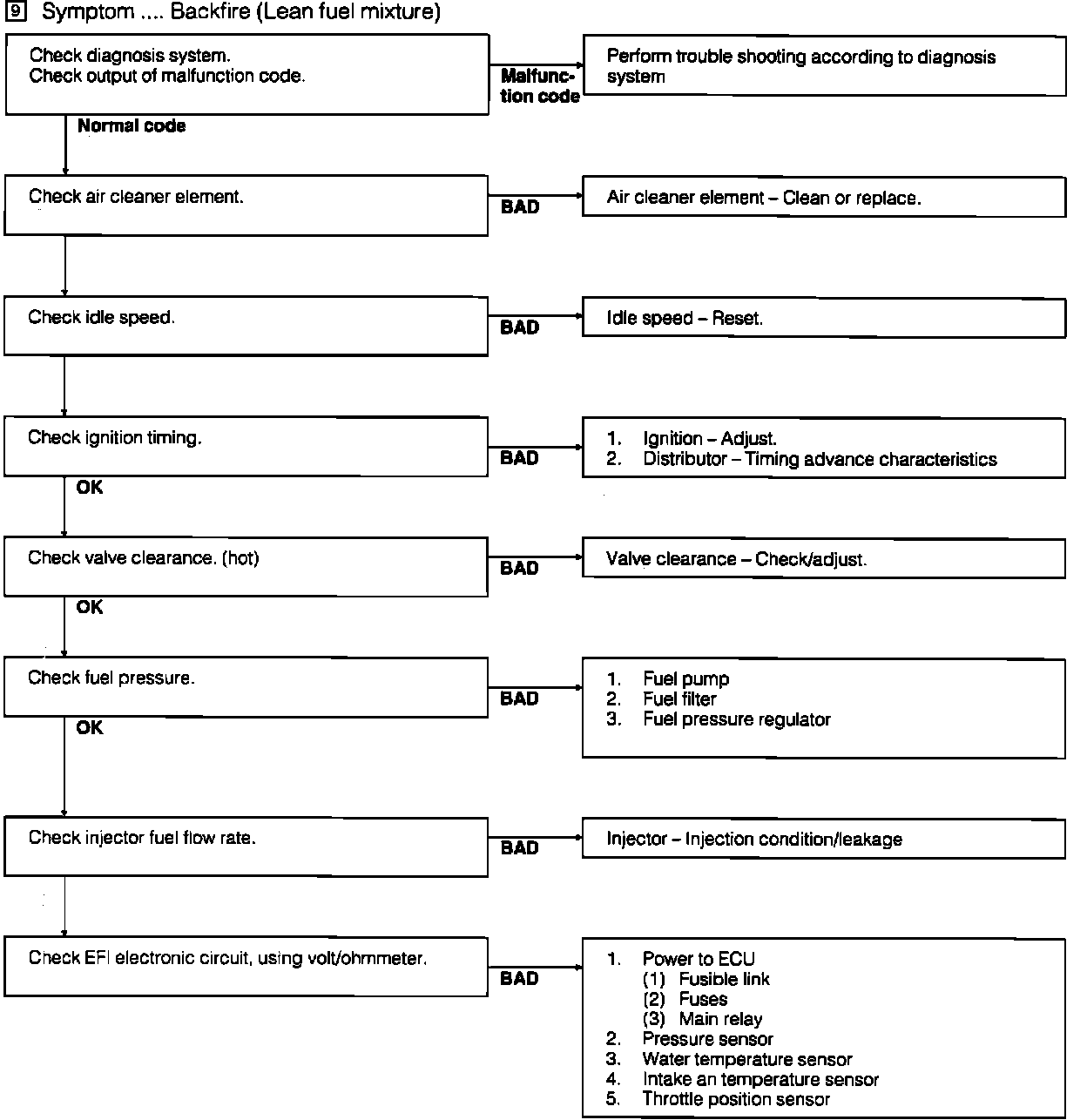

Fig. 23 Troubleshooting, Engine Backfires:
