Thermo Time Switch: Testing and Inspection

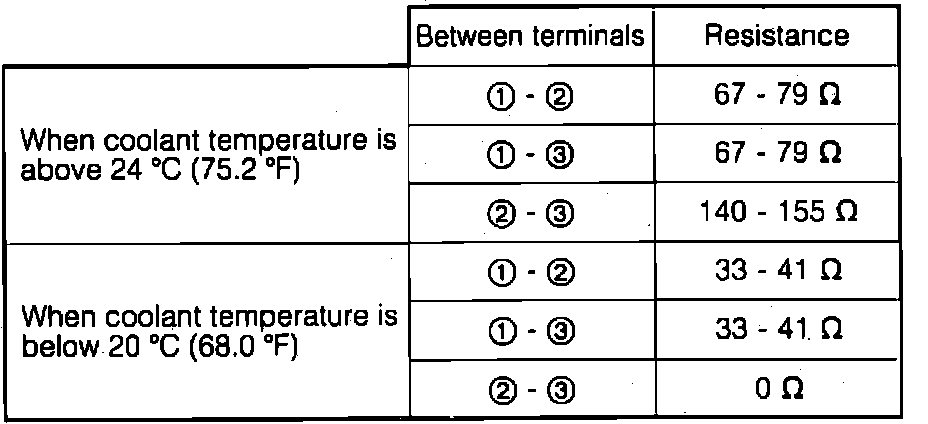

Fig. 10 Start Injector Time Switch Resistance Chart.:

Fig. 11 Start Injector Time Switch Pin Location.:

Refer to Figs. 10 and 11 for resistance specifications between terminals. Replace switch if resistance is not as specified.
