Pinout Values and Diagnostic Parameters

Refer to Figs. 34 through 35 for ECU wiring/connector conditions and operating voltages.

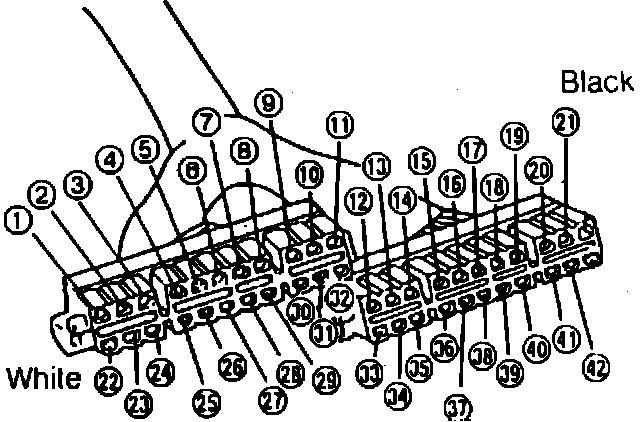

Fig. 34 ECU TEST HARNESS TERMINAL LOCATIONS:

Fig. 34 ECU Test Harness Terminal Locations:

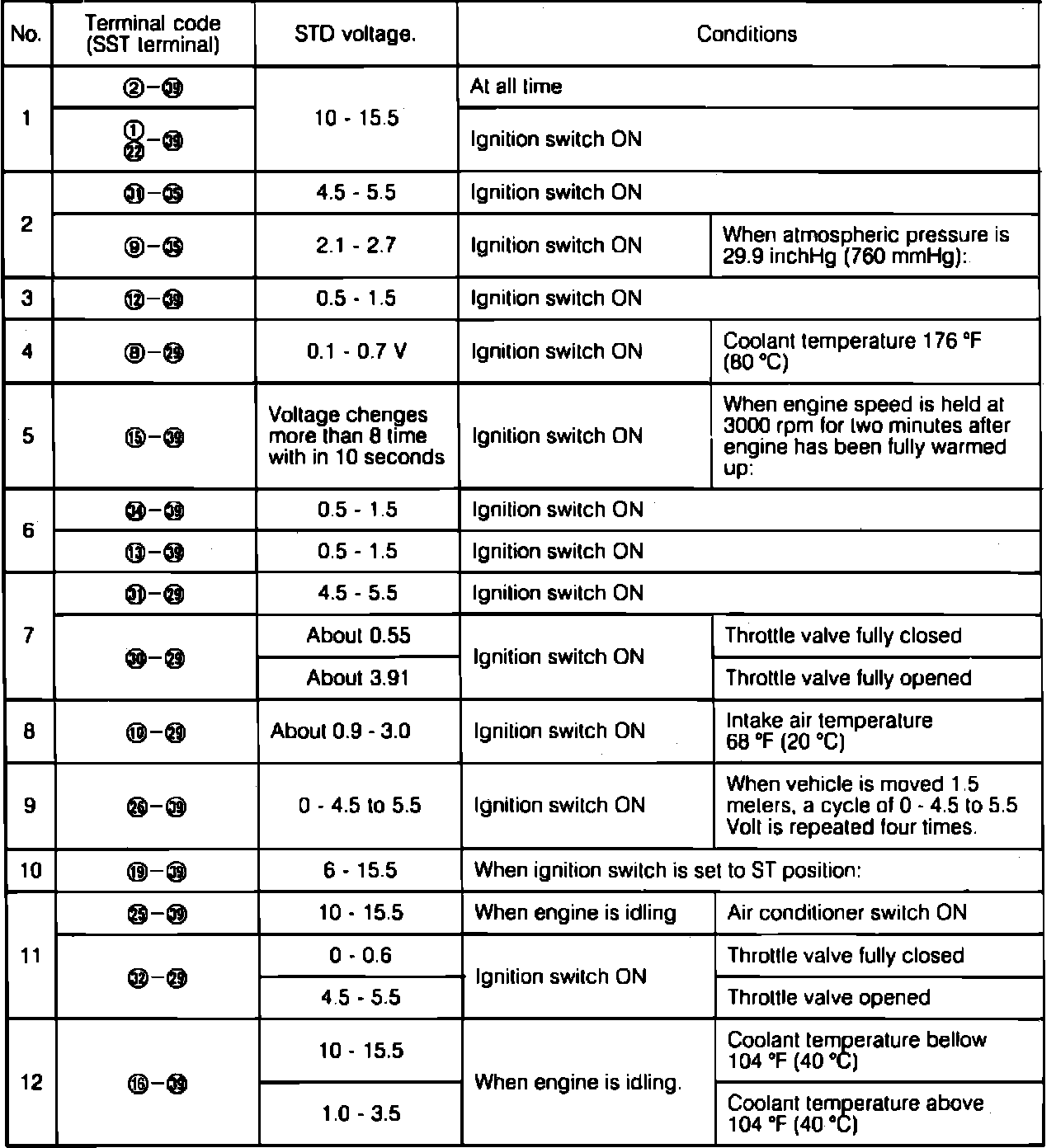

Fig. 35 ECU TERMINALS STANDARD VOLTAGE:

Fig. 35 ECU Terminals Standard Voltage:
