Brake Light Switch: Testing and Inspection

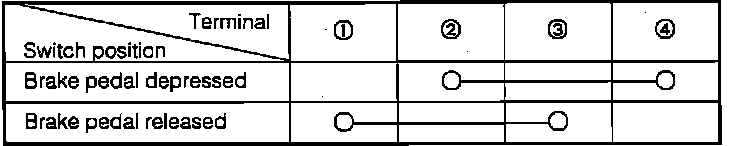

Fig. 14 Stop Lamp Switch Testing:

Fig. 15 Stop Lamp Switch Connector:

Disconnect connector and using a suitable volt/ohmmeter ensure continuity exists between terminals as shown in Figs. 14 and 15.
