Piston Pin: Service and Repair

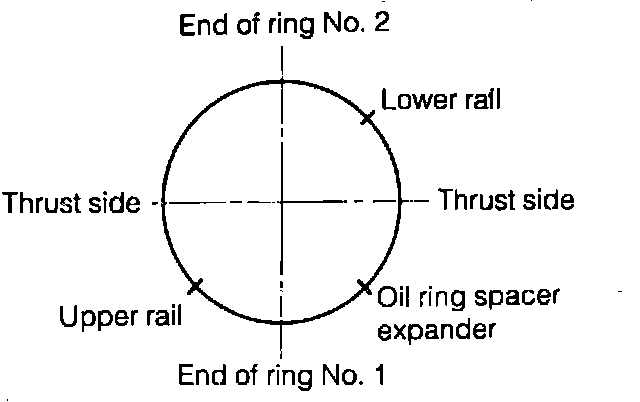

Fig. 34 Piston Ring Installation:

Piston and rings are available in standard size and oversizes of .25 and .50 inch. Install compression rings with stamped mark facing upward. Arrange ring on pistons as shown in Fig. 34.
